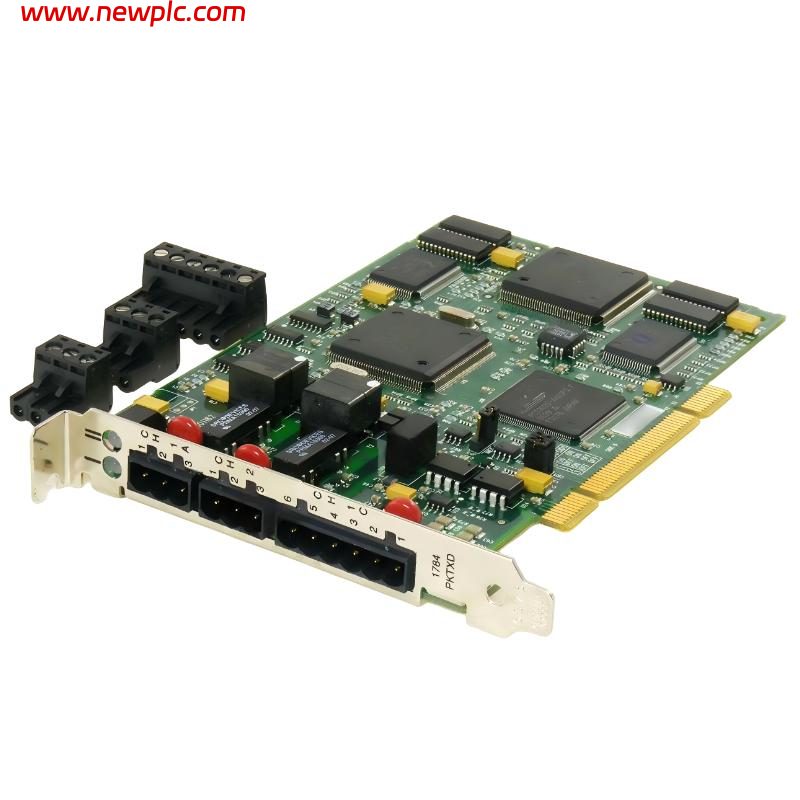

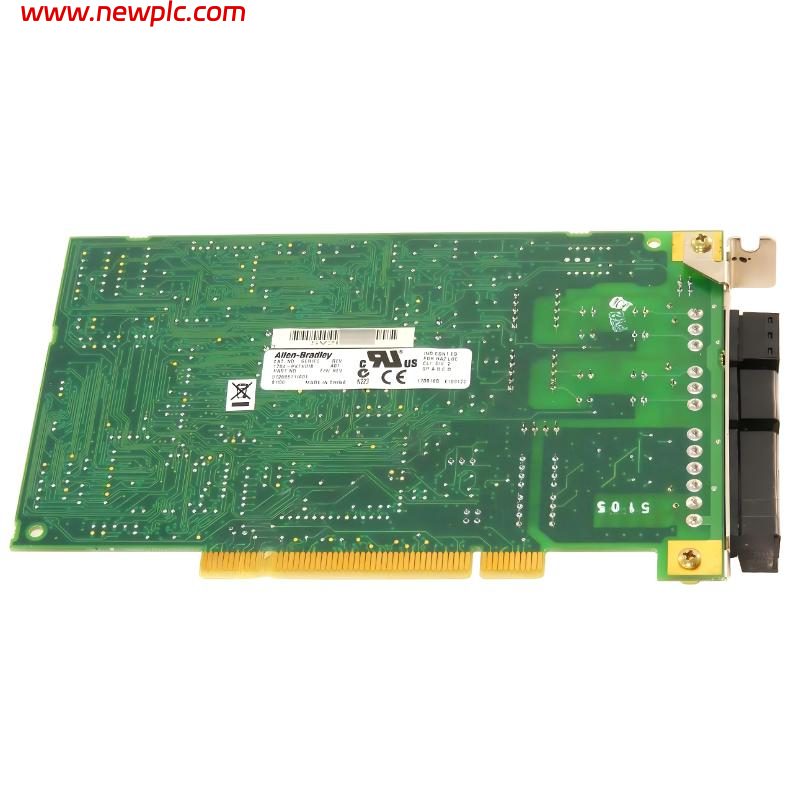

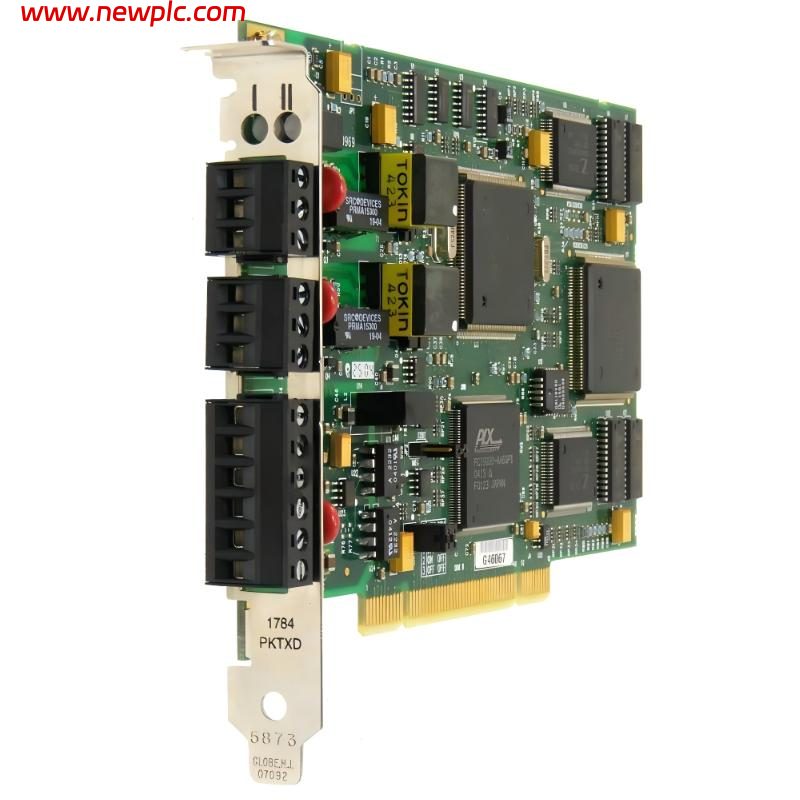

Allen Bradley 1784-PKTXD PCI Communication Interface Card

FAQ

Q1: What is the Allen-Bradley 1784-PKTXD used for?
A1: The 1784-PKTXD is a dual-channel PCI communication interface card used to connect industrial computers to Allen-Bradley DH+, DH-485, and Remote I/O networks for PLC programming, diagnostics, and monitoring.

Q2: What communication networks are supported by the 1784-PKTXD?
A2: The card supports Data Highway Plus (DH+), DH-485, and Remote I/O (RIO) industrial communication networks commonly used in legacy Allen-Bradley automation systems.

Q3: What type of computer slot does the 1784-PKTXD require?
A3: The module is designed for installation in a PCI 2.3 compliant slot and supports both 3.3V and 5V PCI signaling.

Q4: What makes the 1784-PKTXD different from the 1784-PKTX?
A4: The 1784-PKTXD includes dual communication channels, allowing simultaneous communication with multiple DH+ or Remote I/O networks, while the standard 1784-PKTX is a single-channel card.

Q5: Which Allen-Bradley controllers are compatible with the 1784-PKTXD?
A5: The card is compatible with PLC-5, PLC-5/250, and SLC 500 family processors including SLC 5/01 through SLC 5/04 controllers.

Q6: What software can be used with the 1784-PKTXD?
A6: The interface card is commonly used with Rockwell Automation software including RSLinx, RSLogix 5, and RSLogix 500 for industrial communication and troubleshooting.

Q7: Is the 1784-PKTXD still available from Rockwell Automation?
A7: No. Rockwell Automation officially discontinued the 1784-PKTXD on March 31, 2022.

Q8: What are the common applications of the 1784-PKTXD?
A8: Common applications include PLC programming, DH+ networking, Remote I/O communication, factory automation diagnostics, industrial PC integration, and maintenance of legacy Allen-Bradley control systems.
