Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PLC-5 |
| Model Number | 1785-L60L |

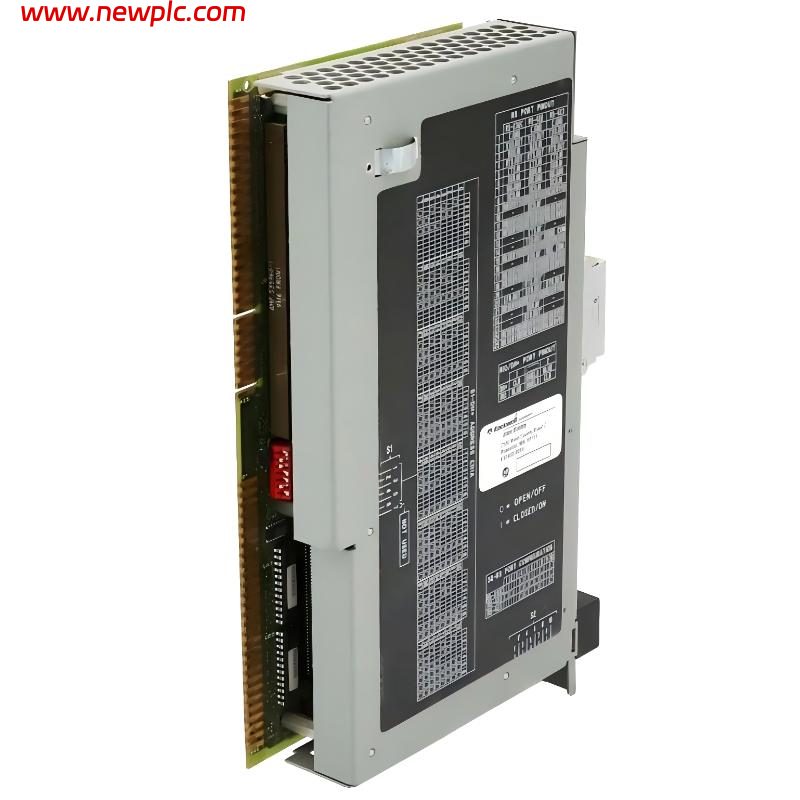

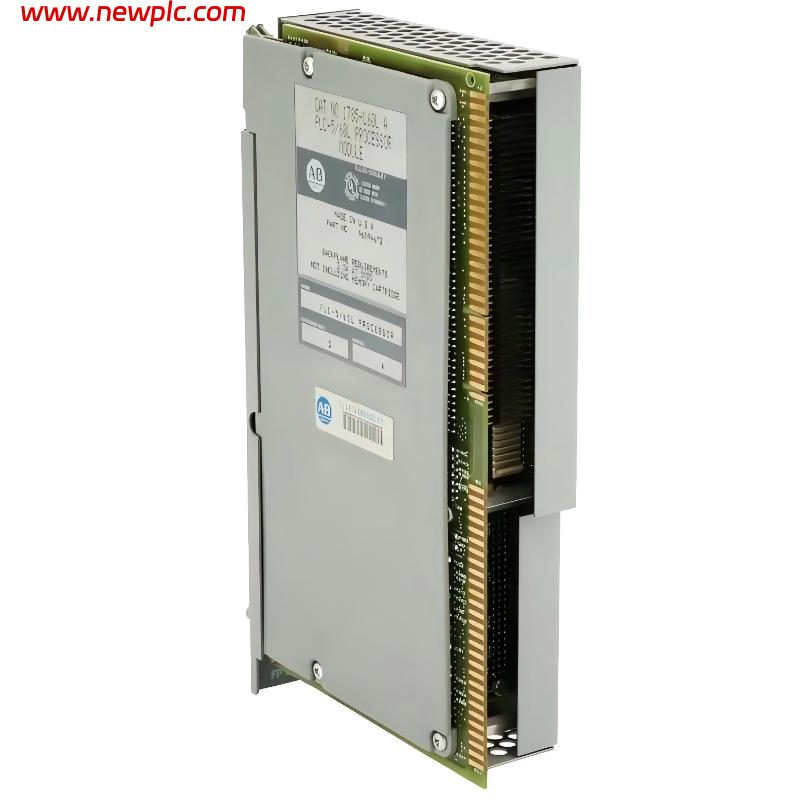

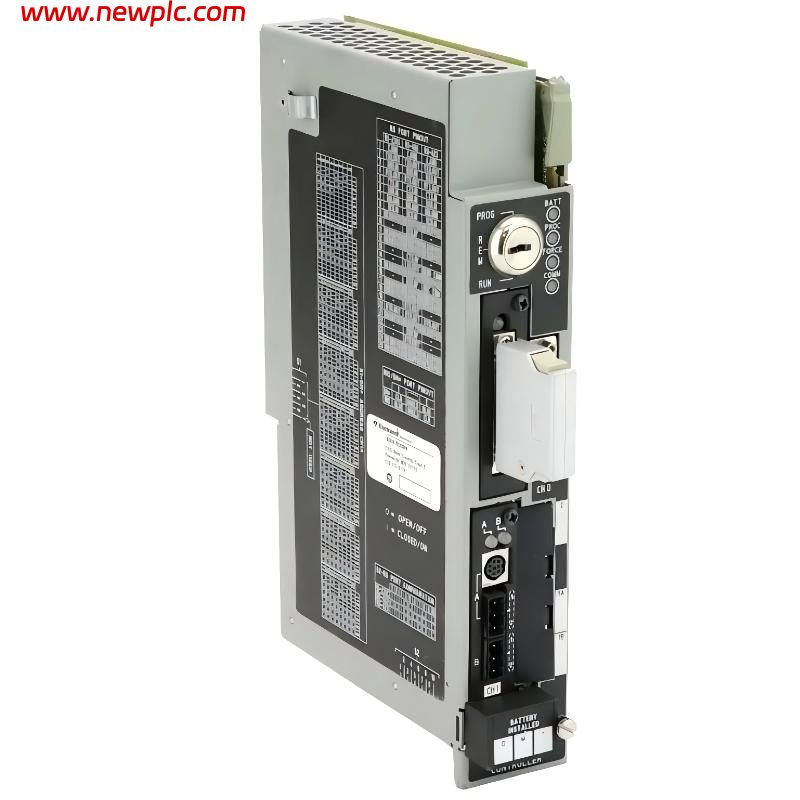

| Product Type | PLC-5/60L Programmable Controller |
| Controller Family | PLC-5 |
| User Memory | 100K Words |
| Program Scan Time | Approx. 1 ms per 1K instructions |
| I/O Capacity | Up to 3072 I/O Points |
| Communication Ports | DH+, Remote I/O, ControlNet via Optional Modules |
| Ethernet Support | Optional Through Communication Modules |
| Programming Software | RSLogix 5 |
| Processor Type | Enhanced PLC-5 Processor |
| Chassis Compatibility | 1771 I/O Chassis |
| Backplane Current Requirement | Approx. 3.3 A @ 5V DC |
| Battery Backup | Yes |
| Memory Backup | EEPROM and Battery Retention |
| Floating Point Math Support | Yes |
| Status Indicators | RUN, FORCE, BAT, COMM LEDs |
| Supported Networks | DH+, Remote I/O, Ethernet via Interface Modules |
| Maximum Remote I/O Chassis | Up to 32 Chassis |
| Mounting Type | Chassis Slot Installation |
| Operating Voltage | Supplied Through Chassis Backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 2 G at 10 to 500 Hz |
| Certifications | UL, CE, CSA |
| Lifecycle Status | Discontinued |
| Dimensions | Approx. 145 x 35 x 260 mm |
| Weight | Approx. 1.1 kg |
| Typical Applications | Industrial Automation, Process Control, Factory Control Systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 1785-L60L used for?
A1: The 1785-L60L is a PLC-5 programmable controller used for industrial automation, machine control, and process control applications in manufacturing environments.
Q2: How much memory does the 1785-L60L provide?
A2: The controller provides 100K words of user memory for application programs and data storage.
Q3: Which I/O chassis are compatible with the 1785-L60L?
A3: The processor is designed for use with Allen-Bradley 1771 I/O chassis systems.
Q4: What communication networks are supported by the 1785-L60L?
A4: The controller supports DH+, Remote I/O, and additional network communication through optional interface modules.
Q5: Does the 1785-L60L support Ethernet communication?
A5: Yes. Ethernet communication can be added using compatible Allen-Bradley communication interface modules.
Q6: What programming software is used with the 1785-L60L?
A6: The controller is programmed using Rockwell Automation RSLogix 5 software.
Q7: Is the 1785-L60L still available from Rockwell Automation?
A7: No. The 1785-L60L has been discontinued as part of the PLC-5 product family migration to newer ControlLogix platforms.
Q8: What are the common applications of the 1785-L60L?
A8: Common applications include factory automation, material handling systems, process control, packaging machinery, and legacy industrial control systems.
