Technical Specifications
| Parameter | Specification |
|---|---|

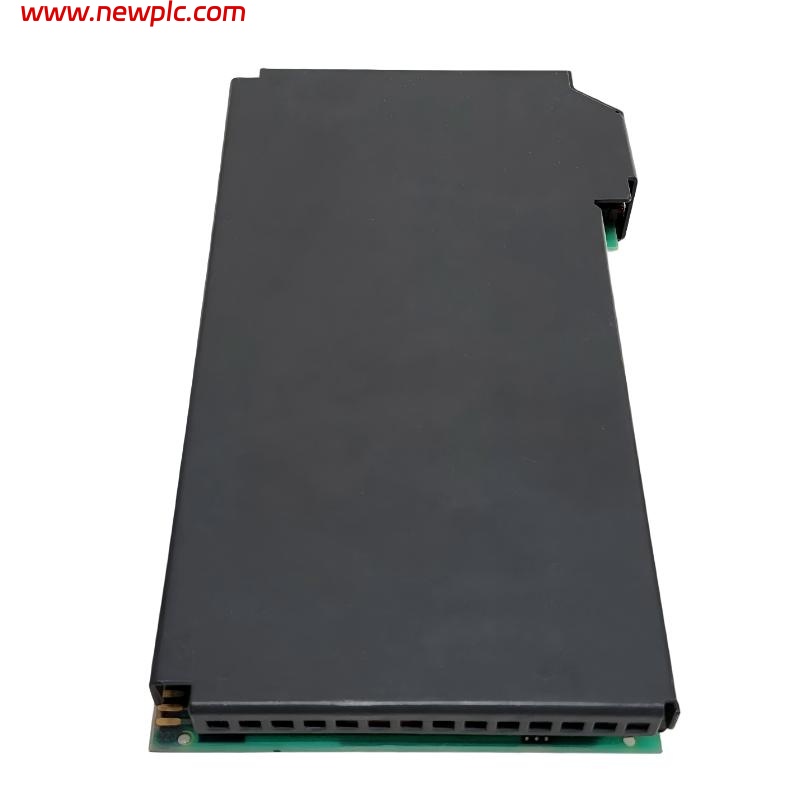

| Product Name | Allen-Bradley 1785-KA |
| Product Type | Data Highway Plus (DH+) Communication Interface Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 I/O platform) |
| Function | Provides DH+ network communication interface for PLC-5 processors |
| Network Type | Data Highway Plus (DH+) |
| Communication Rate | 57.6 Kbaud (standard DH+ rate) |
| Channels | 1 × DH+ communication channel |
| Connector Type | DH+ terminal interface (3-wire connection, depending on revision) |
| PLC Compatibility | PLC-5 family processors in 1771 chassis |
| Backplane Power | Supplied via 1771 I/O chassis |
| Backplane Current | ~1.0 A @ 5 V DC |
| Power Consumption | ~5 W |
| Heat Dissipation | ~17 BTU/hr |
| Wiring Arm | 1771-WH |
| Mounting Type | 1771 I/O chassis slot module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 2 g (10–500 Hz) |
| Shock | 30 g operating / 50 g non-operating |
| Dimensions (H × W × D) | ~115 mm × 317 mm × 160 mm |
| Weight | ~0.5–0.8 kg (varies by revision) |
| Lifecycle Status | Discontinued / Legacy |
FAQ
FAQ
Q1. What is the 1785-KA used for?
It is used to provide Data Highway Plus (DH+) communication for PLC-5 systems.
Q2. Is it a CPU or a communication module?
It is a communication interface module, not a processor.
Q3. What network does it support?
It supports DH+ (Data Highway Plus) industrial network.
Q4. What is its communication speed?
Standard DH+ speed of 57.6 Kbaud.
Q5. How many channels does it have?
It has one DH+ communication channel.
Q6. What hardware does it install into?
It installs into a 1771 I/O chassis slot used by PLC-5 systems.
Q7. Does it require external power?
No, it is powered directly from the PLC backplane.
Q8. Is it still available?
No, it is a legacy/discontinued PLC-5 communication module.
