Technical Specifications
| Parameter | Specification |
|---|---|

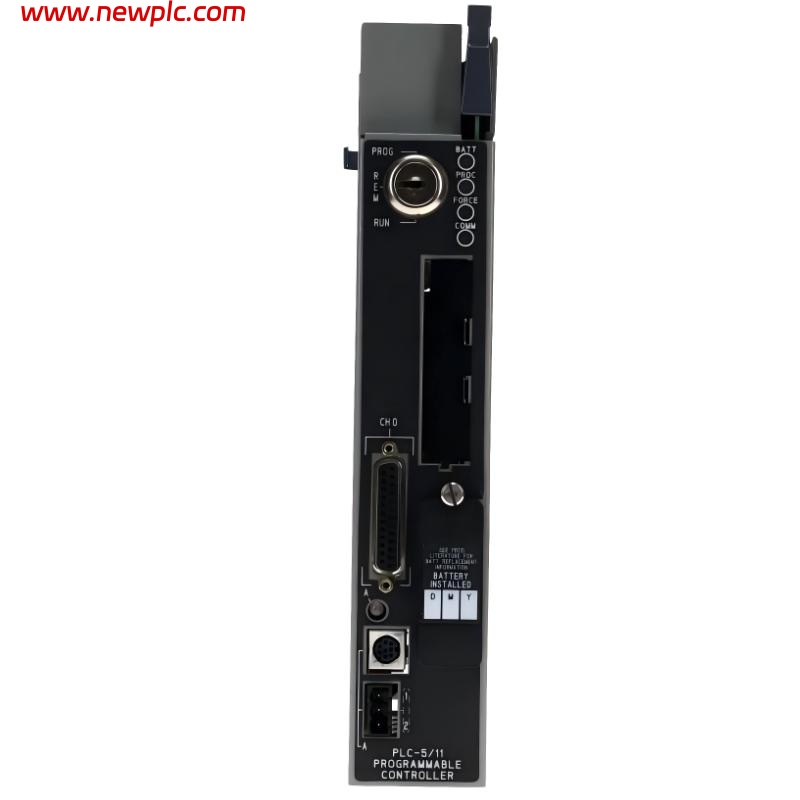

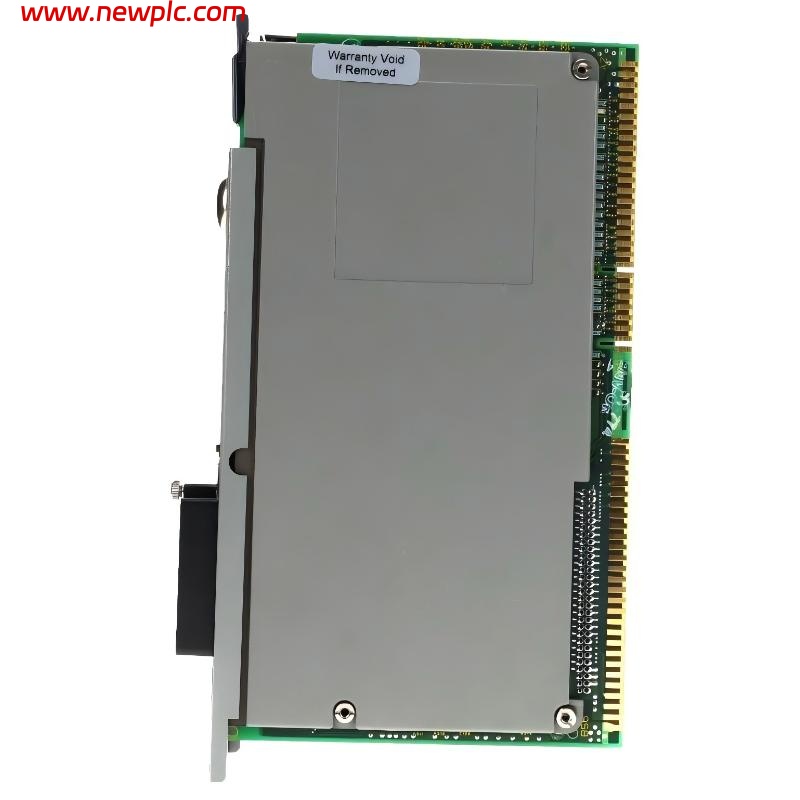

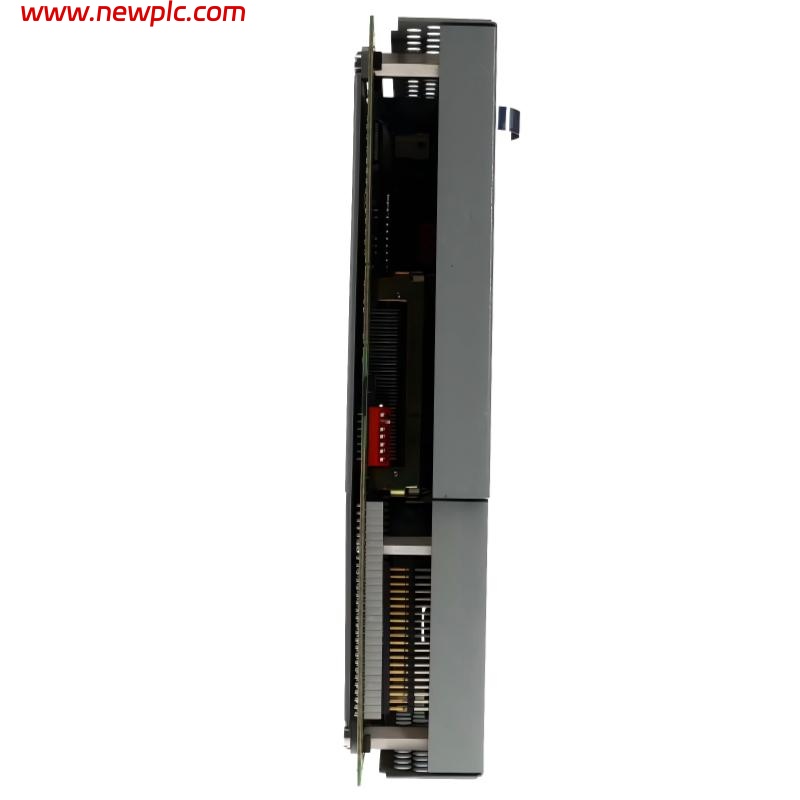

| Product Name | Allen-Bradley 1785-L11B |
| Product Type | PLC-5/11 Processor Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 I/O platform) |
| Function | Programmable Logic Controller CPU for industrial automation control |
| Memory Type | User memory (battery-backed RAM) |
| Memory Capacity | ~8K words (typical PLC-5/11 configuration) |
| I/O Capacity | Up to 512 I/O points (system dependent) |
| Communication Ports | DH+ (Data Highway Plus), Remote I/O, serial (depending on configuration) |
| Scan Time | ~0.5–5 ms per 1K logic (typical) |
| Programming Language | Ladder Diagram (RSLogix 5 / 6200 Series software) |
| Backplane | 1771 I/O chassis compatible |
| Power Supply | 1771 chassis backplane (no external supply required) |
| Backplane Current | ~2.0 A @ 5 V DC (typical PLC-5 CPU range) |
| Battery Backup | Yes (lithium battery for memory retention) |
| Battery Type | 1770-XYC or equivalent |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 2 g (10–500 Hz) |
| Shock | 30 g operating / 50 g non-operating |
| Dimensions (H × W × D) | ~115 mm × 317 mm × 160 mm |
| Weight | ~0.8–1.2 kg |
| Mounting Type | 1771 chassis slot module |
FAQ
FAQ
Q1. What is the 1785-L11B used for?
It is a PLC-5/11 processor used to control industrial automation systems such as production lines and machinery.
Q2. Is it a communication module?
No, it is a CPU (processor module), not a communication interface.
Q3. What system does it belong to?
It belongs to the PLC-5 system using the 1771 I/O chassis.
Q4. What programming software is used?
It is programmed using RSLogix 5 or older Allen-Bradley software tools.
Q5. Does it require external power?
No, it is powered directly from the 1771 chassis backplane.
Q6. Does it have battery backup?
Yes, it uses a lithium battery to retain memory when power is off.
Q7. What is its I/O capacity?
Up to approximately 512 I/O points, depending on system configuration.
Q8. Is it still in production?
No, it is a legacy/discontinued PLC-5 processor module.
