Technical Specifications
| Parameter | Specification |
|---|---|

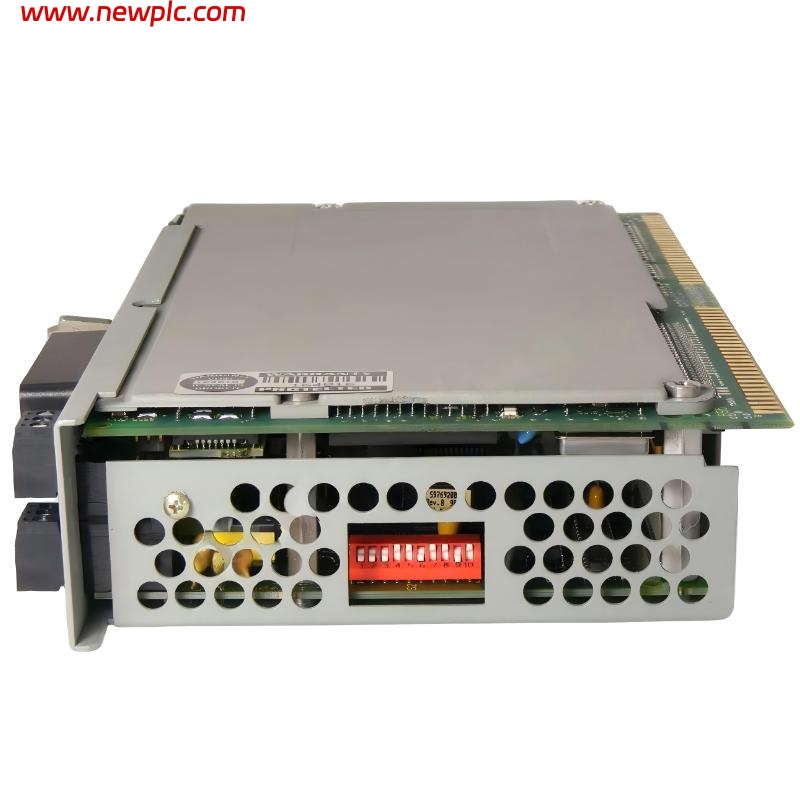

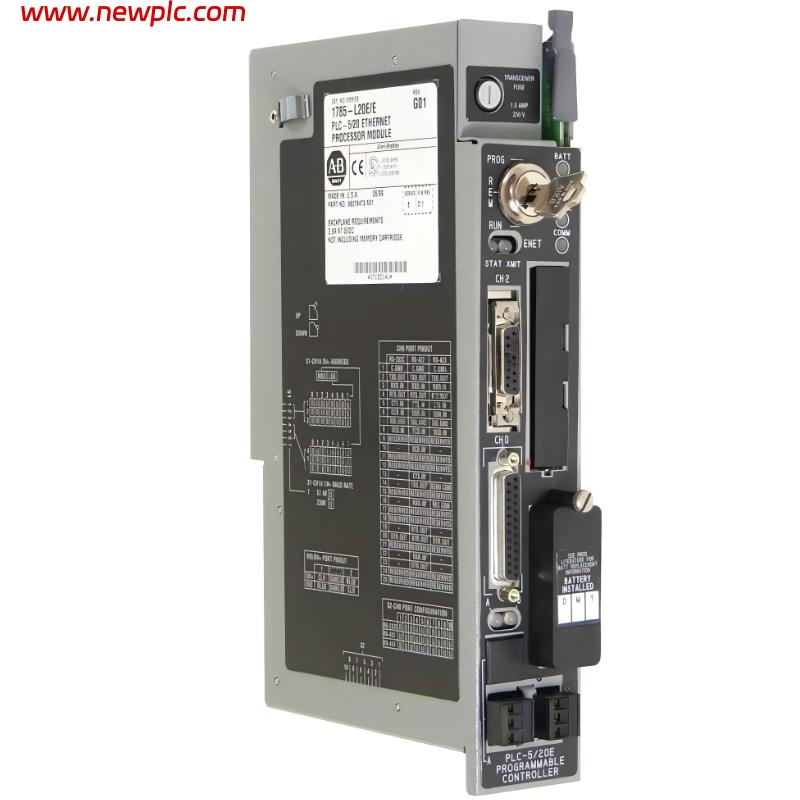

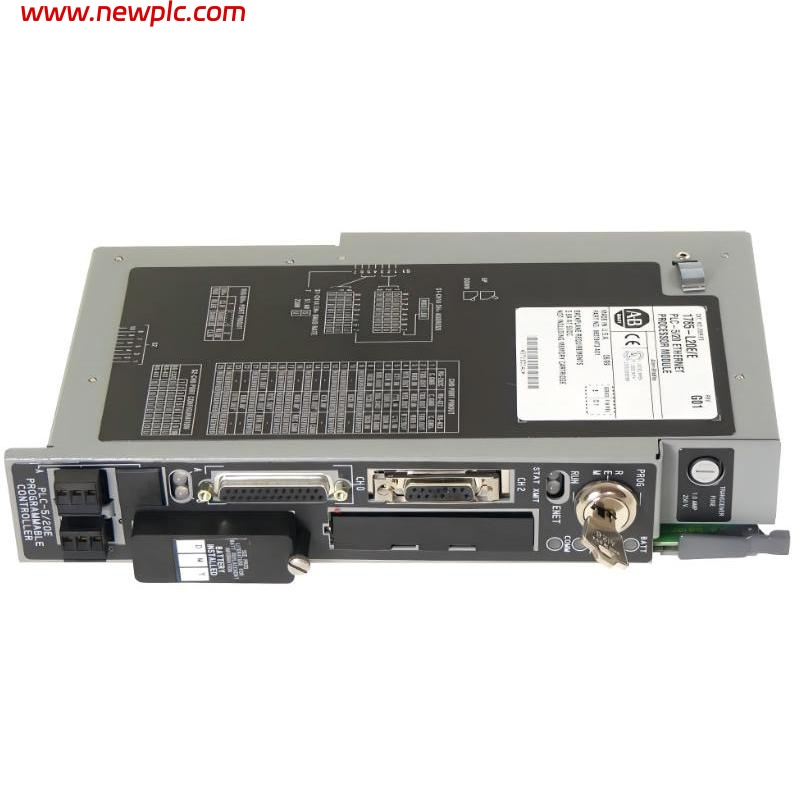

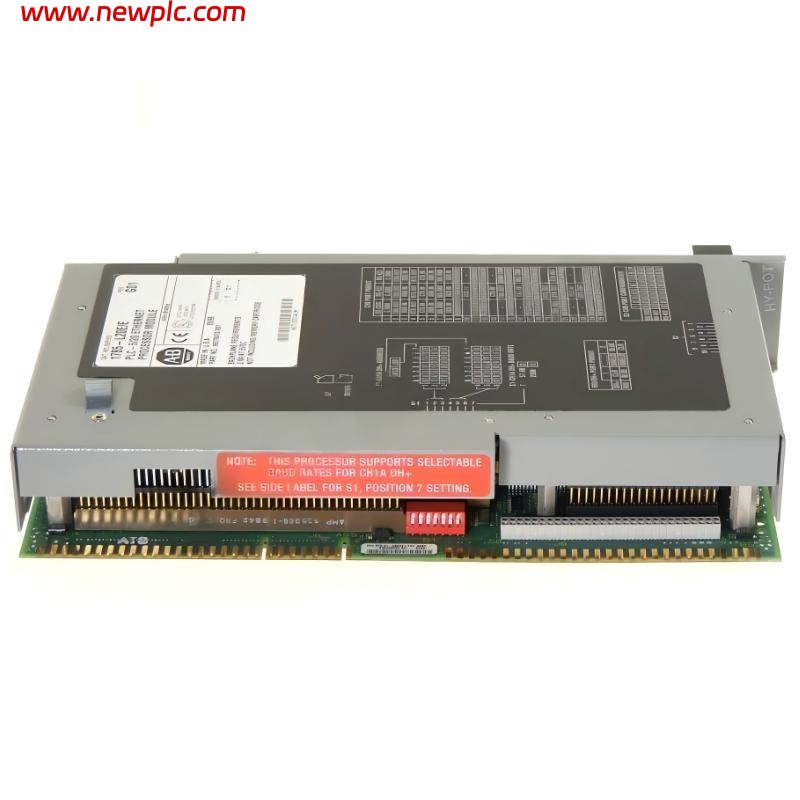

| Product Name | Allen-Bradley 1785-L20E/E |
| Product Type | PLC-5/20E Processor Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 I/O platform) |
| Revision | Series E |
| Function | Programmable Logic Controller CPU with integrated Ethernet communication |
| User Memory | 16K words (battery-backed SRAM) |
| I/O Capacity | Up to 512 I/O (any mix) or 512 in + 512 out |
| Communication Ports | Ethernet, DH+, DH+/Remote I/O, Serial (RS-232/422/423) |
| Ethernet Port | 1 × RJ45 (integrated) |
| Programming Software | RSLogix 5 |
| Backplane | 1771 I/O chassis compatible |
| Backplane Current | ~2.3 A @ 5 V DC (typical PLC-5 CPU range) |
| Battery Backup | Yes (lithium battery, e.g., 1770-XYC) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 2 g (10–500 Hz) |
| Shock | 30 g operating / 50 g non-operating |
| Dimensions (H × W × D) | ~178 mm × 51 mm × 279 mm |
| Weight | ~0.7–1.4 kg |
| Mounting Type | 1771 chassis slot module |
FAQ
FAQ
Q1. What is the 1785-L20E/E used for?
It is a PLC-5/20E processor used for industrial automation control with built-in Ethernet communication.
Q2. What is the difference between L20B and L20E?
The L20E/E includes integrated Ethernet, while L20B does not have native Ethernet capability.
Q3. What memory capacity does it have?
It provides 16K words of battery-backed SRAM.
Q4. What communication networks does it support?
It supports Ethernet, DH+, Remote I/O, and serial communication.
Q5. How many I/O points can it handle?
Up to 512 I/O points depending on configuration.
Q6. What chassis is it installed in?
It is installed in a 1771 I/O chassis used in PLC-5 systems.
Q7. Does it require a battery?
Yes, a lithium battery is required for memory retention when power is off.
Q8. Is it still in production?
No, it is a legacy/discontinued PLC-5 Ethernet processor.
