Technical Specifications
| Parameter | Specification |
|---|---|

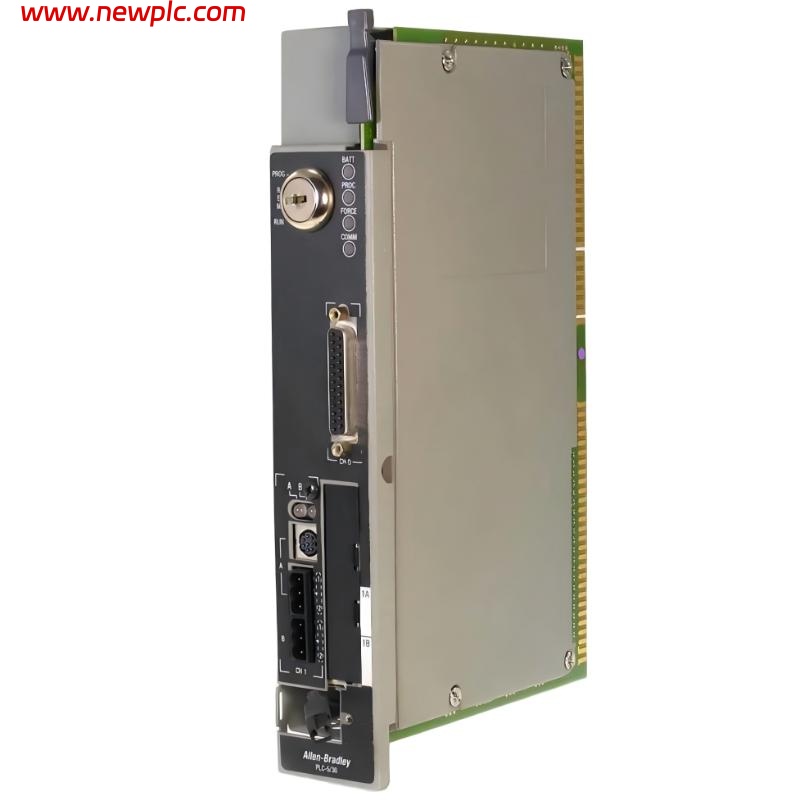

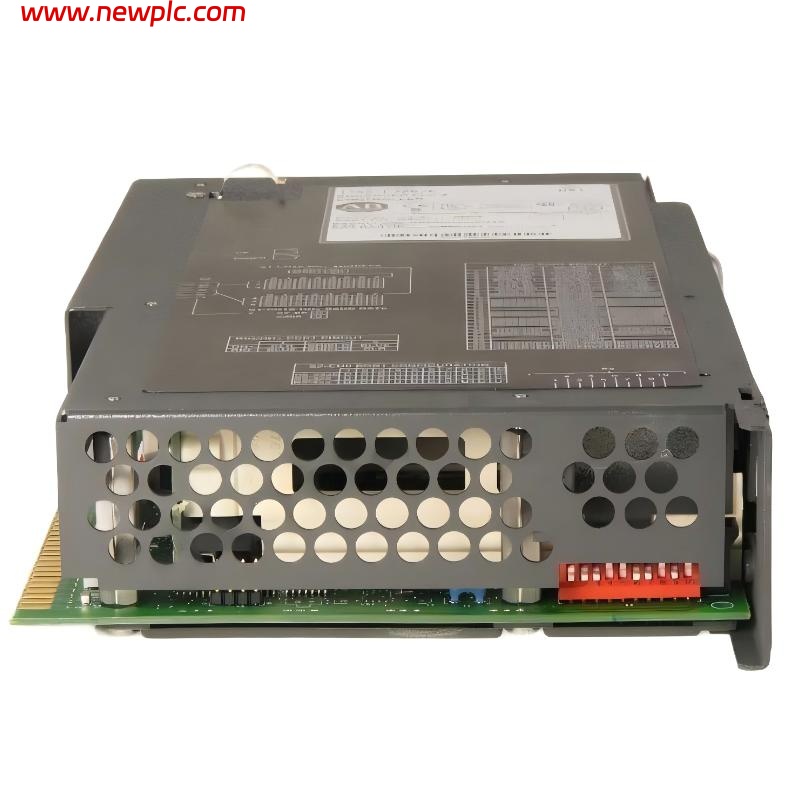

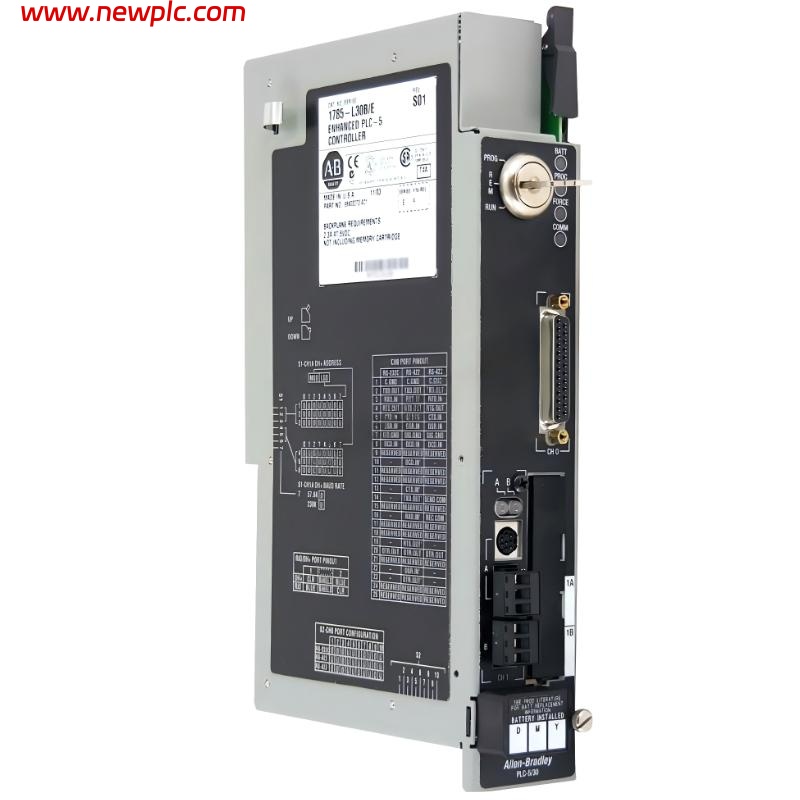

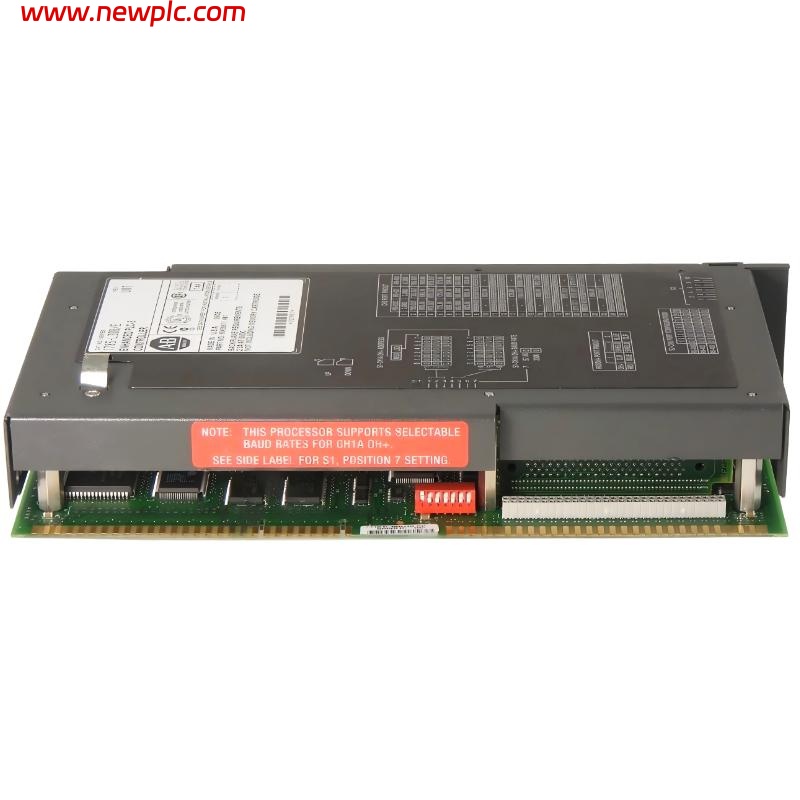

| Product Name | Allen-Bradley 1785-L30B |
| Product Type | PLC-5/30 Processor Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 I/O platform) |
| Function | Programmable Logic Controller CPU for mid-range industrial automation systems |
| User Memory | 32K words (battery-backed SRAM) |
| I/O Capacity | Up to 1024 I/O (any mix) or 1024 in + 1024 out |
| Communication Ports | 2 × DH+/Remote I/O, 1 × Serial (RS-232/422/423) |
| Remote I/O Support | Up to 28 remote I/O chassis |
| Programming Software | RSLogix 5 |
| Backplane | 1771 I/O chassis compatible |
| Backplane Current | ~2.3 A @ 5 V DC |
| Power Consumption | ~12 W |
| Battery Backup | Yes (lithium battery) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 2 g (10–500 Hz) |
| Shock | 30 g operating / 50 g non-operating |
| Dimensions (H × W × D) | ~260 mm × 280 mm × 50 mm |
| Weight | ~1.2–1.5 kg |
| Mounting Type | 1771 chassis slot module |
FAQ
FAQ
Q1. What is the 1785-L30B used for?
It is a PLC-5/30 processor used for controlling medium-scale industrial automation systems.
Q2. Is it a CPU or communication module?
It is a CPU (processor module), not a communication interface.
Q3. What memory capacity does it have?
It provides 32K words of battery-backed SRAM.
Q4. What communication interfaces are built in?
It includes DH+, Remote I/O, and serial (RS-232/422/423) ports.
Q5. How many I/O points can it support?
Up to 1024 I/O points, depending on system configuration.
Q6. What chassis does it use?
It installs into a 1771 I/O chassis used in PLC-5 systems.
Q7. Does it support Remote I/O systems?
Yes, it supports up to 28 remote I/O racks.
Q8. Is it still in production?
No, it is a legacy/discontinued PLC-5 processor, mainly used for maintaining existing systems.
