Technical Specifications
| Parameter | Specification |
|---|---|

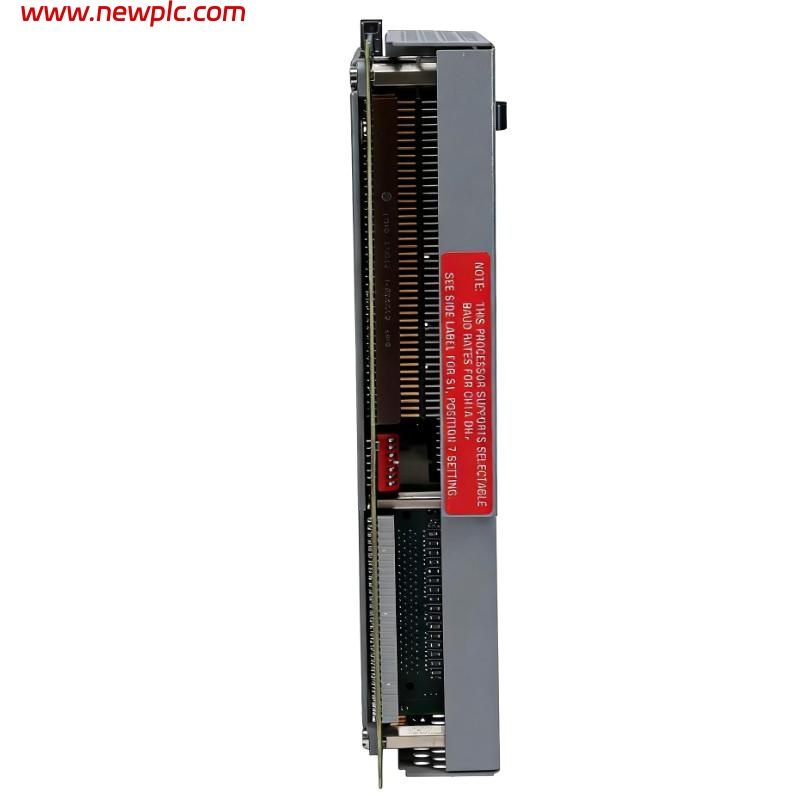

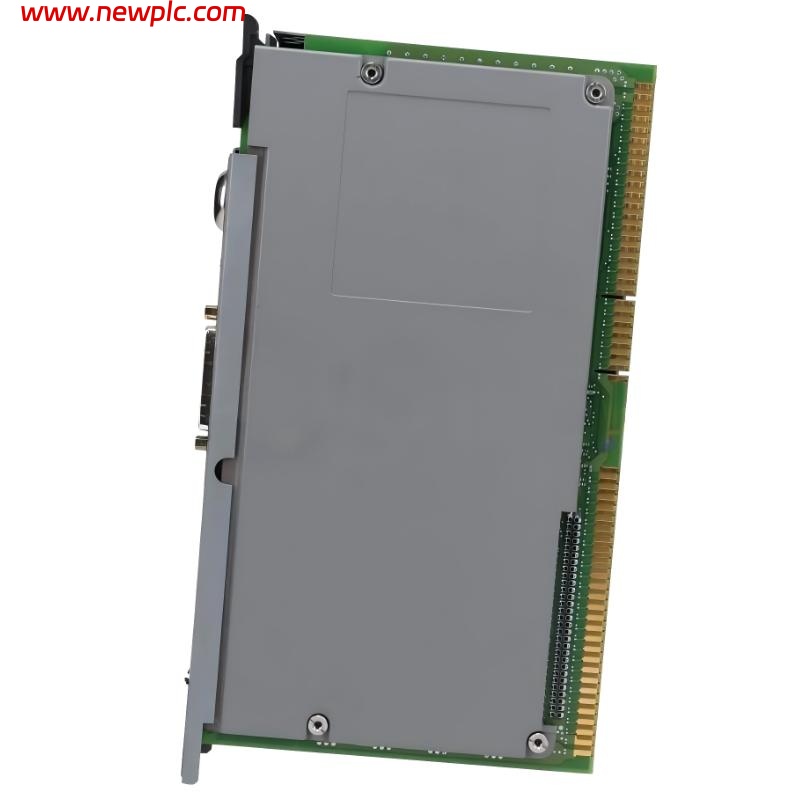

| Product Name | Allen-Bradley 1785-L80B |
| Product Type | PLC-5/80 Processor Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 I/O platform) |
| Function | High-performance PLC CPU for large-scale industrial automation systems |
| User Memory | 100K words (battery-backed SRAM) |
| I/O Capacity | Up to 3072 I/O points (any mix) or 3072 in + 3072 out |

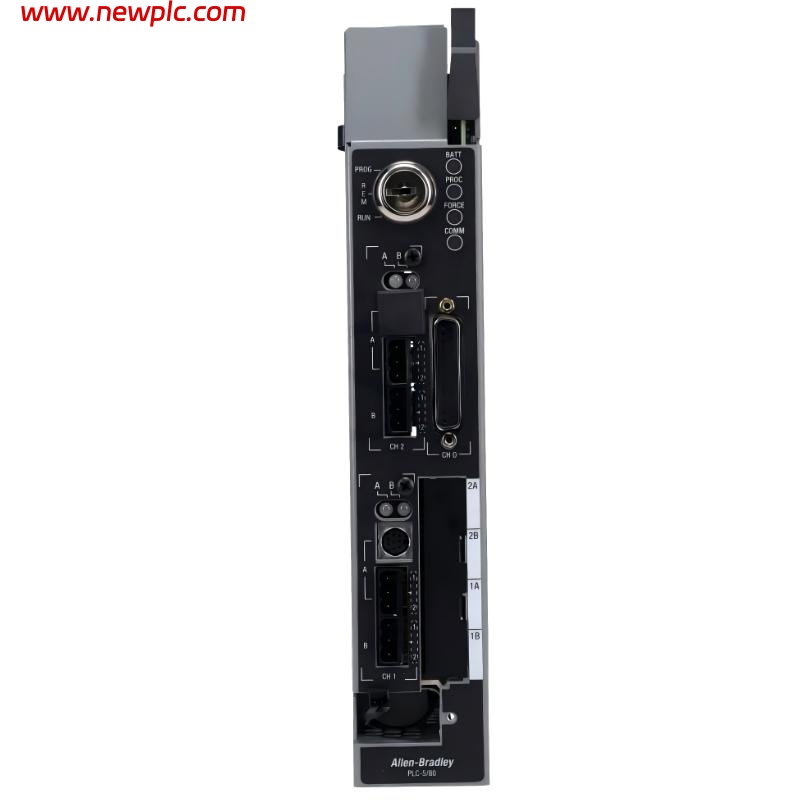

| Communication Ports | 4 × DH+/Remote I/O (CH1A, CH1B, CH2A, CH2B), 1 × serial (RS-232/422/423) |
| Programming Software | RSLogix 5 |
| Backplane | 1771 I/O chassis compatible |

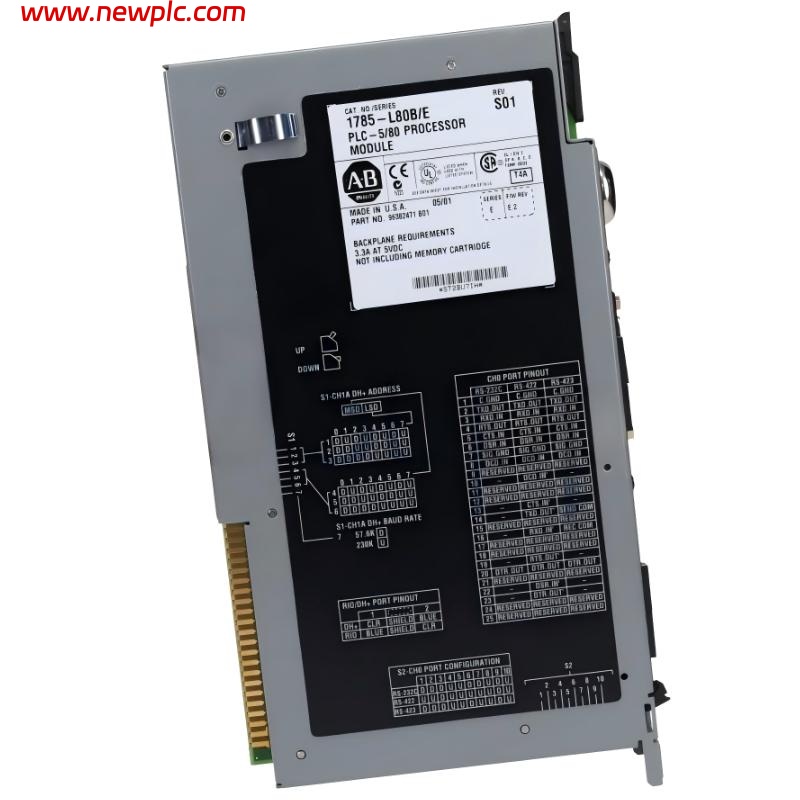

| Backplane Current | ~3.3 A @ 5 V DC |
| Power Dissipation | ~17 W |
| Battery Backup | Yes (lithium battery for memory retention) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 2 g (10–500 Hz) |
| Shock | 30 g operating / 50 g non-operating |
| Dimensions (H × W × D) | ~279 mm × 51 mm × 178 mm |
| Weight | ~1.3–1.5 kg |
FAQ
FAQ
Q1. What is the 1785-L80B used for?
It is a PLC-5/80 high-performance processor used for large-scale industrial automation and distributed control systems.
Q2. How much memory does it have?
It provides 100K words of battery-backed SRAM for program and data storage.
Q3. What is its maximum I/O capacity?
It supports up to 3072 I/O points (or 3072 inputs + 3072 outputs in complementary mode).
Q4. What communication interfaces does it support?
It includes 4 DH+/Remote I/O channels and 1 serial port (RS-232/422/423).
Q5. What chassis does it use?
It is installed in a 1771 PLC-5 I/O chassis system.
Q6. What is its role in a control system?
It acts as a central controller coordinating local and remote I/O across multiple racks and networks.
Q7. Is it suitable for modern automation systems?
No, it is a legacy PLC-5 controller, mainly used for maintaining existing industrial installations.
Q8. Why is it considered high-end in PLC-5 series?
Because it has the largest memory, highest I/O capacity, and most communication channels in the PLC-5 family.
