Technical Specifications
| Parameter | Specification |
|---|---|

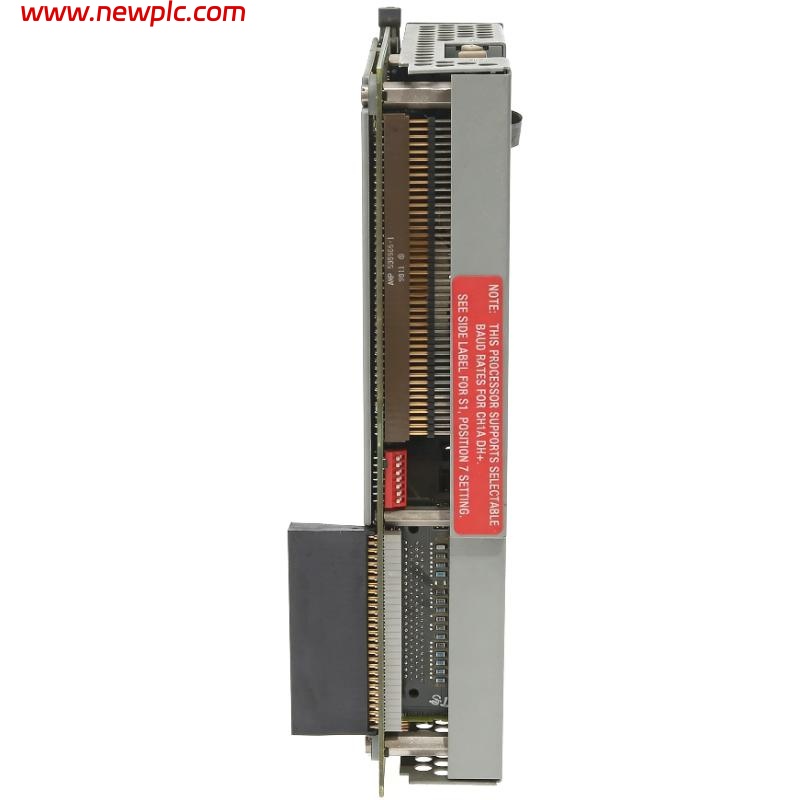

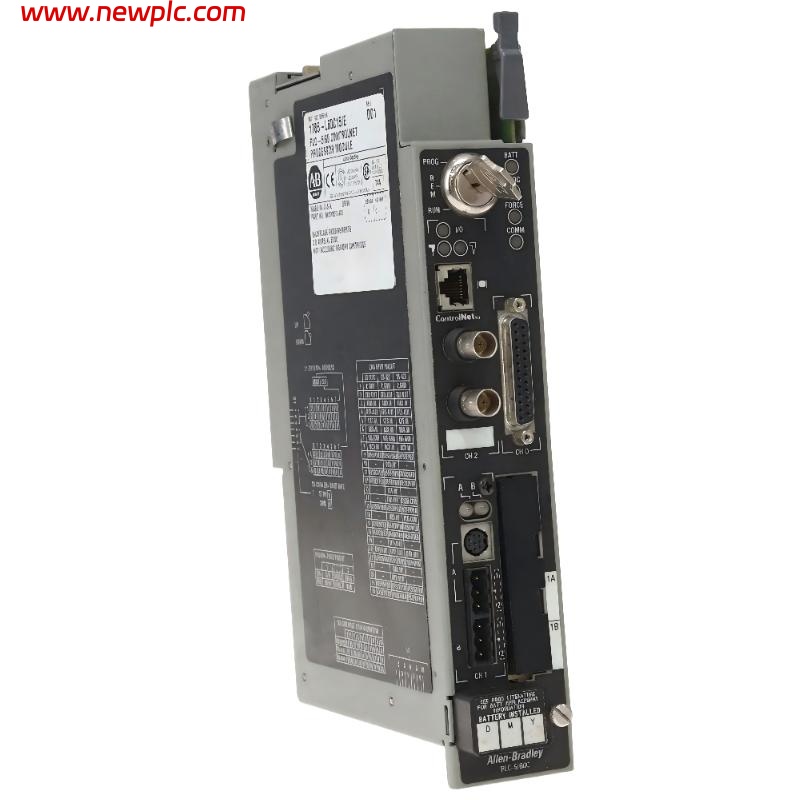

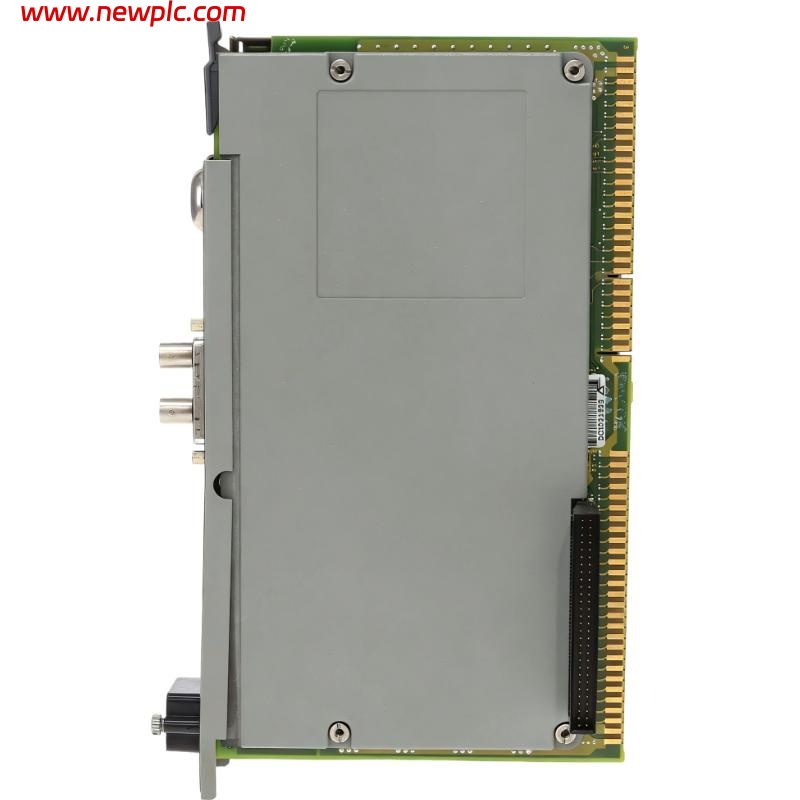

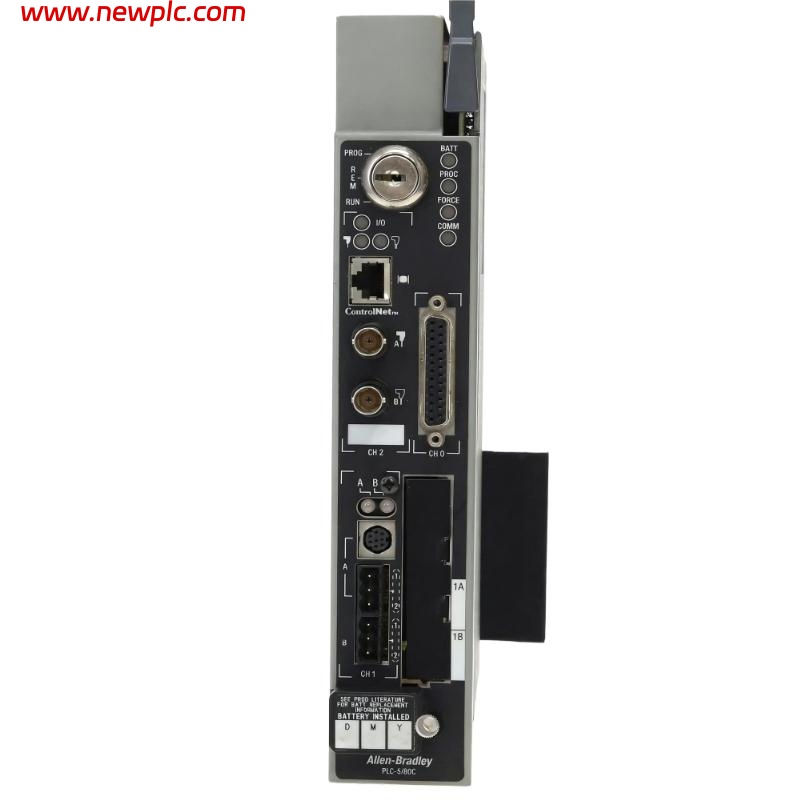

| Product Name | Allen-Bradley 1785-L80C15 |
| Product Type | PLC-5/80C ControlNet Processor Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 I/O platform) |
| Function | High-performance PLC CPU with integrated ControlNet communication for large distributed control systems |
| User Memory | 100K words (battery-backed SRAM) |
| I/O Capacity | Up to 3072 I/O points (any mix) or 3072 in + 3072 out (complementary mode) |
| Communication Ports | ControlNet, DH+, Remote I/O, and serial (RS-232/422/423) |
| ControlNet Speed | 5 Mbps |
| ControlNet Topology | Redundant/coax-based deterministic network |
| Remote I/O Support | Up to ~24–28 racks (system dependent) |
| Programming Software | RSLogix 5 |
| Backplane | 1771 I/O chassis compatible |
| Backplane Current | ~3.3 A @ 5 V DC |
| Battery Backup | Yes (lithium battery for memory retention) |
| Memory Expansion | Optional EEPROM modules (1785-ME series) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 2 g (10–500 Hz) |
| Shock | 30 g operating / 50 g non-operating |
| Dimensions (H × W × D) | ~280 mm × 160 mm × 50 mm |
| Weight | ~1.3–1.5 kg |
FAQ
FAQ
Q1. What is the 1785-L80C15 used for?
It is a high-end PLC-5/80C processor used in large industrial automation systems requiring ControlNet and distributed I/O control.
Q2. What does the “C” indicate?
It indicates ControlNet communication capability integrated into the processor.
Q3. How much memory does it have?
It provides 100K words of battery-backed SRAM.
Q4. What networks does it support?
It supports ControlNet, DH+, Remote I/O, and serial communication interfaces.
Q5. What is its maximum I/O capacity?
Up to 3072 I/O points total (or 3072 in + 3072 out depending on configuration).
Q6. What chassis is required?
It is installed in a 1771 I/O chassis system used by PLC-5 controllers.
Q7. Is it suitable for modern automation systems?
No, it is a legacy PLC-5 ControlNet processor, mainly used for maintaining existing installations.
Q8. Why is it considered one of the most powerful PLC-5 models?
Because it combines the largest memory, highest I/O capacity, and multi-network capability (ControlNet + DH+ + RIO) in the PLC-5 family.
