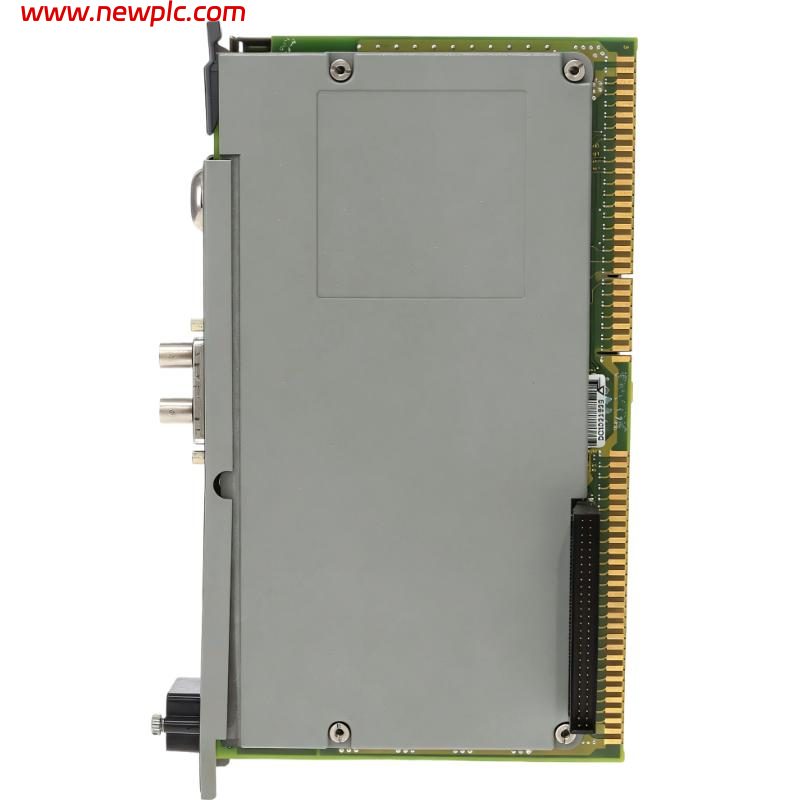

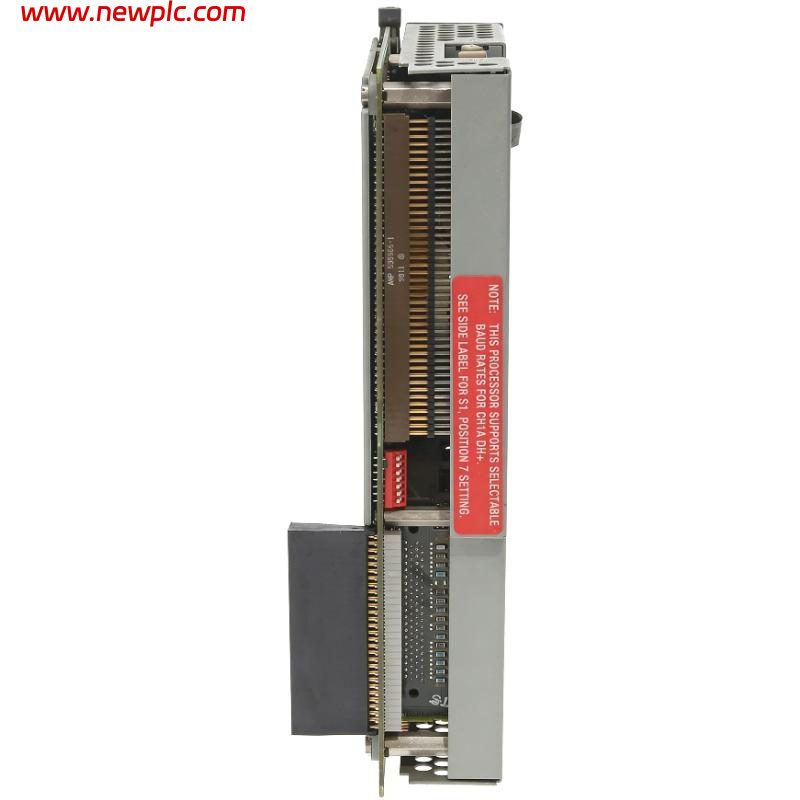

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PLC-5 |
| Model Number | 1785-L80C |
| Product Type | PLC Processor Module |
| Processor Model | PLC-5/80C |
| Processor Type | ControlNet Programmable Controller |
| User Memory | 100K Words |
| Battery-backed RAM | Yes |
| EEPROM Backup Support | 1785-ME16 / ME32 / ME64 / M100 |
| Supported I/O Capacity | 3072 I/O Points |
| Maximum Analog I/O | 3072 |
| Local / Remote Chassis Support | Up to 93 Chassis |
| Communication Networks | ControlNet, DH+, Remote I/O |
| ControlNet Speed | 5 Mbps |
| Serial Ports | 1 × RS-232-C/422-A/423-A |
| Coprocessor Expansion Port | Yes |
| I/O Scan Time | 10 ms @ 57.6 kbps, 7 ms @ 115.2 kbps, 3 ms @ 230.4 kbps |
| Backplane Current Draw | Approx. 3.3 A @ 5V DC |
| Power Dissipation | Approx. 17 W |
| Mounting Type | 1771 PLC Chassis Mount |

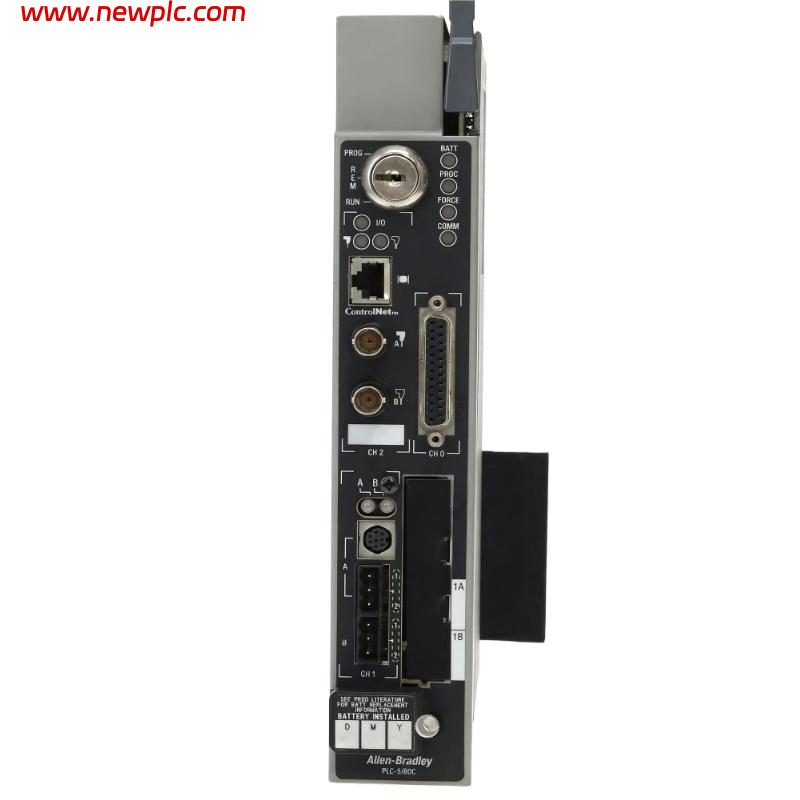

| Keyswitch Modes | RUN / PROG / REM |
| LED Indicators | PROC, BATT, FORCE, COMM |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CSA, CE, C-Tick |
| Enclosure Type | Open Type |
| Lifecycle Status | Discontinued |
| Actual Dimensions (H × W × D) | Approx. 279 × 76 × 152 mm |
| Actual Weight | Approx. 1.4–1.8 kg |
| Typical Applications | Legacy PLC-5 Automation, Process Control, Factory Automation, ControlNet Systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 1785-L80C used for?
A1: The 1785-L80C is a PLC-5/80C ControlNet processor module used in legacy Allen-Bradley PLC-5 automation systems for large-scale industrial control applications.
Q2: How much memory does the 1785-L80C provide?
A2: The controller provides 100K words of user memory with battery-backed RAM support.
Q3: What communication networks are supported by the 1785-L80C?
A3: The processor supports ControlNet, DH+ (Data Highway Plus), Remote I/O, and serial communications.
Q4: What is the ControlNet communication speed?
A4: The integrated ControlNet interface operates at 5 Mbps.
Q5: What are the actual dimensions and weight of the 1785-L80C?
A5: The approximate dimensions are 279 × 76 × 152 mm, and the actual weight is approximately 1.4 to 1.8 kg depending on revision and packaging.
Q6: Which chassis is compatible with the 1785-L80C?
A6: The processor is designed for Allen-Bradley 1771 PLC chassis systems.
Q7: Is the 1785-L80C still manufactured?
A7: No. The 1785-L80C is a discontinued legacy PLC-5 processor, but refurbished and surplus units are still available in the industrial aftermarket.
Q8: What are common applications for the 1785-L80C?
A8: Common applications include legacy manufacturing systems, process automation, factory control systems, and ControlNet-based industrial automation networks.
