Technical Specifications
| Parameter | Specification |
|---|---|

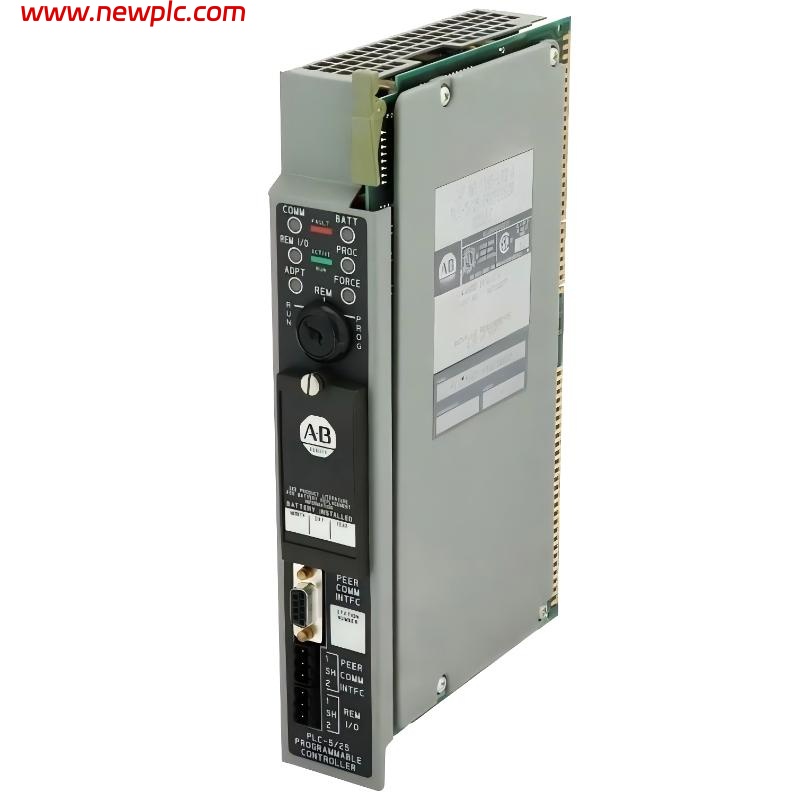

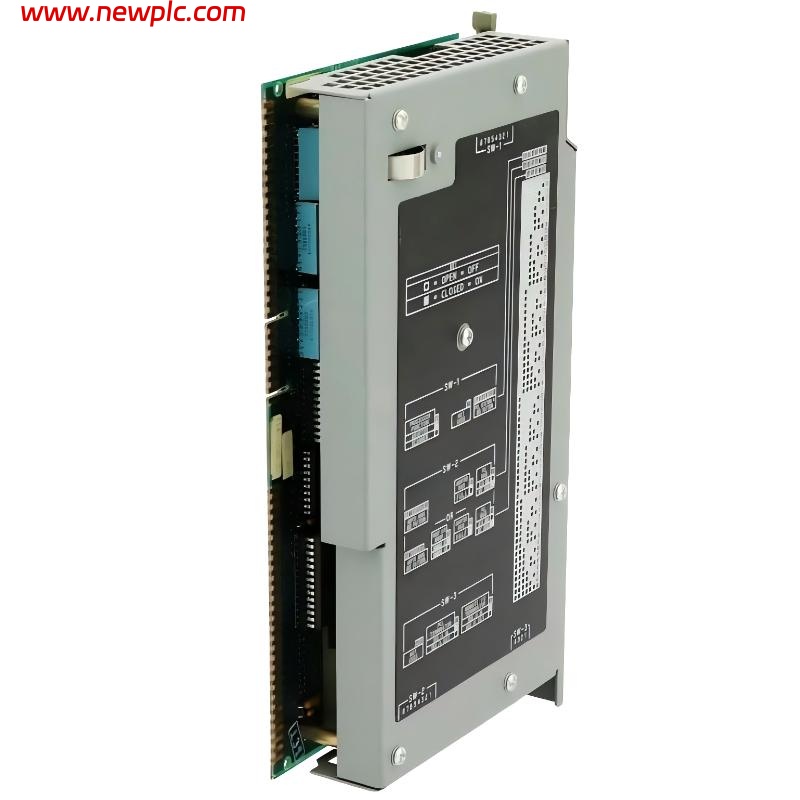

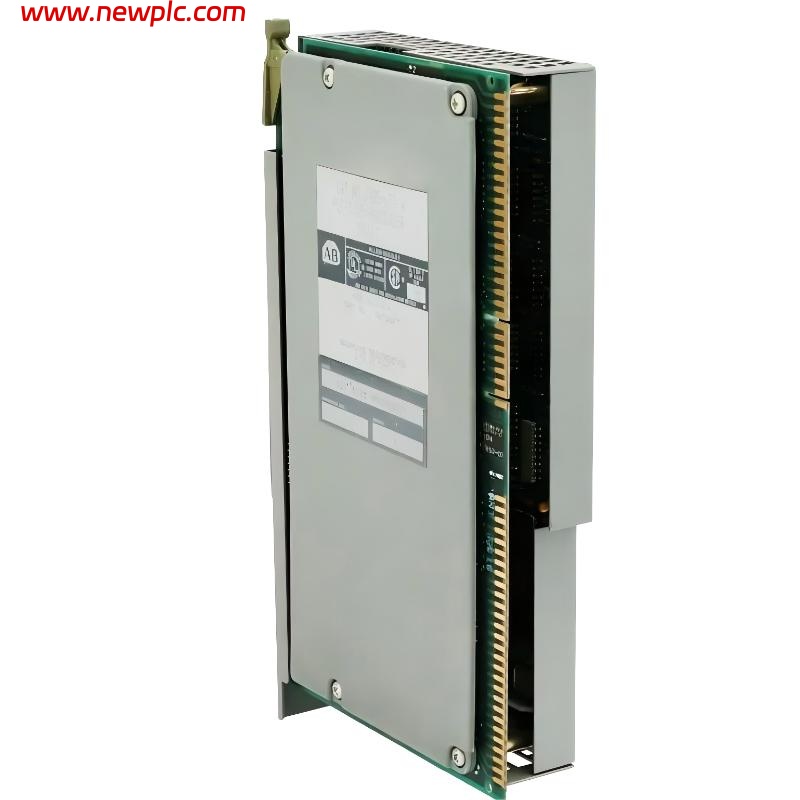

| Product Name | Allen-Bradley 1785-LT2 |
| Product Type | PLC-5/25 Processor Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 I/O platform) |
| Function | Programmable logic controller CPU for medium-scale industrial automation systems |
| User Memory | 13K words SRAM, expandable to 17K or 21K words |
| I/O Capacity | Up to 1024 I/O points (any mix) |
| Communication Ports | 1 × DH+, 1 × Remote I/O (RIO), 1 × serial (RS-232/422/423) |
| Remote I/O Support | Up to 16–17 chassis (system dependent) |
| Programming Software | RSLogix 5 / PLC-5 programming tools |
| Backplane | 1771 I/O chassis compatible |
| Backplane Power | Supplied via 1771 chassis |
| Battery Backup | Yes (lithium battery for memory retention) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 2 g (10–500 Hz) |
| Shock | 30 g operating / 50 g non-operating |
| Dimensions (H × W × D) | ~279 mm × 150 mm × 50 mm |
| Weight | ~1.3–1.5 kg |
FAQ
FAQ
Q1. What is the 1785-LT2 used for?
It is a PLC-5/25 processor used to control medium-scale industrial automation systems such as production lines and machine control.
Q2. Is it a CPU or communication module?
It is a CPU (processor module), not a communication interface.
Q3. What memory does it have?
It has 13K words of SRAM, expandable up to 21K words.
Q4. What networks does it support?
It supports DH+ (Data Highway Plus) and Remote I/O (RIO) plus a serial communication port.
Q5. What is its I/O capacity?
Up to 1024 I/O points total, depending on configuration.
Q6. What chassis does it use?
It installs in a 1771 I/O chassis system.
Q7. Can it handle distributed systems?
Yes, via Remote I/O racks and DH+ networking.
Q8. Is it still in production?
No, it is a legacy PLC-5 controller used for maintaining existing industrial systems.
