Technical Specifications
| Parameter | Specification |
|---|---|

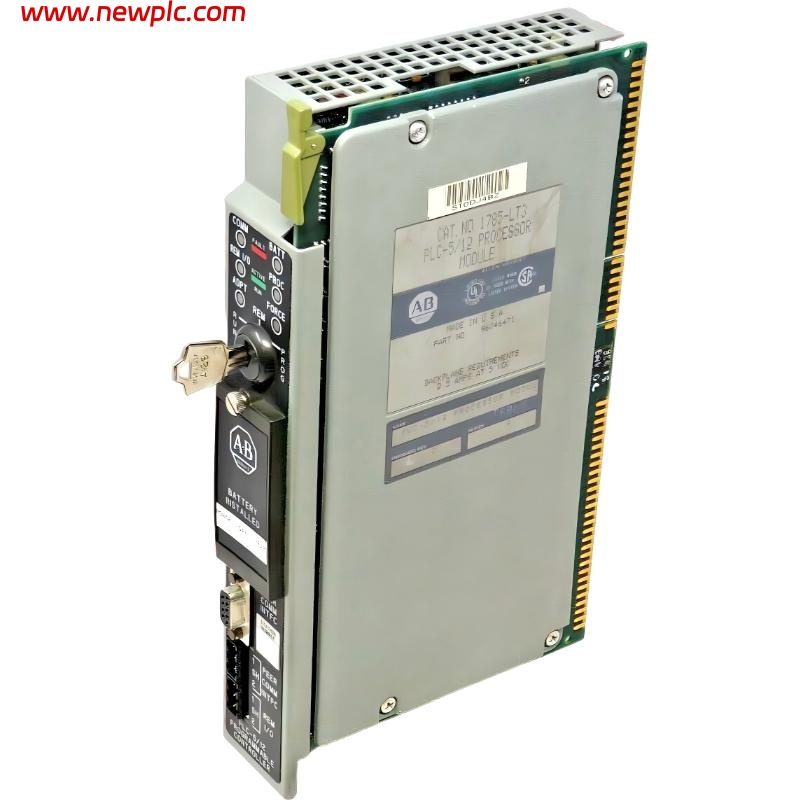

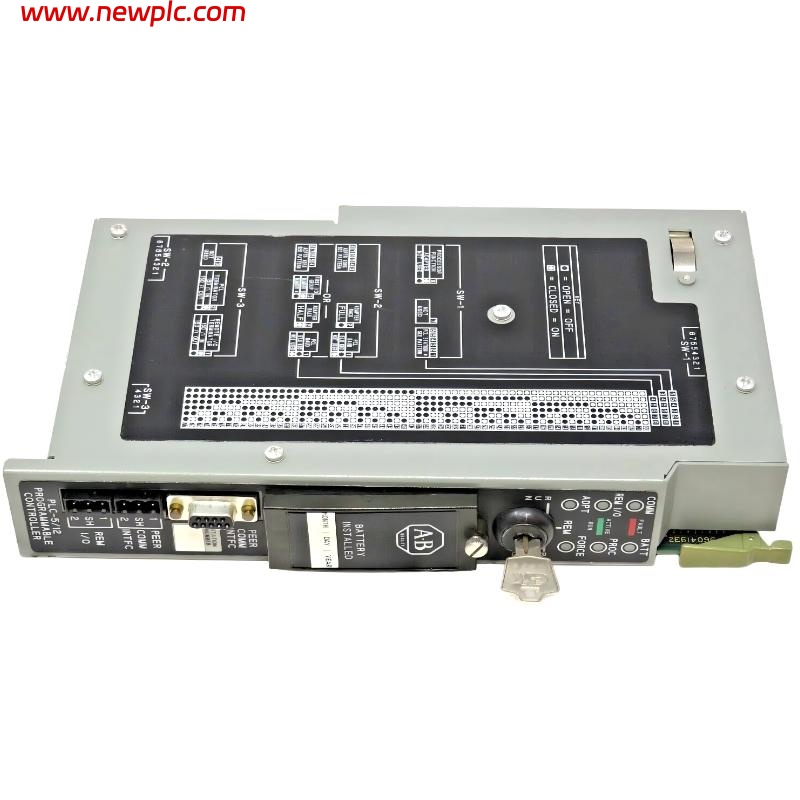

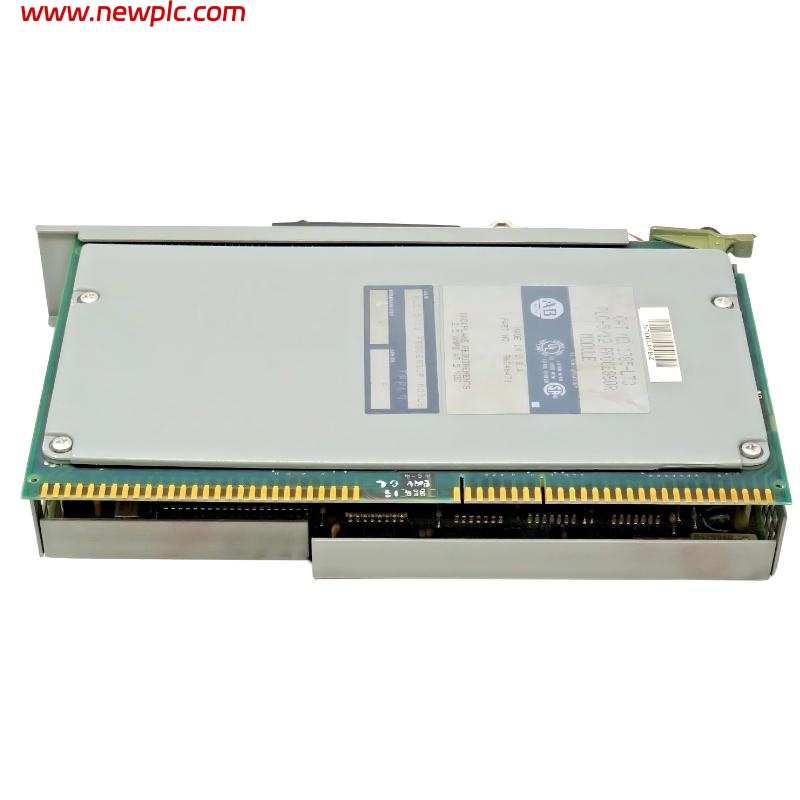

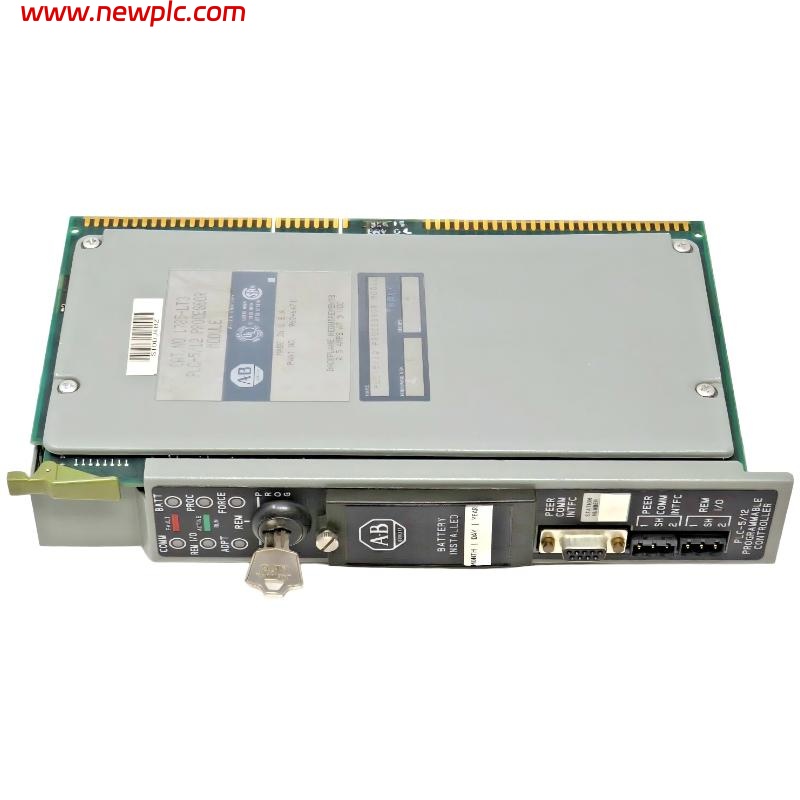

| Product Name | Allen-Bradley 1785-LT3 |
| Product Type | PLC-5/12 Processor Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 I/O platform) |
| Function | Programmable logic controller CPU for small-to-medium industrial automation systems |
| User Memory | 6K words SRAM |
| I/O Capacity | Up to 512 I/O points |
| Communication Ports | DH+, Remote I/O (adapter/scanner), RS-232/422/423 serial |
| Remote I/O Support | Up to 32 remote I/O racks (system dependent) |
| Control Coprocessor Port | Yes |
| Programming Software | RSLogix 5 |
| Backplane Current | ~2.5 A @ 5 V DC |
| Power Dissipation | ~17 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 1–2 g (10–500 Hz, depending on reference) |
| Shock | 30 g operating / 50 g non-operating |
| Dimensions (H × W × D) | ~133 mm × 280 mm × 50 mm |
| Weight | ~1.3–1.5 kg |
FAQ
FAQ
Q1. What is the 1785-LT3 used for?
It is a PLC-5/12 processor used for small-to-medium industrial automation control tasks.
Q2. Is it a CPU or communication module?
It is a CPU (processor module), not a communication interface.
Q3. How much memory does it have?
It has 6K words of SRAM for program and data storage.
Q4. What communication networks does it support?
It supports DH+, Remote I/O, and serial communication (RS-232/422/423).
Q5. What is its I/O capacity?
Up to 512 I/O points total, depending on configuration.
Q6. What chassis does it use?
It installs in a 1771 I/O chassis system.
Q7. Does it support remote I/O?
Yes, it supports up to 32 remote I/O racks.
Q8. Is it still in production?
No, it is a legacy PLC-5 controller used mainly for maintaining existing systems.
