Technical Specifications
| Parameter | Details |
|---|---|

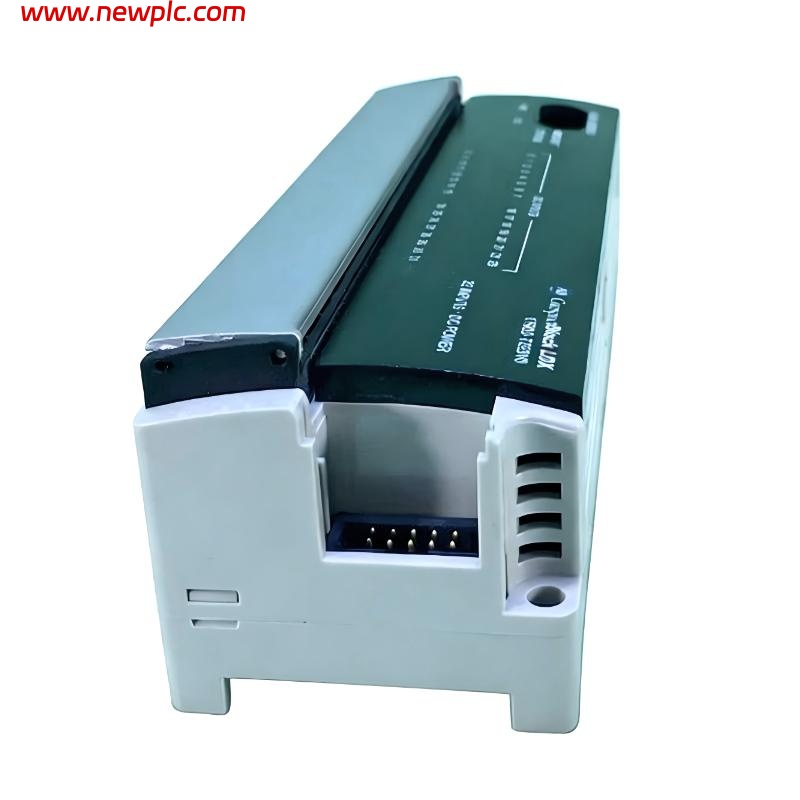

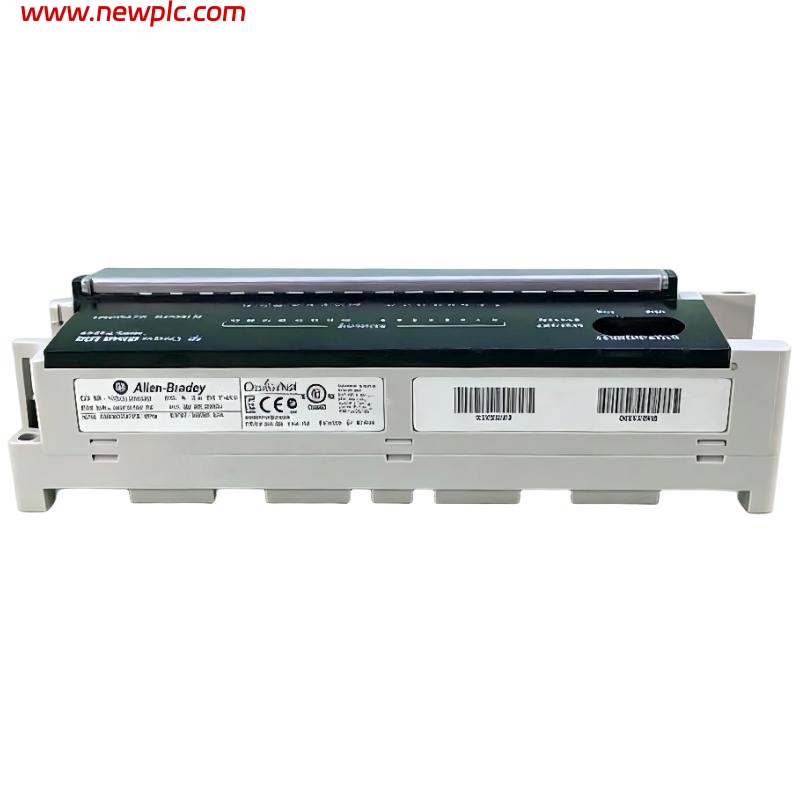

| Product Name | Allen-Bradley 1790D-T32BV0 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | CompactBlock LDX |
| Product Type | DeviceNet Distributed I/O Digital Input Base Block |
| Function | 32-point universal DC digital input module |
| Network Protocol | DeviceNet |
| Number of Inputs | 32 points |
| Input Type | Universal (sinking / sourcing) |
| Input Voltage | 24 VDC nominal |
| Voltage Range | 9.6 to 28.8 VDC |
| Input Current | 8 mA max per channel |
| Input Impedance | 4.8 kΩ nominal |
| Isolation | 1250V AC RMS (I/O to logic) |

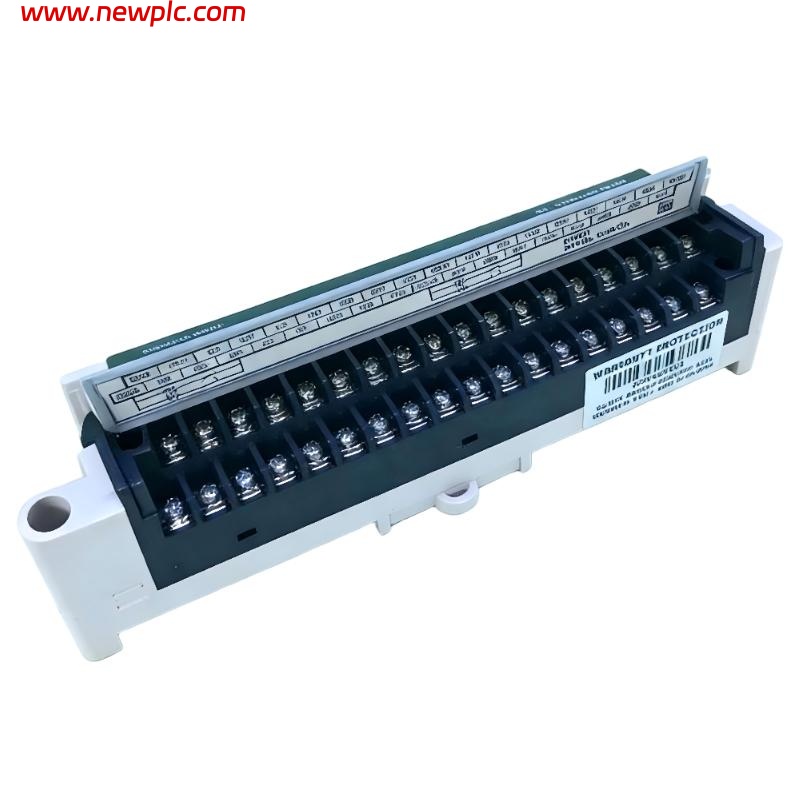

| Connection Type | Screw-clamp terminal block |
| Indicators | 32 status LEDs (one per channel) |
| Communication Rate | 125 / 250 / 500 kbps (DeviceNet) |
| Mounting Type | DIN rail (35 mm) / panel mount |
| Enclosure Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Physical Dimensions (L × W × H) | 21.79 × 9.20 × 8.61 cm |
| Weight | ~0.40–0.50 kg |
FAQ
FAQ
Q1. What is the main function of the 1790D-T32BV0?
It is a 32-point universal digital input module used for collecting field signals in DeviceNet distributed I/O systems.
Q2. What type of inputs does it support?
It supports both sinking (NPN) and sourcing (PNP) input devices, offering flexible wiring options.
Q3. What is the input voltage range?
It operates with a nominal 24 VDC input, with a range from 9.6 to 28.8 VDC.
Q4. How many input channels are available?
It provides 32 digital input channels in a single compact base block.
Q5. What type of network does it use?
It communicates via the DeviceNet protocol with selectable baud rates.
Q6. How is the module installed?
It can be mounted on a 35 mm DIN rail or directly on a panel.
Q7. What are the physical dimensions and weight?
It measures approximately 21.79 × 9.20 × 8.61 cm and weighs about 0.40–0.50 kg.
Q8. What applications is this module suitable for?
It is commonly used in high-density input applications such as conveyor systems, assembly lines, and multi-sensor industrial setups.
