Technical Specifications
| Parameter | Details |
|---|---|

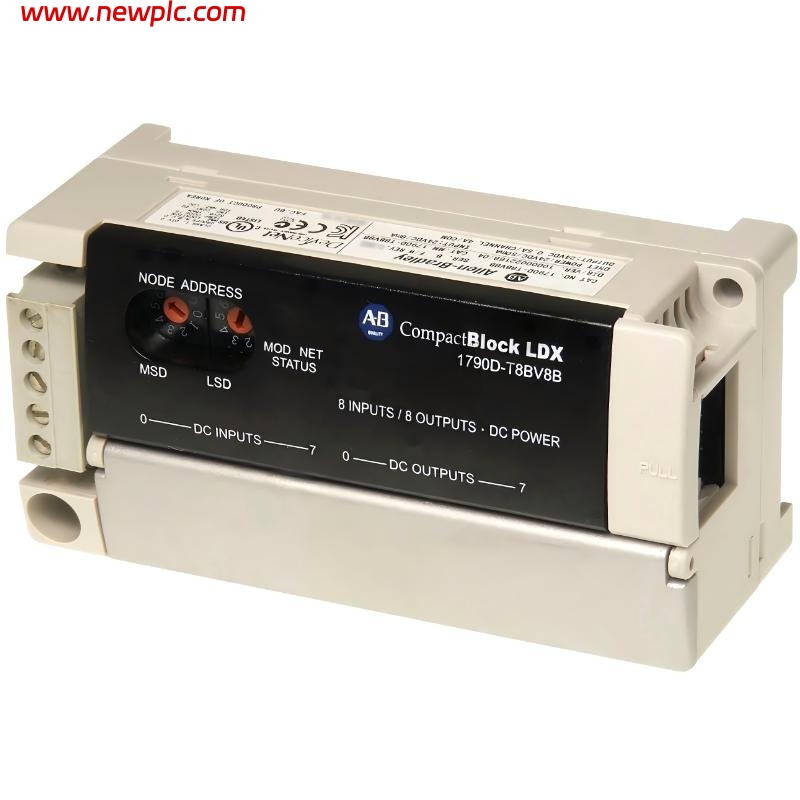

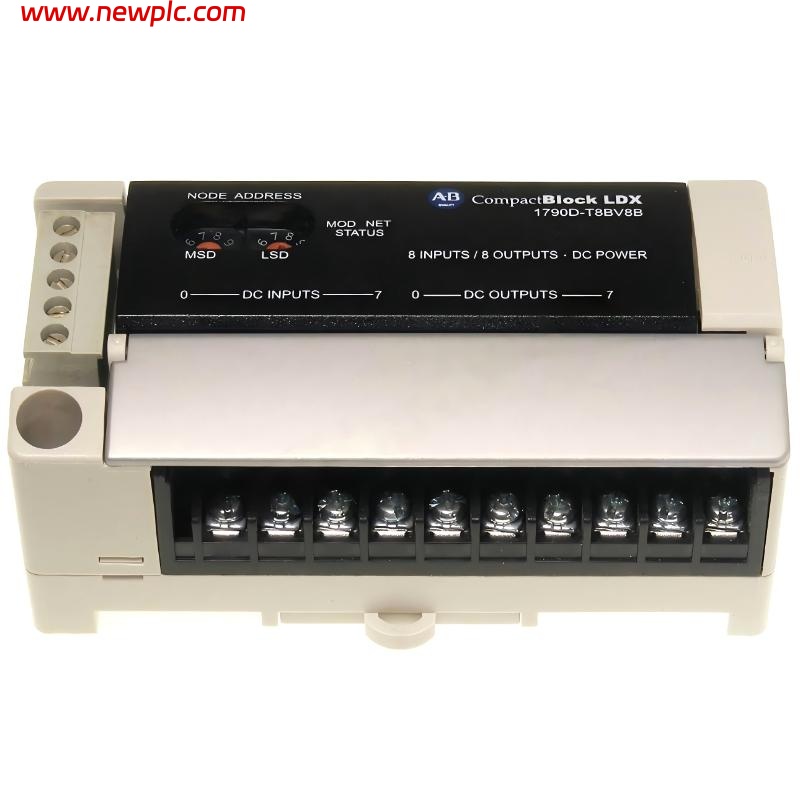

| Product Name | Allen-Bradley 1790D-T8BV8B |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | CompactBlock LDX |
| Product Type | DeviceNet Distributed I/O Base Block |
| Function | 8-point universal input + 8-point sourcing output module |
| Network Protocol | DeviceNet |
| Input Type | 24 VDC universal (sinking/sourcing) |
| Output Type | 24 VDC sourcing |
| Number of Inputs | 8 points |
| Number of Outputs | 8 points |
| Input Voltage Range | 9.6 to 28.8 VDC |
| Output Voltage | 24 VDC nominal |
| Field Power | 24 VDC |
| Input Current | ~8 mA per point |
| Input Impedance | 4.8 kΩ |
| Isolation Voltage | 1250 V AC (I/O to system) |
| Communication Rate | 125 / 250 / 500 kbps (DeviceNet selectable) |
| Connection Type | Screw-clamp terminal block |
| Indicators | Individual LED status per I/O point |
| Mounting Type | DIN rail / panel mount |
| Enclosure Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Physical Dimensions (L × W × H) | 11.4 × 5.1 × 4.6 cm |
| Weight | ~0.14–0.20 kg |
