Technical Specifications
| Parameter | Details |
|---|---|

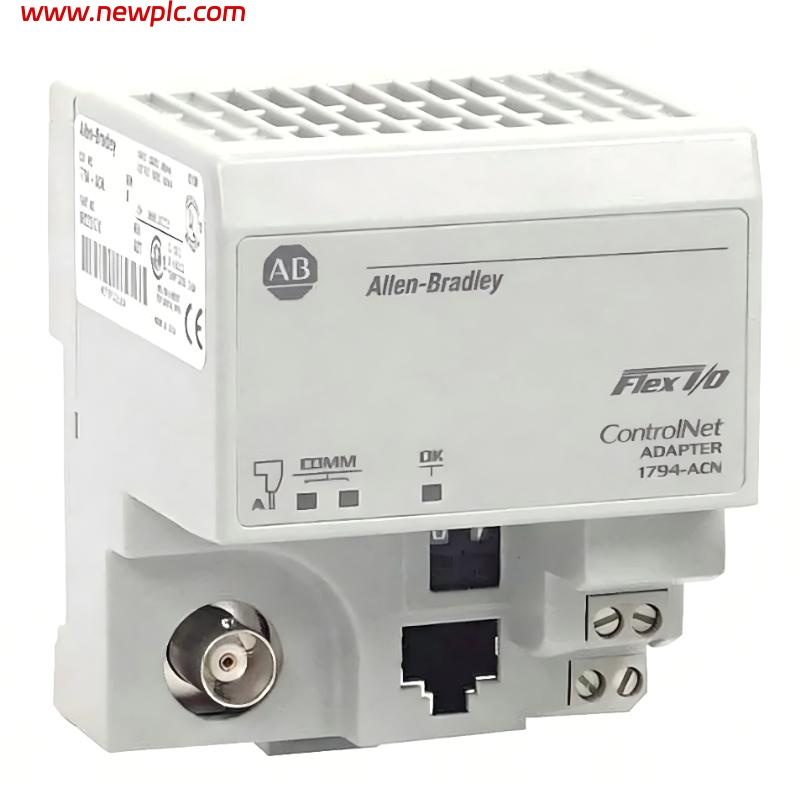

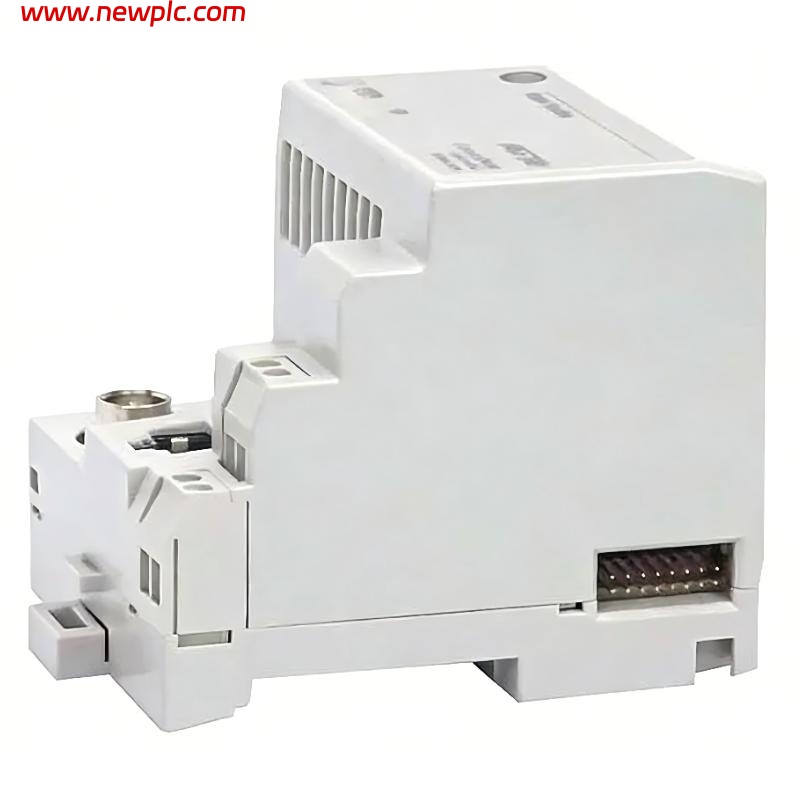

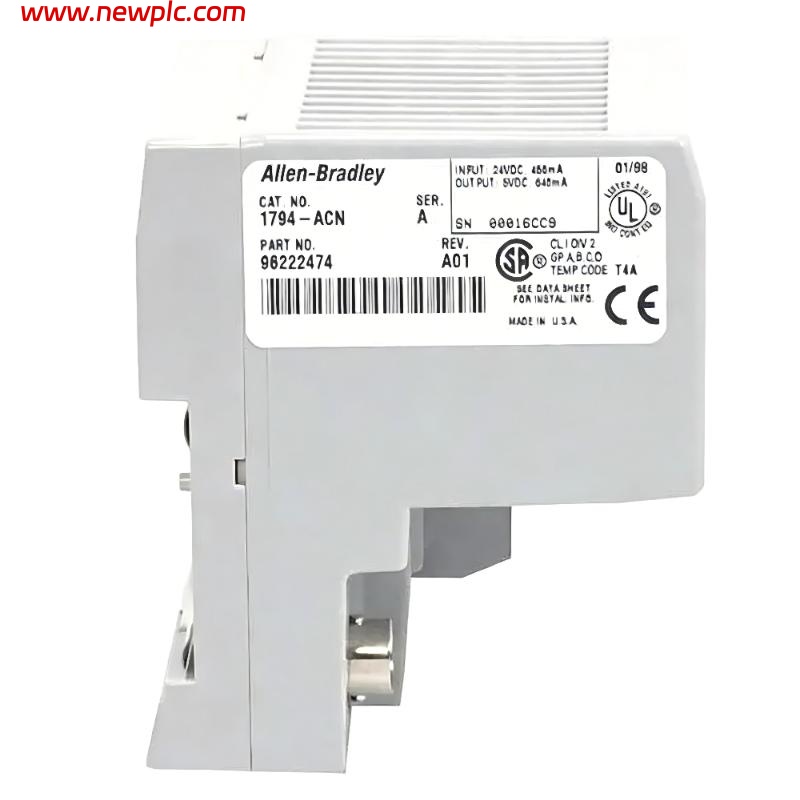

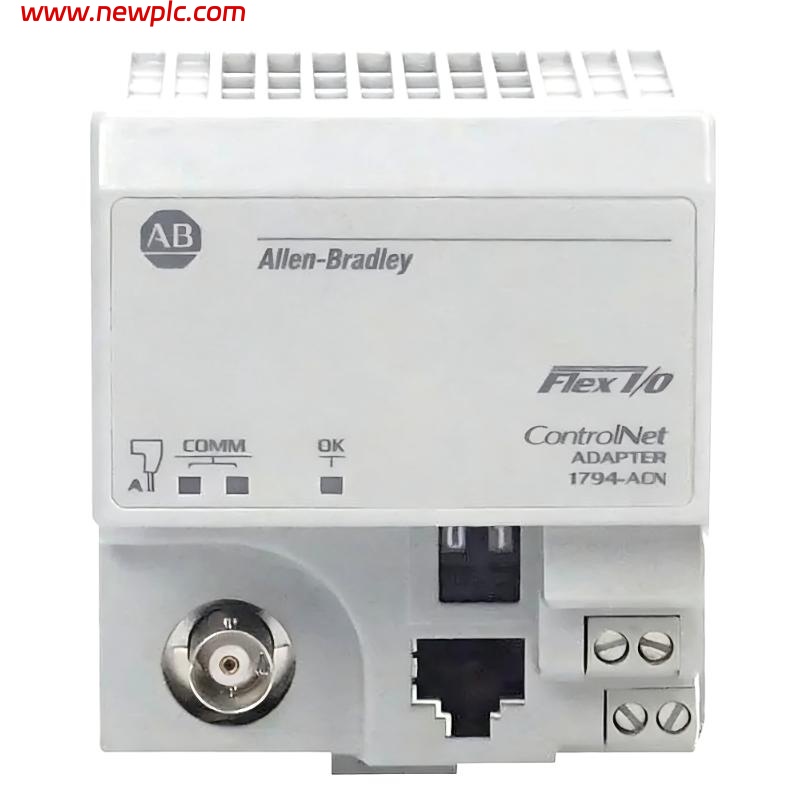

| Product Name | Allen-Bradley 1794-ACN |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | FLEX I/O 1794 |
| Product Type | ControlNet Communication Adapter |
| Function | FLEX I/O network adapter for ControlNet systems |
| Network Protocol | ControlNet |
| Communication Rate | 5 Mbps |
| I/O Capacity | Supports up to 8 FLEX I/O modules |
| Maximum I/O Points | Up to 256 digital I/O / 64 analog inputs / 32 analog outputs (system dependent) |
| Field Power Supply | 24 VDC (19.2 to 31.2 VDC operating range) |
| FlexBus Power Output | 5 VDC backplane power for I/O modules |
| FlexBus Current | up to 640 mA @ 5 VDC |
| Power Consumption | ~400 mA max from 24 VDC supply |
| Isolation Voltage | ~850 VDC (system isolation) |
| Network Media | RG-6 coaxial cable (ControlNet trunk line) |
| Connector Type | BNC (ControlNet taps) |
| Diagnostics | Status LEDs (Network, Module, I/O) |
| Mounting Type | DIN rail / panel mount |
| Enclosure Rating | IP20 |
| Operating Temperature | -25 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Physical Dimensions (H × W × D) | ~102 × 104 × 135 mm |
| Weight | ~0.29 kg |
FAQ
FAQ
Q1. What is the main function of the 1794-ACN?
It is a ControlNet adapter used to connect FLEX I/O modules to a ControlNet network in industrial automation systems.
Q2. What network does it use?
It uses the ControlNet communication protocol operating at 5 Mbps over coaxial cable.
Q3. How many I/O modules can it support?
It can support up to 8 FLEX I/O modules on a single adapter.
Q4. What is the role of the internal power supply?
It converts 24 VDC field power into 5 VDC to power the FLEX I/O backplane and modules.
Q5. What types of I/O configurations are possible?
It supports combinations such as digital I/O (up to 256 points) and analog I/O modules depending on system setup.
Q6. What type of cabling is required?
It uses RG-6 coaxial cable with BNC connectors for ControlNet trunk connections.
Q7. What are the physical size and weight?
It measures approximately 102 × 104 × 135 mm and weighs around 0.29 kg.
Q8. What applications is it typically used for?
It is used in industrial automation systems requiring deterministic high-speed communication between PLCs and distributed FLEX I/O racks.
