Technical Specifications
| Parameter | Details |
|---|---|

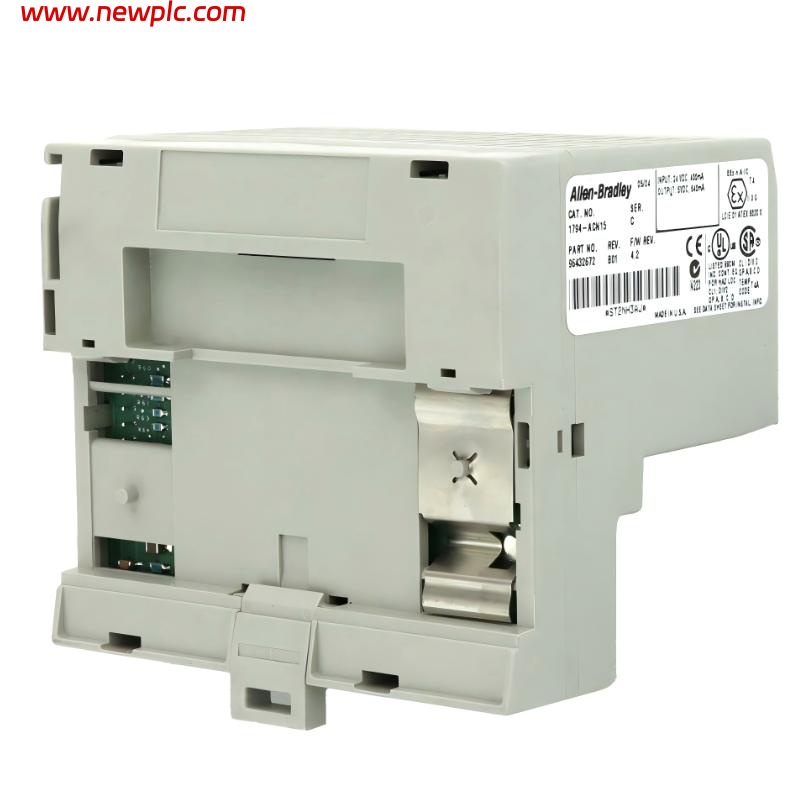

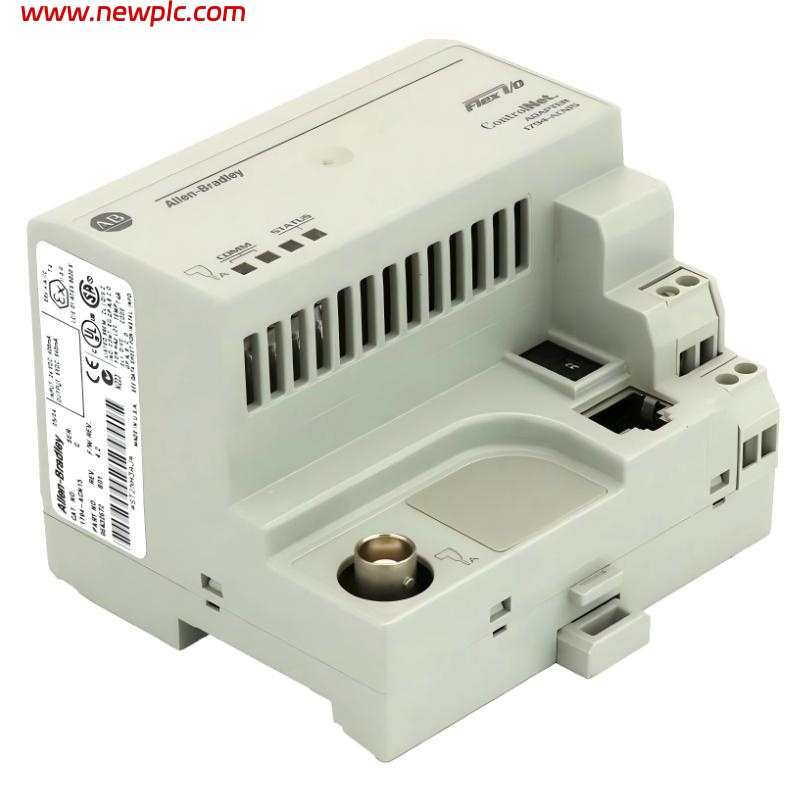

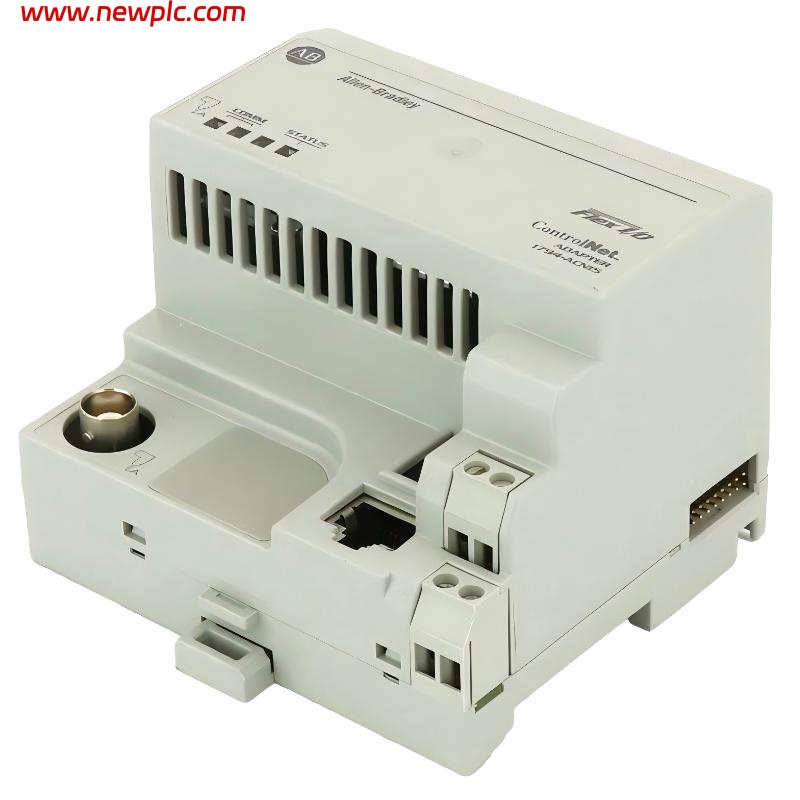

| Product Name | Allen-Bradley 1794-ACN15 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | FLEX I/O 1794 |
| Product Type | ControlNet Communication Adapter (Single Media) |
| Function | Interface between FLEX I/O system and ControlNet network |
| Network Protocol | ControlNet |
| Communication Rate | 5 Mbps |
| Media Type | RG-6 coaxial cable |
| Connector Type | BNC |
| Power Supply | 24 VDC (19.2 to 31.2 VDC) |
| FlexBus Output Current | up to 640 mA @ 5 VDC |
| Power Consumption | ~3.4–4.6 W typical |
| Isolation Voltage | up to 850 VDC |
| Maximum Inrush Current | ~23 A (2 ms) |
| I/O Capacity | Supports up to 8 FLEX I/O modules |
| System Capacity | Up to 256 digital I/O points (system dependent) |
| Diagnostics | Status LEDs (Network, Module, I/O) |
| Mounting Type | DIN rail / panel mount |
| Enclosure Rating | IP20 (open-style module) |
| Operating Temperature | -25 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Physical Dimensions (H × W × D) | 87.4 × 94 × 92 mm |
| Weight | ~0.22 kg |
FAQ
FAQ
Q1. What is the main function of the 1794-ACN15?
It is a ControlNet communication adapter used to connect FLEX I/O modules to a ControlNet network in distributed control systems.
Q2. What network does it use?
It uses the ControlNet protocol operating at 5 Mbps over RG-6 coaxial cable.
Q3. How many I/O modules can it support?
It can support up to 8 FLEX I/O modules depending on system configuration.
Q4. What is the power requirement?
It operates on 24 VDC input power with a range of 19.2 to 31.2 VDC.
Q5. What is FlexBus output current used for?
It supplies 5 VDC power to FLEX I/O modules on the backplane, up to 640 mA.
Q6. What type of connector is used for the network?
It uses BNC connectors for ControlNet coaxial cabling.
Q7. What are the physical size and weight?
It measures 87.4 × 94 × 92 mm and weighs approximately 0.22 kg.
Q8. What applications is it typically used for?
It is used in industrial automation systems requiring deterministic high-speed communication between PLCs and distributed FLEX I/O racks.
