Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O |

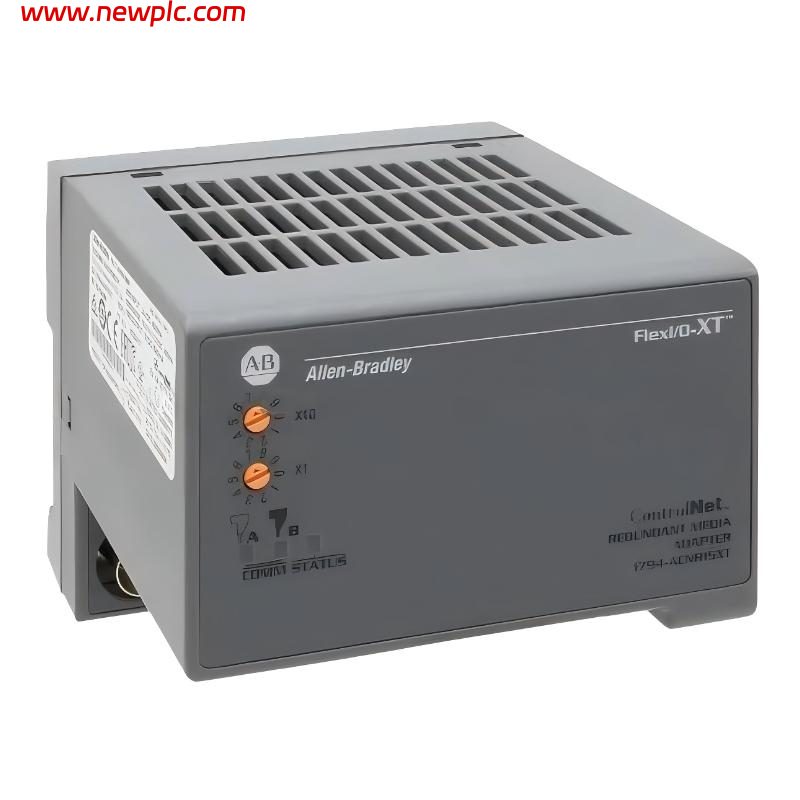

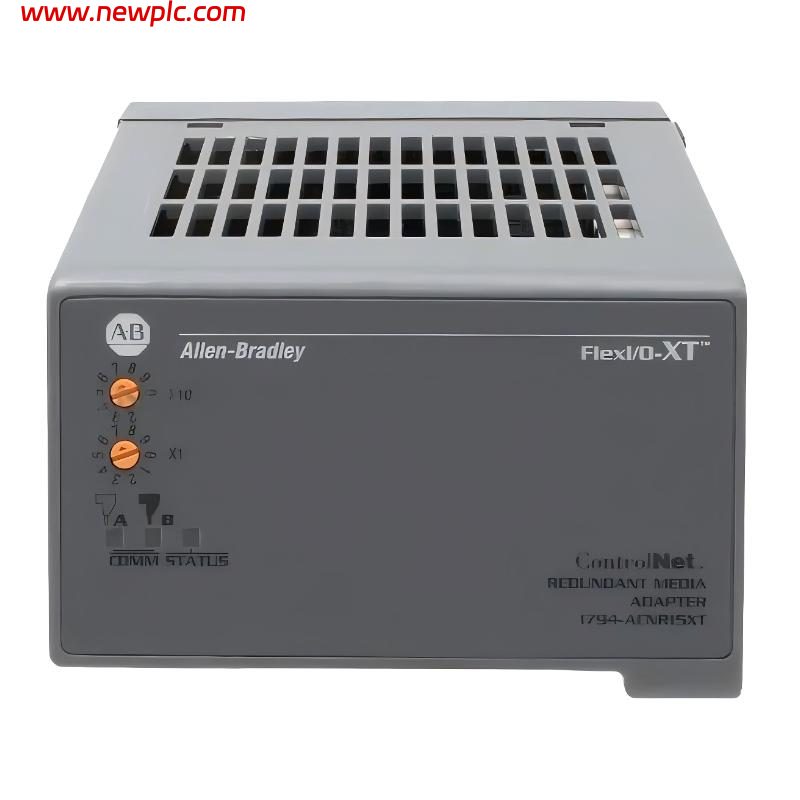

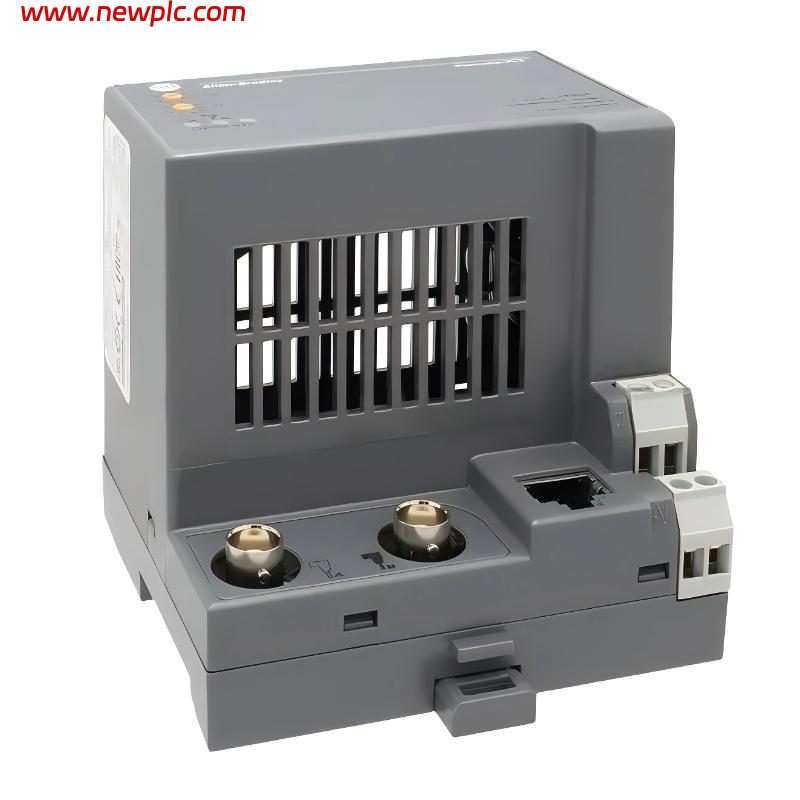

| Model Number | 1794-ACNR15XT |
| Product Type | ControlNet Redundant Adapter Module |
| Communication Protocol | ControlNet |
| Adapter Type | Redundant Media Adapter |
| Supported Media | Coaxial ControlNet |
| Communication Speed | 5 Mbps |
| Maximum I/O Modules Supported | 8 FLEX I/O Modules |
| Input Voltage Range | 19.2 to 31.2V DC |
| Nominal Input Voltage | 24V DC |
| Power Consumption | Approx. 400 mA @ 24V DC |
| Backplane Current Output | 640 mA at 5V DC |
| Isolation Voltage | 850V DC Tested |
| Redundant Media Support | Yes |
| Address Configuration | Rotary Switches |
| Wiring Connection | BNC Connectors |
| Status Indicators | Module Status, Network Status, I/O Status LEDs |
| Mounting Type | DIN Rail Mount |
| Enclosure Rating | Open Type |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, CSA, FM Class 1 Div 2 |
| Lifecycle Status | Active Mature |
| Dimensions | Approx. 87 x 94 x 69 mm |
| Weight | Approx. 0.18 kg |
| Typical Applications | Distributed I/O Systems, Redundant ControlNet Networks, Industrial Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-ACNR15XT used for?
A1: The 1794-ACNR15XT is a FLEX I/O redundant ControlNet adapter module used to connect FLEX I/O systems to redundant ControlNet communication networks in industrial automation applications.
Q2: What communication protocol does the 1794-ACNR15XT support?
A2: The module supports the ControlNet industrial communication protocol with redundant media capability.
Q3: How many FLEX I/O modules can the 1794-ACNR15XT support?
A3: The adapter can support up to 8 FLEX I/O modules connected on the local backplane.
Q4: Does the 1794-ACNR15XT support redundant media communication?
A4: Yes. The module supports redundant coaxial ControlNet media connections for improved network reliability and uptime.
Q5: What power supply is required for the 1794-ACNR15XT?
A5: The module operates using a nominal 24V DC power supply with an input voltage range of 19.2 to 31.2V DC.
Q6: What mounting method is used for the 1794-ACNR15XT?
A6: The adapter is designed for DIN rail mounting inside industrial control panels and automation enclosures.
Q7: Is the 1794-ACNR15XT suitable for harsh industrial environments?
A7: Yes. The module supports extended operating temperatures from -20°C to 70°C and includes industrial vibration and shock resistance ratings.
Q8: What are the common applications of the 1794-ACNR15XT?
A8: Common applications include distributed I/O systems, redundant ControlNet communication networks, process automation, manufacturing systems, and critical industrial control applications.
