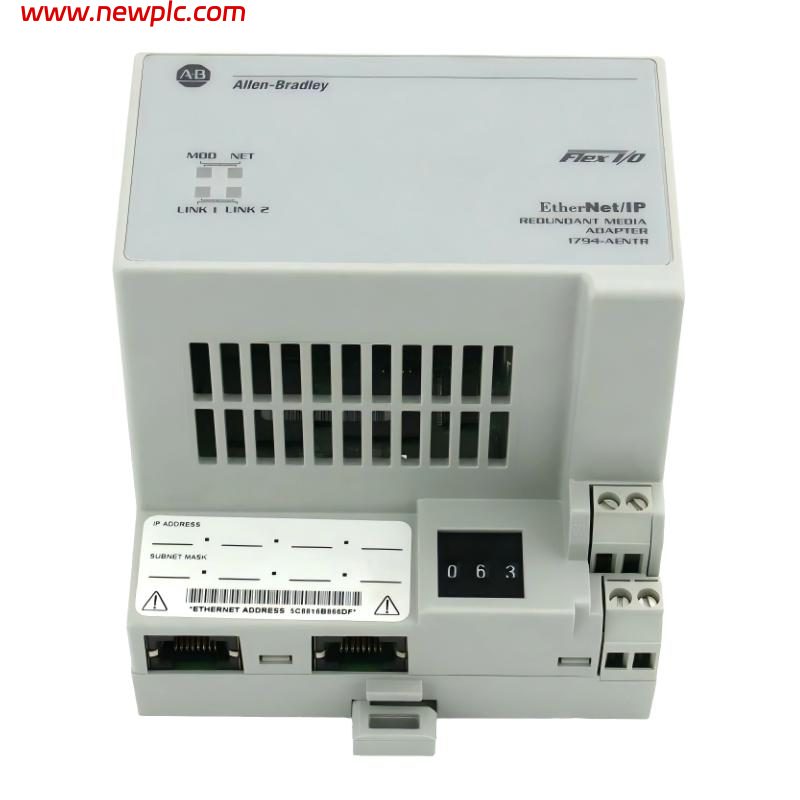

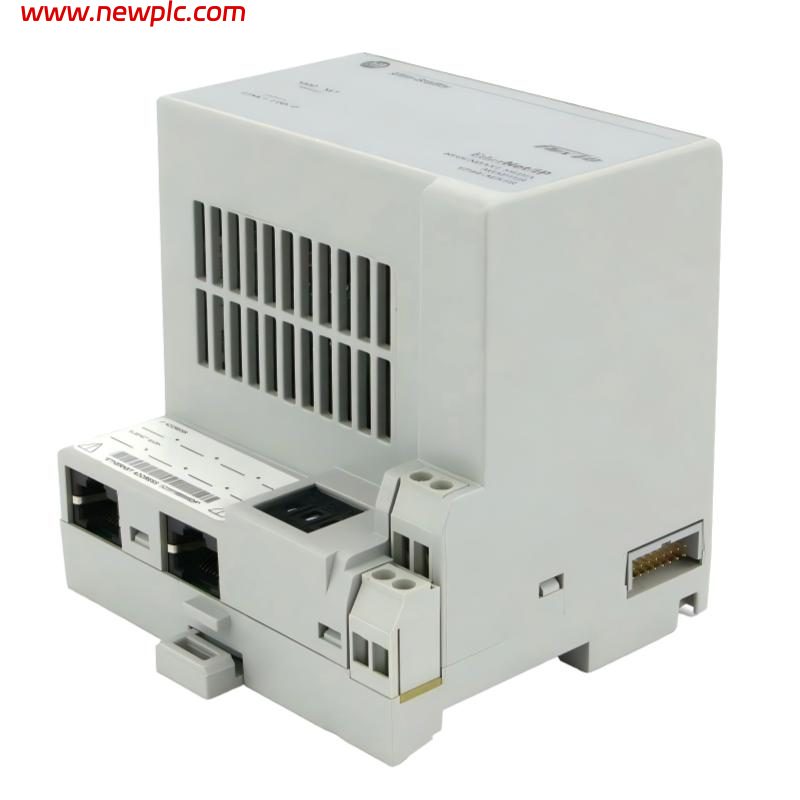

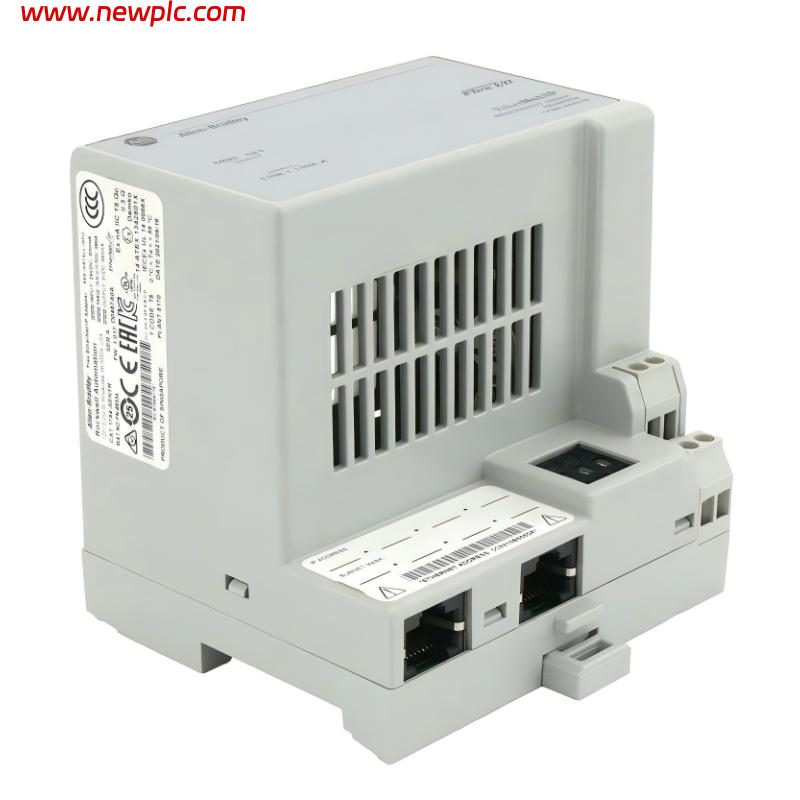

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O |
| Model Number | 1794-AENTR |
| Product Type | Dual Ethernet/IP Adapter Module |
| Communication Protocol | EtherNet/IP |
| Ethernet Ports | 2 RJ45 Ports |
| Network Speed | 10/100 Mbps |
| Network Topology | Linear, Star, DLR (Device Level Ring) |
| Supported I/O Modules | Up to 8 FLEX I/O Modules |
| Input Voltage Range | 19.2 to 31.2V DC |
| Nominal Input Voltage | 24V DC |
| Backplane Current Output | 640 mA at 5V DC |
| Power Consumption | Approx. 400 mA @ 24V DC |
| Isolation Voltage | 850V DC Tested |
| Address Configuration | Rotary Switches and BOOTP/DHCP |
| Status Indicators | Module Status, Network Status, Link Activity LEDs |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| Supported Communication | Implicit Messaging, Explicit Messaging |
| Compatible Controllers | ControlLogix, CompactLogix |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, CSA, FM Class 1 Div 2 |
| Lifecycle Status | Active Mature |
| Dimensions | Approx. 87 x 94 x 69 mm |
| Weight | Approx. 0.18 kg |
| Typical Applications | Distributed I/O Systems, EtherNet/IP Networks, Industrial Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-AENTR used for?
A1: The 1794-AENTR is a FLEX I/O dual Ethernet/IP adapter module used to connect FLEX I/O systems to EtherNet/IP industrial communication networks.
Q2: How many Ethernet ports does the 1794-AENTR provide?
A2: The module includes two 10/100 Mbps RJ45 Ethernet ports for network connectivity and Device Level Ring (DLR) support.
Q3: What network topologies are supported by the 1794-AENTR?
A3: The adapter supports linear, star, and Device Level Ring (DLR) network topologies.
Q4: How many FLEX I/O modules can be connected to the 1794-AENTR?
A4: The module can support up to 8 FLEX I/O modules on the local backplane.
Q5: What controllers are compatible with the 1794-AENTR?
A5: The adapter is compatible with Allen-Bradley ControlLogix and CompactLogix controllers using EtherNet/IP communication.
Q6: How is the IP address configured on the 1794-AENTR?
A6: The IP address can be configured using rotary switches, BOOTP, or DHCP server assignment methods.
Q7: Is the 1794-AENTR suitable for industrial environments?
A7: Yes. The module supports industrial operating conditions with extended temperature ratings, vibration resistance, and Class 1 Division 2 certification.
Q8: What are the common applications of the 1794-AENTR?
A8: Common applications include distributed I/O systems, industrial Ethernet communication, manufacturing automation, process control systems, and machine control applications.
