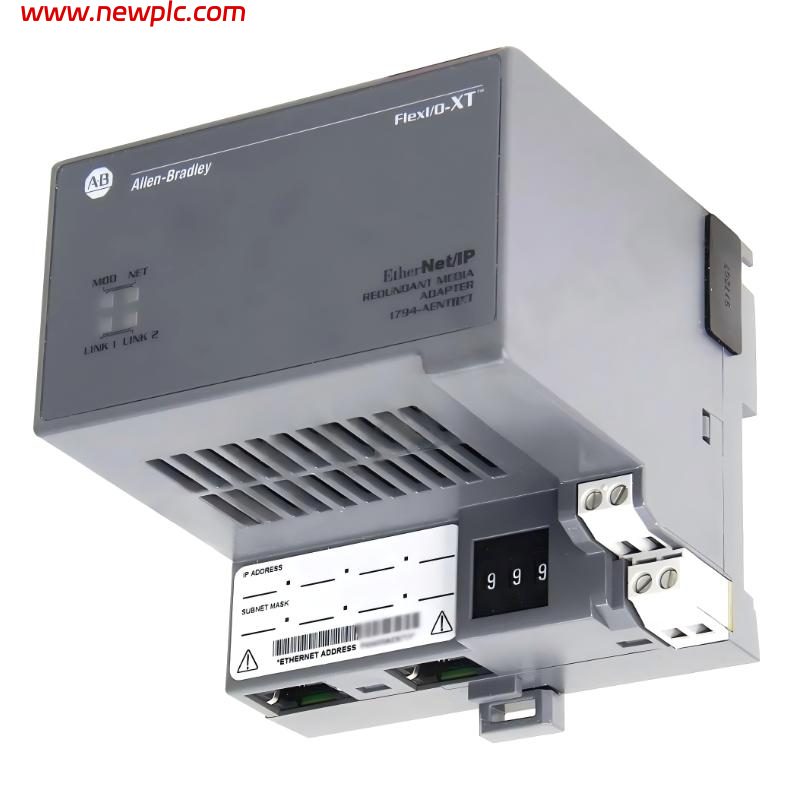

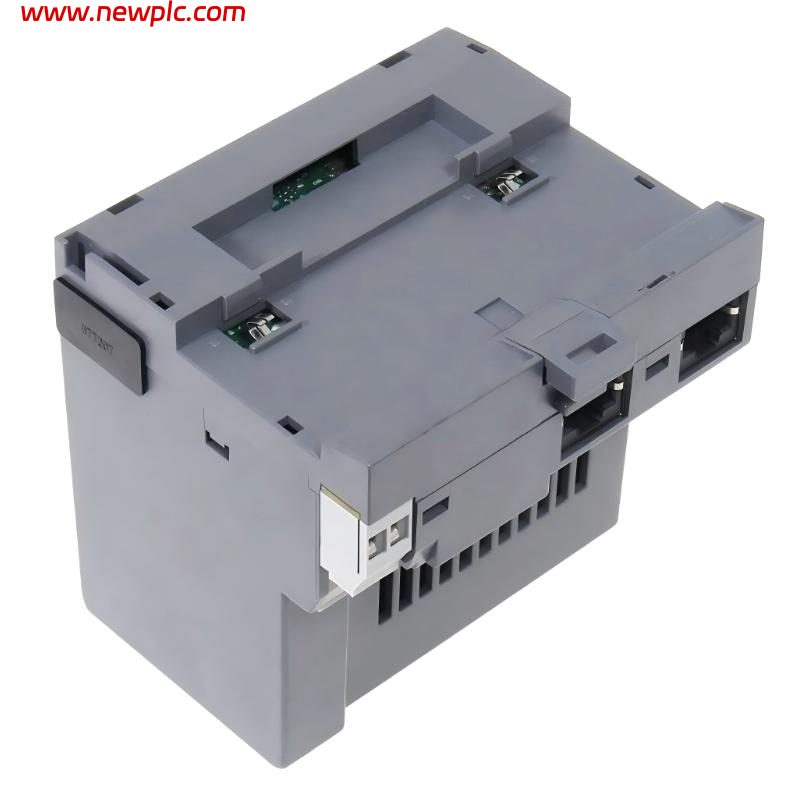

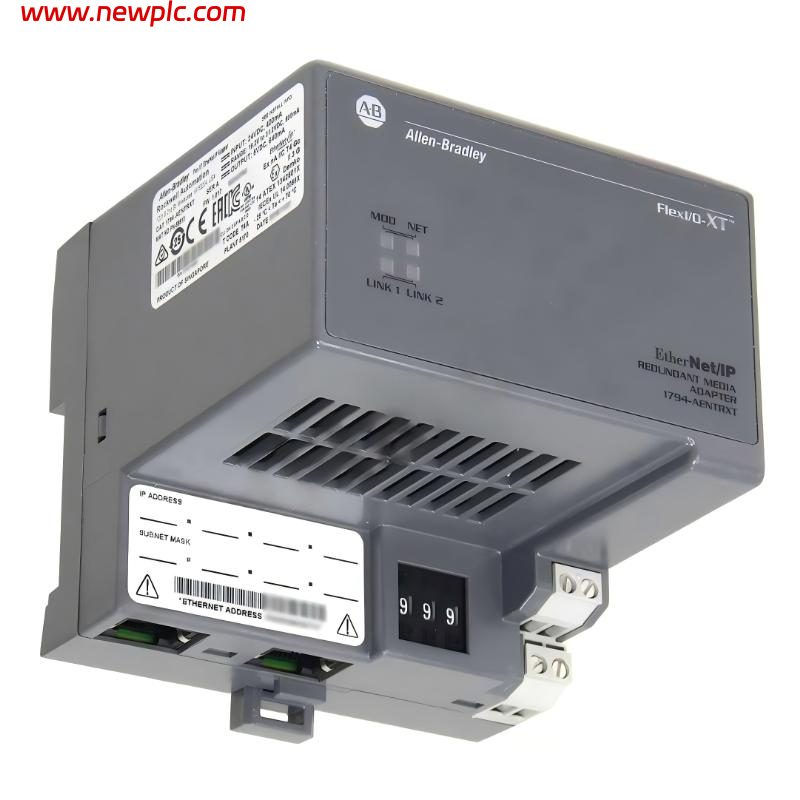

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O XT |
| Model Number | 1794-AENTRXT |
| Product Type | Dual Ethernet/IP XT Adapter Module |
| Communication Protocol | EtherNet/IP |
| Ethernet Ports | 2 RJ45 Ports |
| Network Speed | 10/100 Mbps |
| Network Topology | Linear, Star, Device Level Ring (DLR) |
| Supported I/O Modules | Up to 8 FLEX I/O Modules |
| Input Voltage Range | 19.2 to 31.2V DC |
| Nominal Input Voltage | 24V DC |
| Backplane Current Output | 640 mA at 5V DC |
| Power Consumption | Approx. 400 mA @ 24V DC |
| Isolation Voltage | 850V DC Tested |
| Address Configuration | Rotary Switches, BOOTP, DHCP |
| Status Indicators | Module Status, Network Status, Link Activity LEDs |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| XT Environment Rating | Extended Temperature and Harsh Environment Support |
| Compatible Controllers | ControlLogix, CompactLogix |
| Supported Communication | Implicit and Explicit Messaging |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, CSA, FM Class 1 Div 2, ATEX |
| Lifecycle Status | Active Mature |
| Dimensions | Approx. 87 x 94 x 69 mm |
| Weight | Approx. 0.19 kg |
| Typical Applications | Harsh Environment Distributed I/O, Industrial Ethernet Networks, Process Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-AENTRXT used for?
A1: The 1794-AENTRXT is a FLEX I/O XT dual Ethernet/IP adapter module designed for connecting FLEX I/O systems to industrial EtherNet/IP networks in harsh environments.
Q2: What is the difference between the 1794-AENTR and 1794-AENTRXT?
A2: The 1794-AENTRXT is the extended-temperature version designed for harsh industrial environments, while the standard 1794-AENTR is intended for general industrial applications.
Q3: How many Ethernet ports are available on the 1794-AENTRXT?
A3: The module includes two RJ45 Ethernet ports supporting 10/100 Mbps communication and Device Level Ring (DLR) topology.
Q4: What network topologies are supported by the 1794-AENTRXT?
A4: The adapter supports linear, star, and Device Level Ring (DLR) EtherNet/IP network topologies.
Q5: How many FLEX I/O modules can be connected to the 1794-AENTRXT?
A5: The adapter supports up to 8 FLEX I/O modules connected on the local FLEX I/O backplane.
Q6: What operating temperature range does the 1794-AENTRXT support?
A6: The module operates in temperatures ranging from -20°C to 70°C, making it suitable for demanding industrial environments.
Q7: How is the IP address configured on the 1794-AENTRXT?
A7: IP addressing can be configured using rotary switches, BOOTP, or DHCP network assignment methods.
Q8: What are the common applications of the 1794-AENTRXT?
A8: Common applications include process automation, outdoor industrial systems, distributed I/O networks, oil and gas facilities, mining operations, and harsh-environment manufacturing systems.
