Technical Specifications
| Parameter | Details |
|---|---|

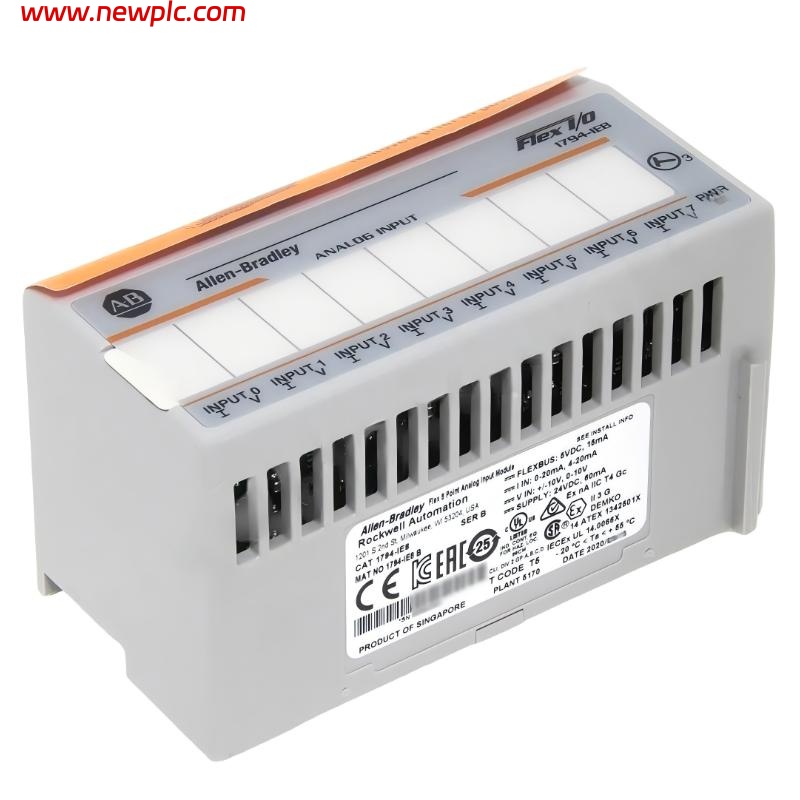

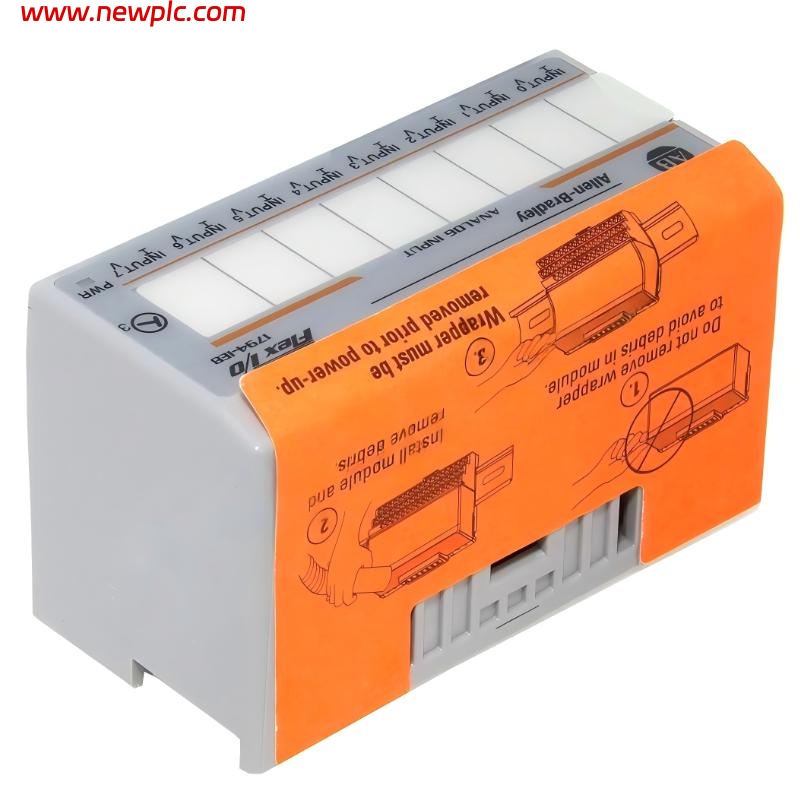

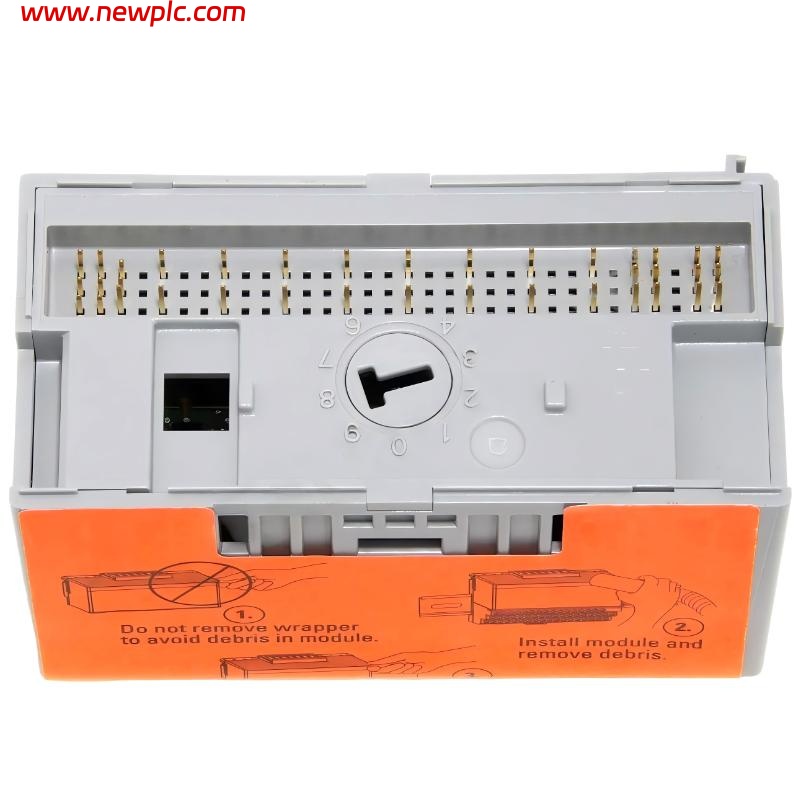

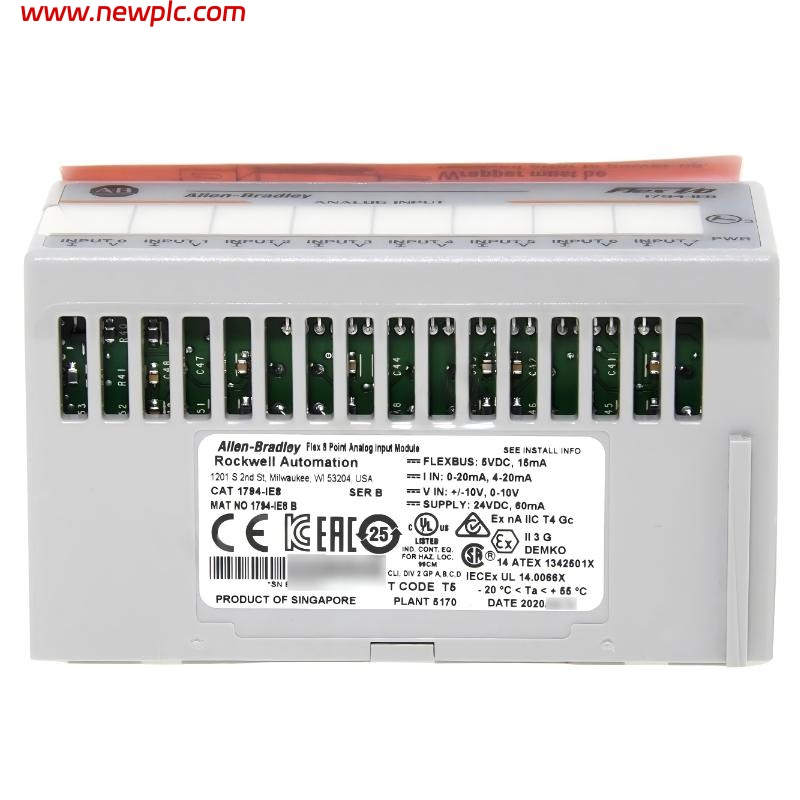

| Product Name | Allen-Bradley 1794-IE8 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | FLEX I/O 1794 |
| Product Type | Analog Input Module |
| Function | 8-point single-ended analog input module |
| Input Channels | 8 channels |
| Input Signal Types | 0–10 VDC, ±10 VDC, 0–20 mA, 4–20 mA |
| Resolution | 12-bit (unipolar), 11-bit (bipolar) |
| Conversion Method | Successive approximation |
| Conversion Rate | ~256 µs (all channels) |
| Accuracy | ~±0.1% full scale @ 25 °C |
| Input Configuration | Non-isolated channels |
| Input Impedance | Voltage: high impedance / Current: low impedance |
| Backplane Current | ~20 mA @ 5 VDC |
| Power Supply | 24 VDC |
| Input Supply Range | 10 to 31.2 VDC |
| Power Dissipation | ~3.0 W max @ 31.2 VDC |
| Isolation Voltage | 50 V continuous (field to system) |
| Diagnostics | Power/status LED |
| Wiring Base | 1794-TB2 / TB3 / TB3S / TB3T compatible |
| Mounting Type | DIN rail |
| Enclosure Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Physical Dimensions (L × W × H) | 5.4 × 9.4 × 4.57 cm |
| Weight | ~0.13 kg |
FAQ
FAQ
Q1. What is the main function of the 1794-IE8?
It is a FLEX I/O analog input module used to read up to 8 analog signals from field instruments such as sensors and transmitters.
Q2. What signal types does it support?
It supports voltage (0–10 V, ±10 V) and current (0–20 mA, 4–20 mA) input signals.
Q3. How many input channels does it have?
It provides 8 single-ended analog input channels.
Q4. What is the resolution of the module?
It offers 12-bit resolution for unipolar and 11-bit resolution for bipolar signals.
Q5. What is the conversion speed?
The module updates all channels in approximately 256 microseconds.
Q6. Does it provide channel isolation?
No, it has non-isolated channels but includes basic isolation between field wiring and system logic.
Q7. What are the physical size and weight?
It measures about 5.4 × 9.4 × 4.57 cm and weighs approximately 0.13 kg.
Q8. What applications is it typically used for?
It is used in industrial automation systems for analog signal monitoring such as pressure, flow, temperature, and level measurement in distributed I/O setups.
