Technical Specifications
| Parameter | Details |
|---|---|

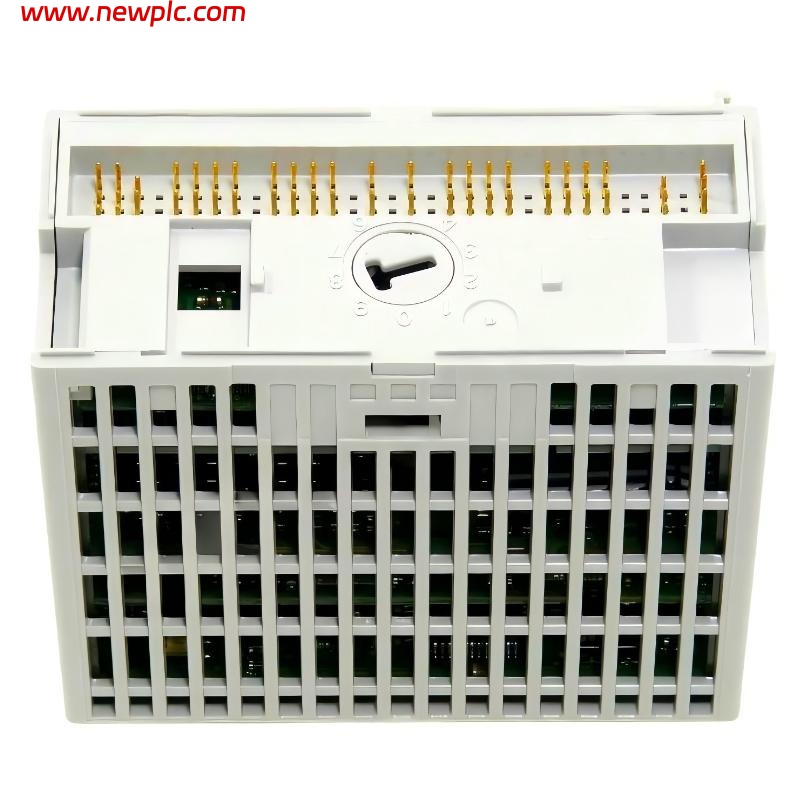

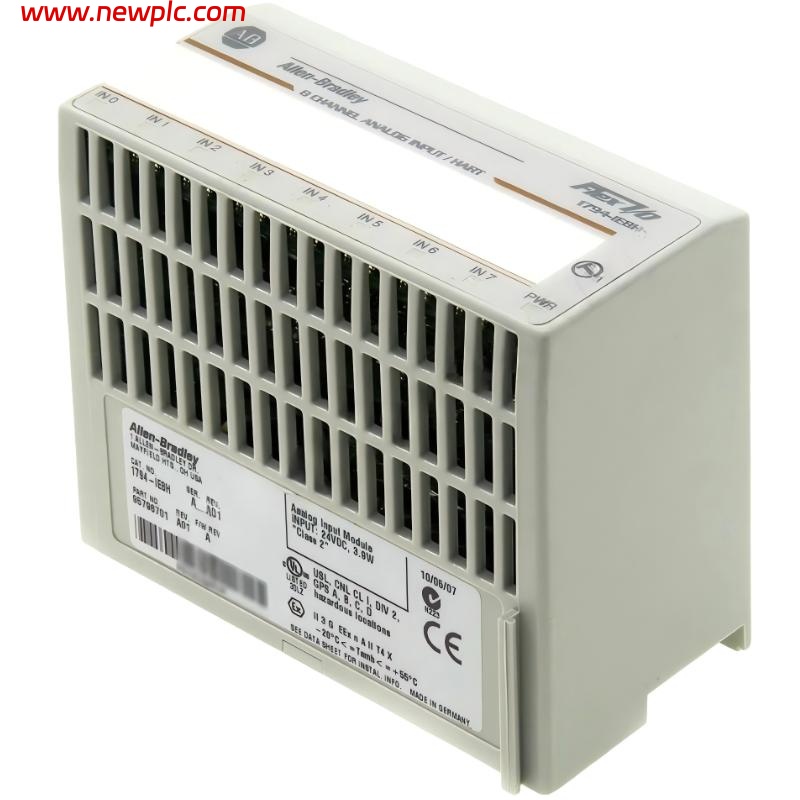

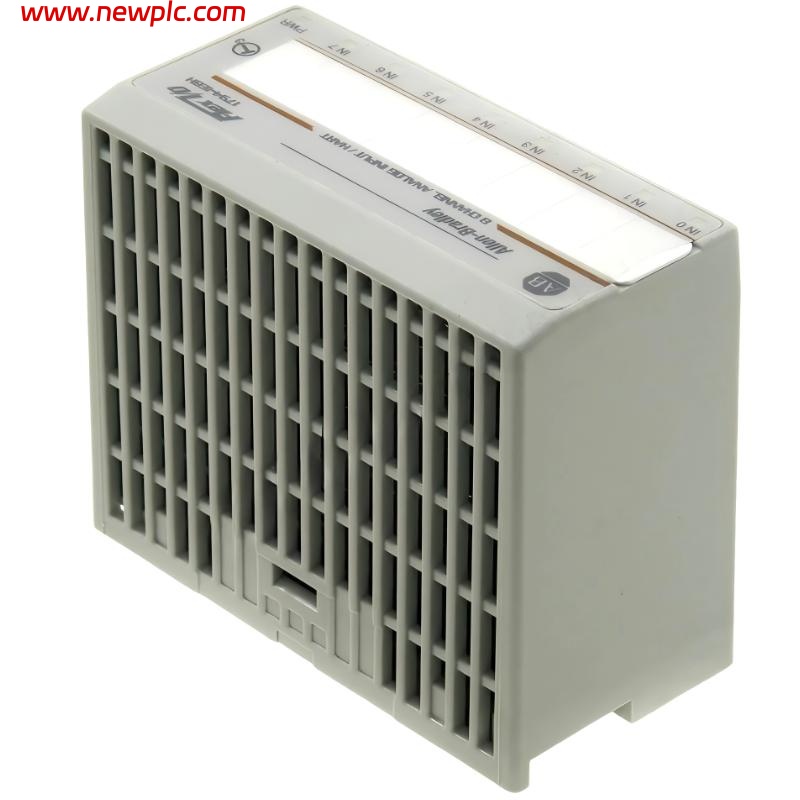

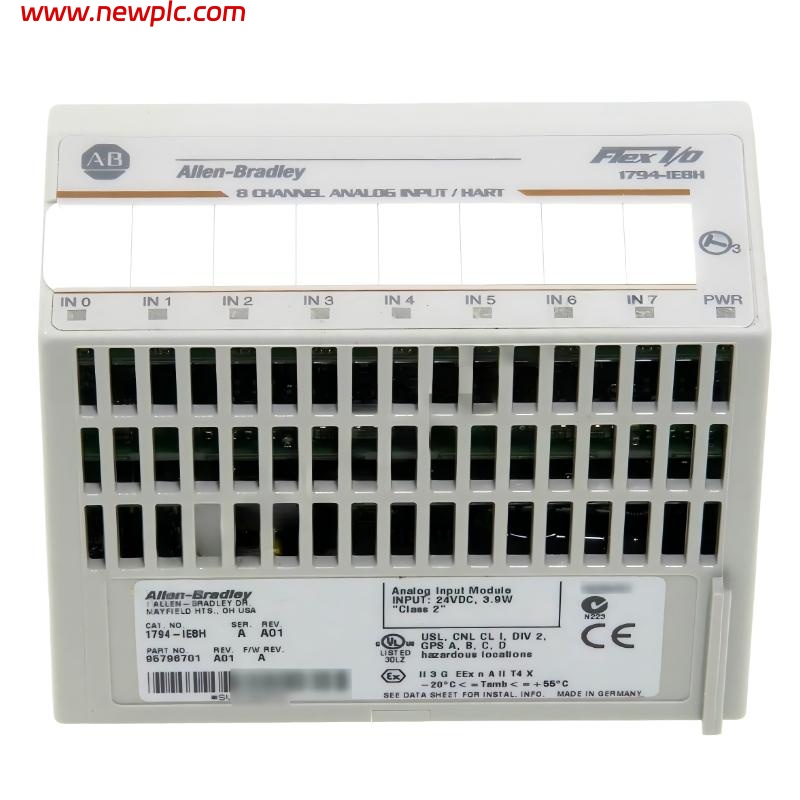

| Product Name | Allen-Bradley 1794-IE8H |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | FLEX I/O 1794 |
| Product Type | High-Resolution Analog Input Module |
| Function | 8-point analog input module (high accuracy version) |
| Input Channels | 8 single-ended inputs |
| Input Signal Types | 0–10 VDC, ±10 VDC, 0–20 mA, 4–20 mA |
| Resolution | 16-bit (high resolution) |
| Conversion Method | Successive approximation |
| Conversion Time | ~8 ms (all channels) |
| Accuracy | ±0.05% full scale @ 25 °C |
| Input Impedance | Voltage: high impedance / Current: low impedance |
| Backplane Current | ~50 mA @ 5 VDC |
| Power Supply | 24 VDC |
| Input Supply Range | 10 to 31.2 VDC |
| Power Dissipation | ~4.5 W max |
| Isolation Voltage | 50 V continuous (field to system) |
| Diagnostics | Module status LED |
| Data Format | 16-bit signed/unsigned |
| Wiring Base | 1794-TB2 / TB3 / TB3S compatible |
| Mounting Type | DIN rail |
| Enclosure Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Physical Dimensions (L × W × H) | 6.9 × 9.4 × 9.4 cm |
| Weight | ~0.18–0.22 kg |
FAQ
FAQ
Q1. What is the main function of the 1794-IE8H?
It is a high-resolution FLEX I/O analog input module used for precise measurement of analog signals in industrial systems.
Q2. How many input channels does it provide?
It provides 8 analog input channels.
Q3. What signal types are supported?
It supports 0–10 VDC, ±10 VDC, 0–20 mA, and 4–20 mA signals.
Q4. What makes it different from the standard IE8?
The IE8H provides higher resolution (16-bit) and improved measurement accuracy.
Q5. What is the conversion speed?
All channels are updated in approximately 8 milliseconds.
Q6. What is the operating temperature range?
It operates between 0 °C and 55 °C under standard industrial conditions.
Q7. What are its physical size and weight?
It measures approximately 6.9 × 9.4 × 9.4 cm and weighs about 0.18–0.22 kg.
Q8. What applications is it typically used for?
It is used in precision industrial automation applications such as process control, instrumentation systems, and high-accuracy sensor monitoring.
