Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O-XT |

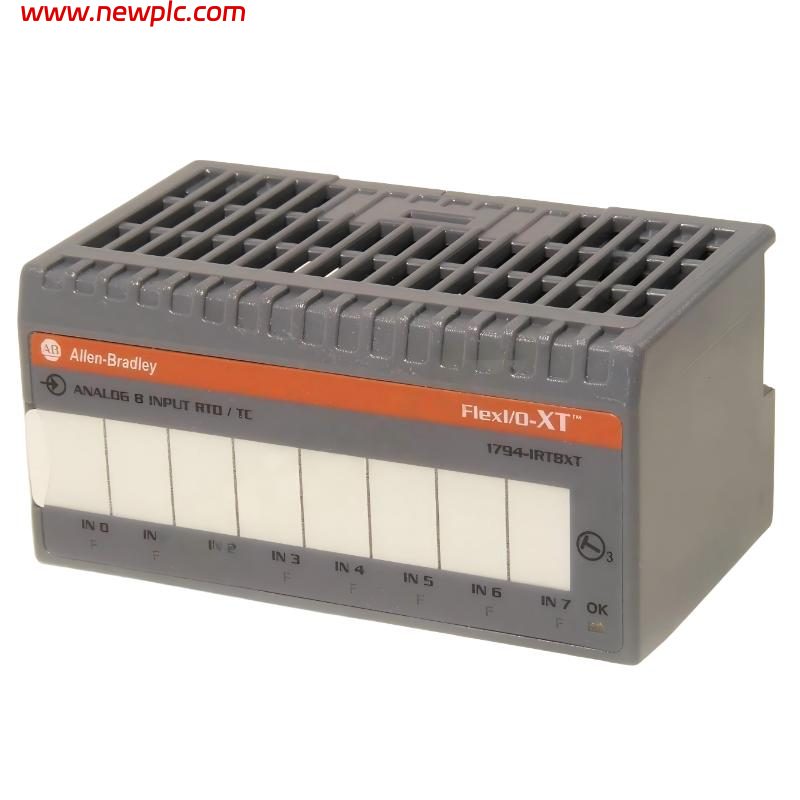

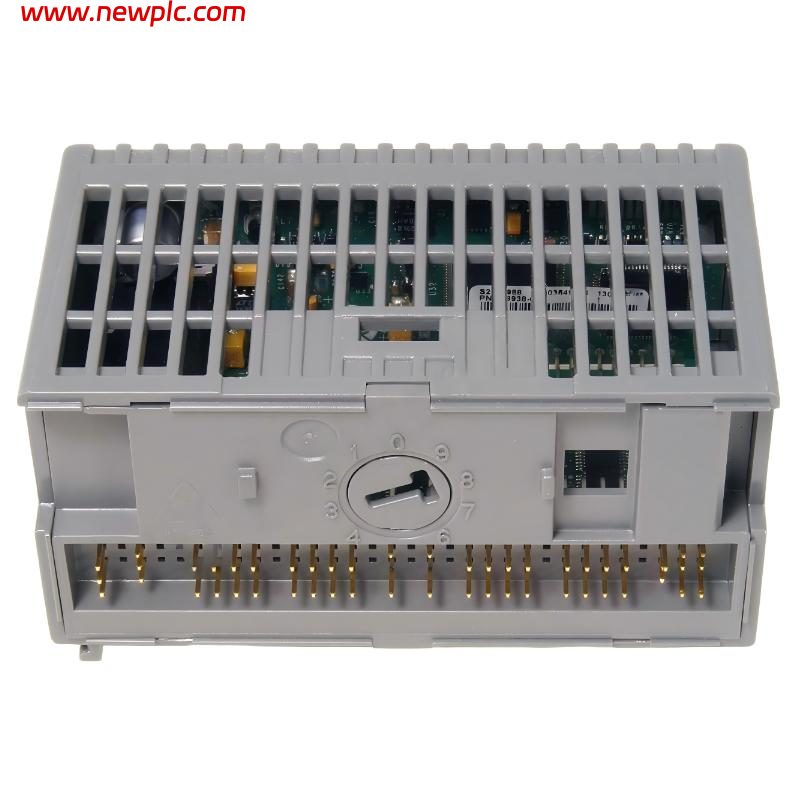

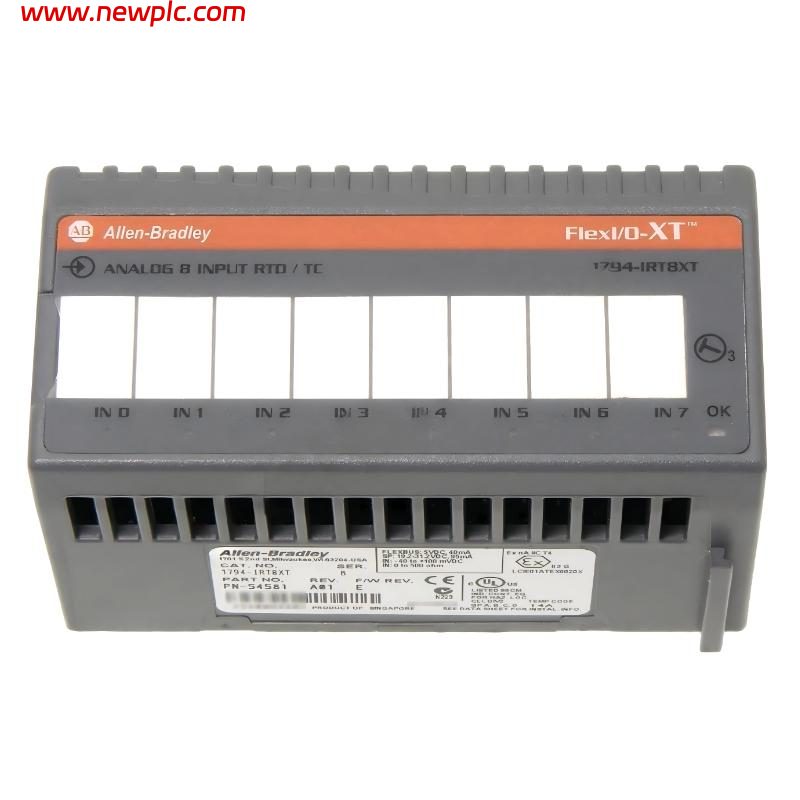

| Model Number | 1794-IRT8XT |
| Product Type | Thermocouple/RTD/mV Analog Input Module |
| Module Type | FLEX XT 8-Channel Temperature Input Module |
| Number of Inputs | 8 Analog Input Channels |
| Input Types | Thermocouple, RTD, Millivolt |
| Supported Thermocouple Types | B, C, E, J, K, N, R, S, T |
| Supported RTD Types | Platinum, Nickel, Copper RTDs |
| Millivolt Input Range | ±100 mV |
| Input Resolution | 14-bit |
| Conversion Type | Sigma-Delta Conversion |
| Isolation | Non-Isolated Inputs |
| Data Formats | °C, °F, °K, Integer, mV, Ω |
| Cold Junction Compensation | Supported |
| Open Circuit Detection | Yes |
| Nominal Supply Voltage | 24V DC |
| Input Voltage Range | 19.2 to 31.2V DC |
| Current Consumption | Approx. 150 mA @ 24V DC |
| FlexBus Current | Approx. 20 mA |
| Compatible Terminal Bases | 1794-TB3XT, 1794-TB3TXTK |
| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| XT Environment Rating | Extended Temperature / Harsh Environment |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, ATEX, IECEx, KC, Marine |
| Lifecycle Status | Active Mature |
| Dimensions | Approx. 46 x 94 x 53 mm |
| Weight | Approx. 0.19 kg |
| Typical Applications | Temperature Monitoring, Process Automation, Harsh Environment Industrial Systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-IRT8XT used for?
A1: The 1794-IRT8XT is a FLEX I/O-XT analog input module designed for monitoring thermocouple, RTD, and millivolt temperature signals in harsh industrial environments.
Q2: How many input channels does the 1794-IRT8XT provide?
A2: The module provides 8 analog input channels for temperature and low-level signal monitoring applications.
Q3: Which thermocouple types are supported by the 1794-IRT8XT?
A3: The module supports multiple thermocouple types including B, C, E, J, K, N, R, S, and T sensors.
Q4: Does the 1794-IRT8XT support RTD sensors?
A4: Yes. The module supports platinum, nickel, and copper RTD sensor inputs for industrial temperature measurement applications.
Q5: What makes the 1794-IRT8XT suitable for harsh environments?
A5: The module belongs to the FLEX I/O-XT family and supports extended operating temperatures from -20°C to 70°C along with hazardous location certifications.
Q6: Does the 1794-IRT8XT include open sensor detection?
A6: Yes. The module supports open thermocouple and sensor detection to improve diagnostics and process reliability.
Q7: Which terminal bases are compatible with the 1794-IRT8XT?
A7: The module is compatible with 1794-TB3XT and 1794-TB3TXTK FLEX I/O-XT terminal bases.
Q8: What are the common applications of the 1794-IRT8XT?
A8: Common applications include furnace monitoring, oil and gas systems, chemical processing, mining operations, marine automation, and industrial temperature control systems.
