Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O-XT |

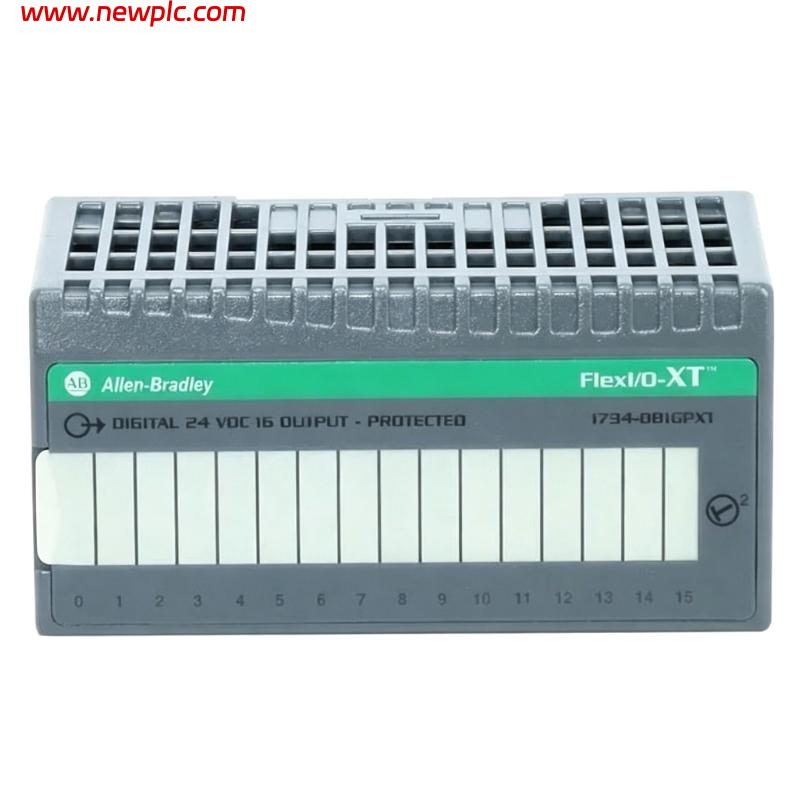

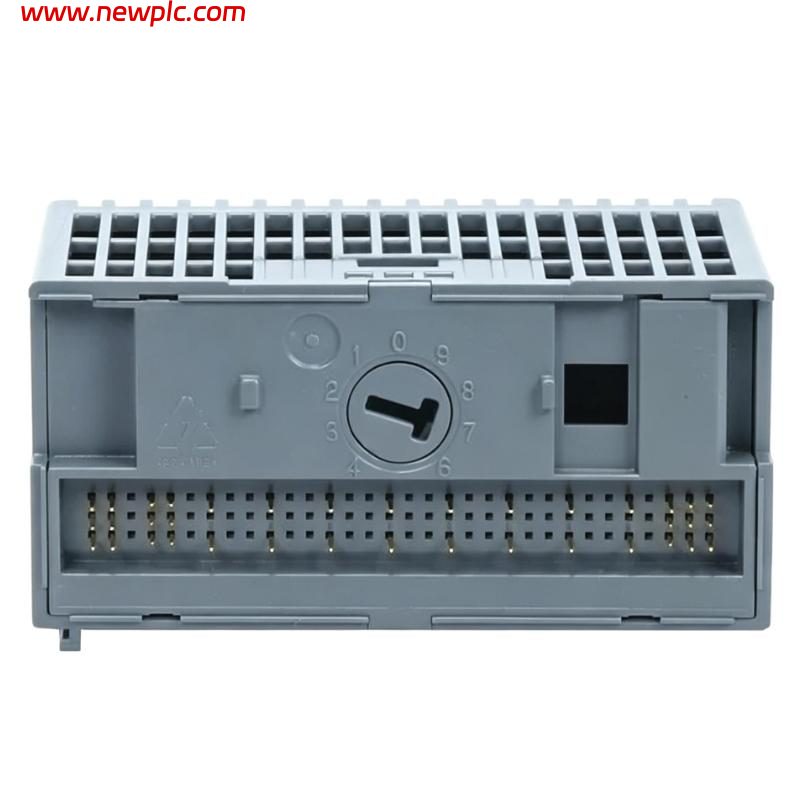

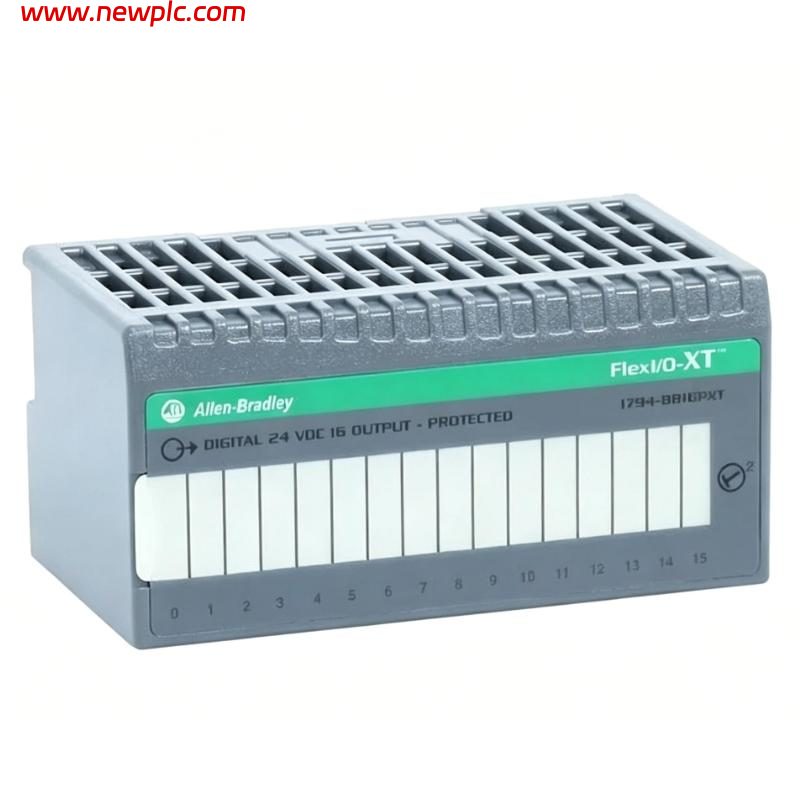

| Model Number | 1794-OB16PXT |
| Product Type | Digital DC Output Module |
| Module Type | FLEX XT 16-Point Protected Output Module |
| Number of Outputs | 16 Digital Outputs |
| Output Type | 24V DC Sourcing Outputs |
| Nominal Output Voltage | 24V DC |
| Output Voltage Range | 10 to 31.2V DC |
| Maximum Output Current | 8 A Total Module Current |
| Output Protection | Electronically Protected Outputs |
| Isolation Voltage | 50V Continuous, Tested to 2121V DC |
| FlexBus Current | Approx. 70 mA |
| Power Dissipation | Approx. 6.1 W |
| Compatible Terminal Bases | 1794-TB3XT, 1794-TB3TXTK |
| Status Indicators | 16 Yellow Output Status LEDs |
| Wiring Type | Sourcing (NPN) Output Wiring |
| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| XT Environment Rating | Extended Temperature / Harsh Environment |
| Conformal Coating | Yes |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, CSA, ATEX, IECEx, Marine, KC |
| Lifecycle Status | Active Mature |
| Dimensions | Approx. 94 x 94 x 69 mm |
| Weight | Approx. 0.20 – 0.41 kg |
| Typical Applications | Distributed I/O Systems, Process Automation, Harsh Industrial Environments |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-OB16PXT used for?
A1: The 1794-OB16PXT is a FLEX I/O-XT digital output module designed for controlling 24V DC field devices in harsh industrial automation environments.
Q2: How many outputs does the 1794-OB16PXT provide?
A2: The module provides 16 protected digital sourcing outputs for industrial control applications.
Q3: What output type is supported by the 1794-OB16PXT?
A3: The module supports 24V DC sourcing (NPN) digital outputs with electronic protection for connected loads.
Q4: What makes the 1794-OB16PXT suitable for harsh environments?
A4: The module belongs to the FLEX I/O-XT family and supports extended operating temperatures from -20°C to 70°C along with conformal coating and hazardous location certifications.
Q5: Which terminal bases are compatible with the 1794-OB16PXT?
A5: The module is compatible with 1794-TB3XT and 1794-TB3TXTK FLEX I/O-XT terminal bases.
Q6: What mounting methods are supported by the 1794-OB16PXT?
A6: The module supports both DIN rail mounting and panel mounting for flexible industrial installation.
Q7: Does the 1794-OB16PXT include output protection?
A7: Yes. The module includes electronically protected outputs to help prevent damage caused by overload or short-circuit conditions.
Q8: What are the common applications of the 1794-OB16PXT?
A8: Common applications include oil and gas systems, process automation, mining operations, marine systems, distributed I/O installations, and harsh-environment industrial control systems.
