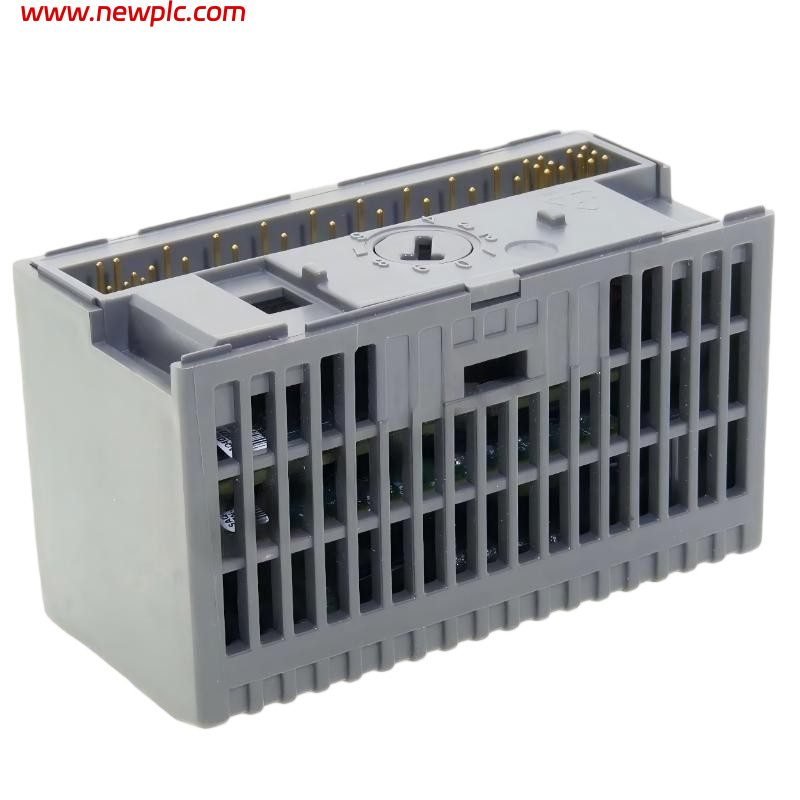

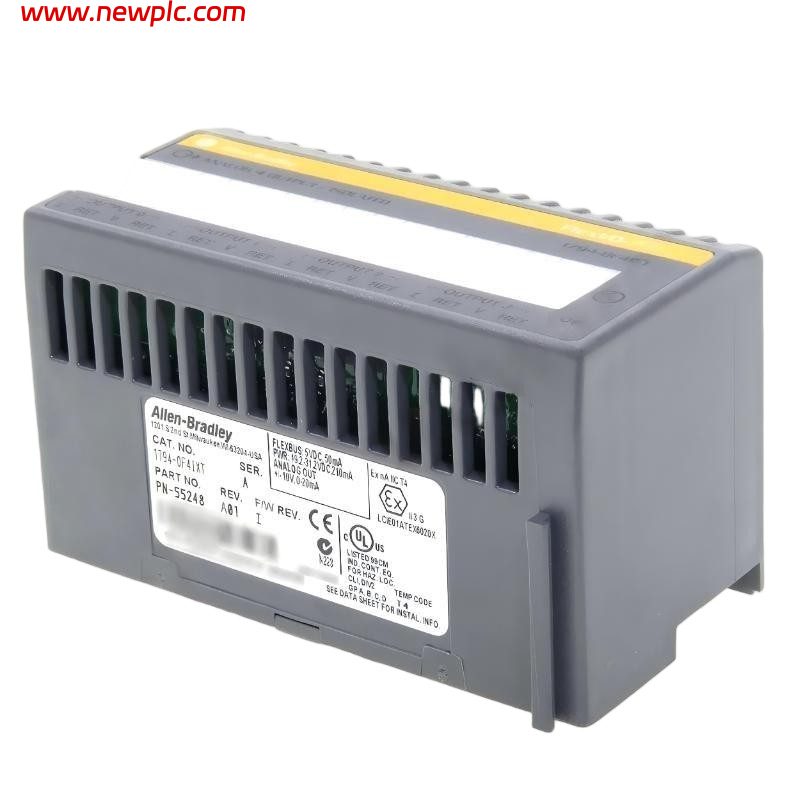

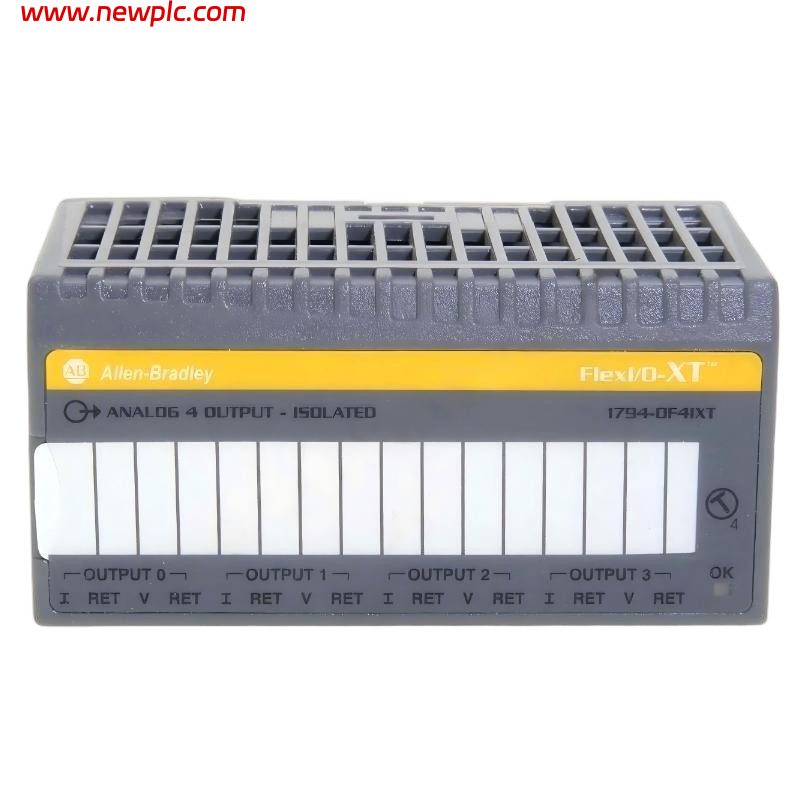

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O-XT |
| Model Number | 1794-OF4IXT |
| Product Type | Isolated Analog Output Module |
| Module Type | FLEX XT 4-Channel Analog Output Module |
| Number of Outputs | 4 Isolated Analog Outputs |
| Output Signal Types | 0…20 mA, 4…20 mA, 0…5V, ±5V, 0…10V, ±10V |
| Output Resolution | 15-bit |
| Conversion Type | Sigma-Delta |
| Output Configuration | Differential Isolated Outputs |
| Isolation Voltage | 120V Continuous, Tested to 850V DC |
| Nominal Supply Voltage | 24V DC |
| Input Voltage Range | 19.2 to 31.2V DC |
| Current Consumption | Approx. 210 mA @ 24V DC |
| FlexBus Current | Approx. 50 mA |
| Power Dissipation | Approx. 5 W |
| Thermal Dissipation | Approx. 6.8 BTU/hr |
| Update Rate | 2.5 / 5.0 / 7.5 ms |
| Voltage Output Load | 3 mA Maximum |
| Status Indicators | Module Status LED |
| Compatible Terminal Bases | 1794-TB3, 1794-TB3S, 1794-TBN, 1794-TB37DS |
| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| XT Environment Rating | Extended Temperature / Harsh Environment |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, ATEX, IECEx, KC, Marine |
| Lifecycle Status | Active Mature |
| Dimensions | Approx. 94 x 46 x 75 mm |
| Weight | Approx. 0.11 – 0.20 kg |
| Typical Applications | Process Control, Analog Signal Control, Harsh Environment Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-OF4IXT used for?
A1: The 1794-OF4IXT is a FLEX I/O-XT isolated analog output module designed for industrial process control applications that require reliable analog signal output in harsh environments.
Q2: How many analog outputs does the 1794-OF4IXT provide?
A2: The module provides 4 isolated analog output channels for voltage and current signal control applications.
Q3: Which output signal ranges are supported by the 1794-OF4IXT?
A3: The module supports multiple selectable output ranges including 0…20 mA, 4…20 mA, 0…5V, ±5V, 0…10V, and ±10V.
Q4: Does the 1794-OF4IXT provide isolated outputs?
A4: Yes. The module includes 4 differential isolated analog outputs to improve signal stability and reduce electrical interference in industrial systems.
Q5: What makes the 1794-OF4IXT suitable for harsh industrial environments?
A5: The module belongs to the FLEX I/O-XT family and supports extended operating temperatures from -20°C to 70°C along with industrial and hazardous-location certifications.
Q6: Which mounting methods are supported by the 1794-OF4IXT?
A6: The module supports DIN rail mounting and panel mounting for flexible installation inside industrial automation cabinets.
Q7: Which terminal bases are compatible with the 1794-OF4IXT?
A7: Compatible terminal bases include 1794-TB3, 1794-TB3S, 1794-TBN, and several FLEX I/O XT terminal base units.
Q8: What are the common applications of the 1794-OF4IXT?
A8: Common applications include process automation, chemical processing, oil and gas systems, distributed analog control, mining operations, and harsh-environment industrial automation.
