Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O |

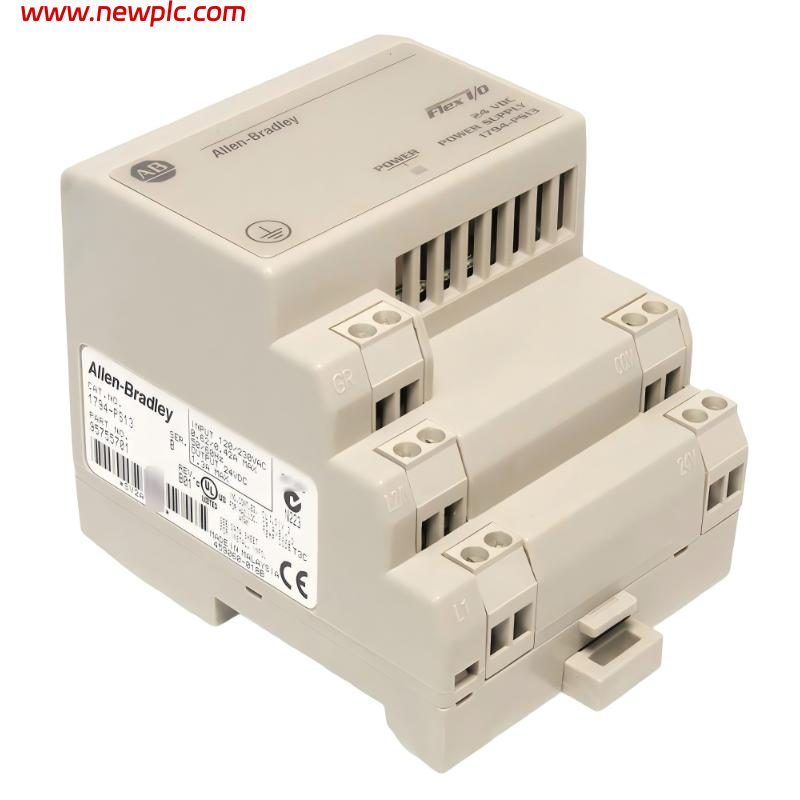

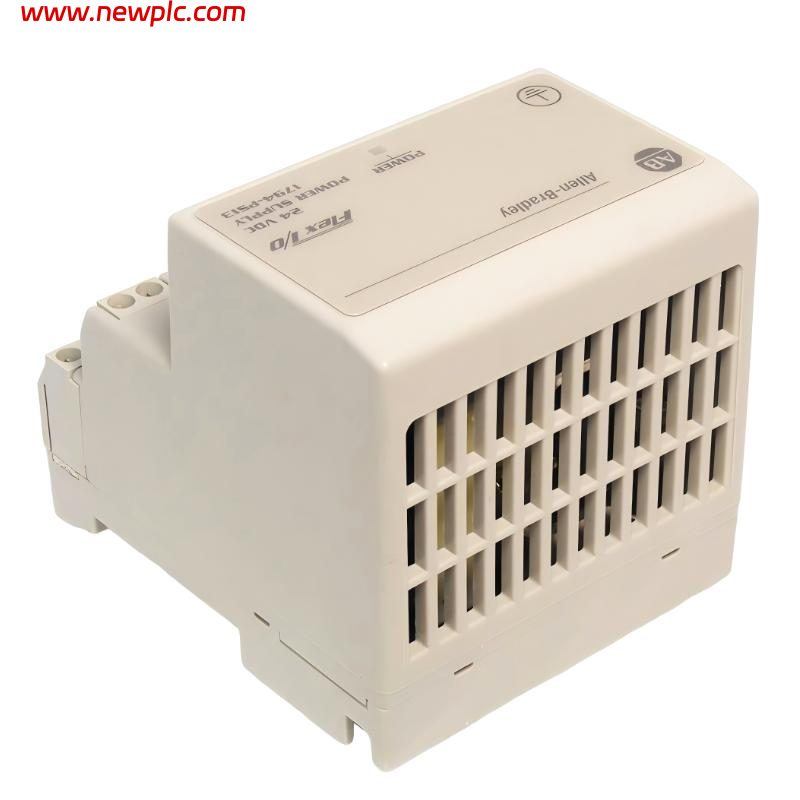

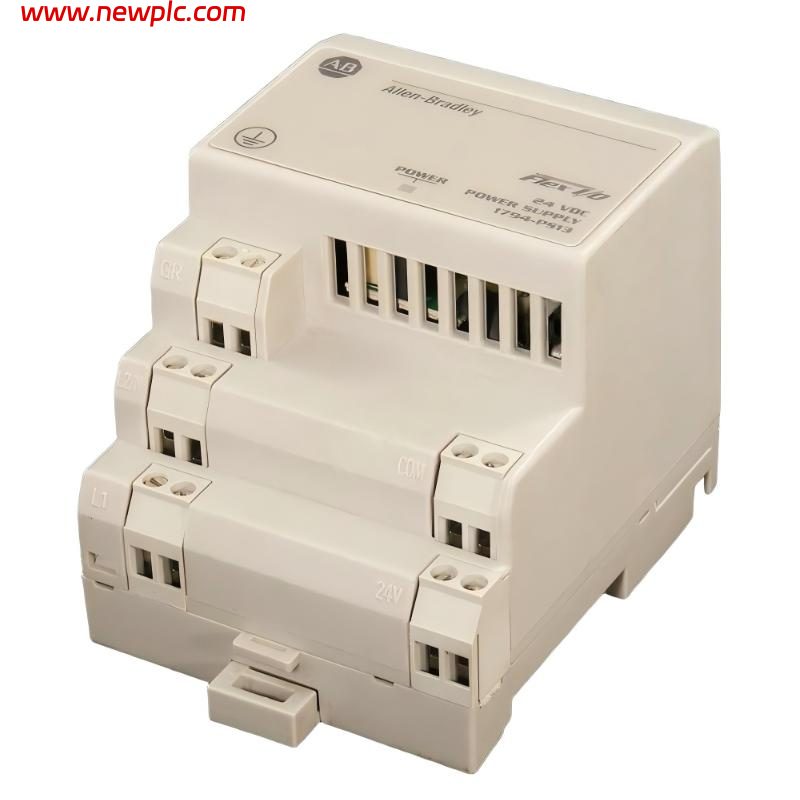

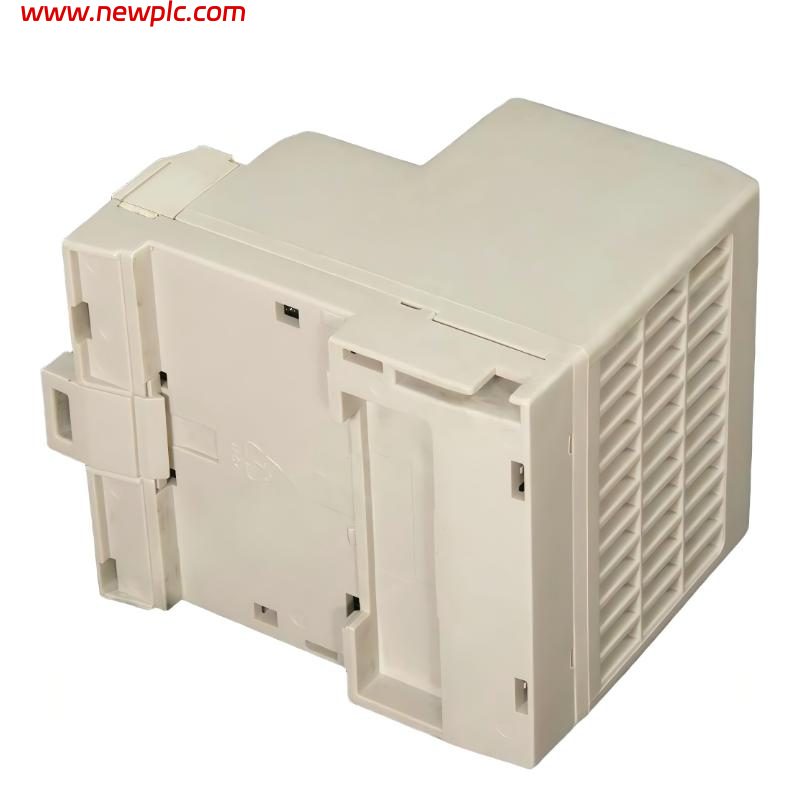

| Model Number | 1794-PS13 |
| Product Type | FLEX I/O Power Supply |
| Power Supply Type | Input Power Supply Module |
| Input Voltage | 120/230V AC |
| Input Voltage Range | 85 to 132V AC / 170 to 265V AC |
| Input Frequency | 47 to 63 Hz |
| Output Voltage | 24V DC |
| Output Current | 1.3 A Maximum |
| Output Power | Approx. 31.2 W |
| Efficiency | Approx. 75% |
| Inrush Current | Approx. 25 A |
| Isolation Voltage | 250V Continuous |
| Power Distribution | FLEX I/O Backplane and Field Power |
| Status Indicators | Power Status LED |
| Wiring Connection | Screw Terminal |
| Compatible Systems | FLEX I/O Distributed I/O Systems |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, CSA |
| Lifecycle Status | Discontinued |
| Dimensions | Approx. 87 x 94 x 69 mm |
| Weight | Approx. 0.40 kg |
| Typical Applications | FLEX I/O Power Distribution, Industrial Automation Control Systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-PS13 used for?
A1: The 1794-PS13 is a FLEX I/O power supply module used to provide 24V DC operating power to FLEX I/O distributed I/O systems.
Q2: What input voltage does the 1794-PS13 support?
A2: The module supports universal AC input ranges of 85–132V AC and 170–265V AC at 47–63 Hz.
Q3: What output does the 1794-PS13 provide?
A3: The power supply provides a regulated 24V DC output with a maximum output current of 1.3 A.
Q4: Which systems are compatible with the 1794-PS13?
A4: The module is designed for Allen-Bradley FLEX I/O distributed automation systems.
Q5: How is the 1794-PS13 mounted?
A5: The module is designed for DIN rail mounting inside industrial automation and control panels.
Q6: Does the 1794-PS13 include status indication?
A6: Yes. The module includes a power status LED for visual monitoring of operating condition.
Q7: Is the 1794-PS13 still available from Rockwell Automation?
A7: No. The 1794-PS13 has been discontinued and replaced by newer FLEX I/O power supply solutions.
Q8: What are the common applications of the 1794-PS13?
A8: Common applications include distributed I/O systems, machine automation, manufacturing equipment, and industrial control panel power distribution.
