Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O |

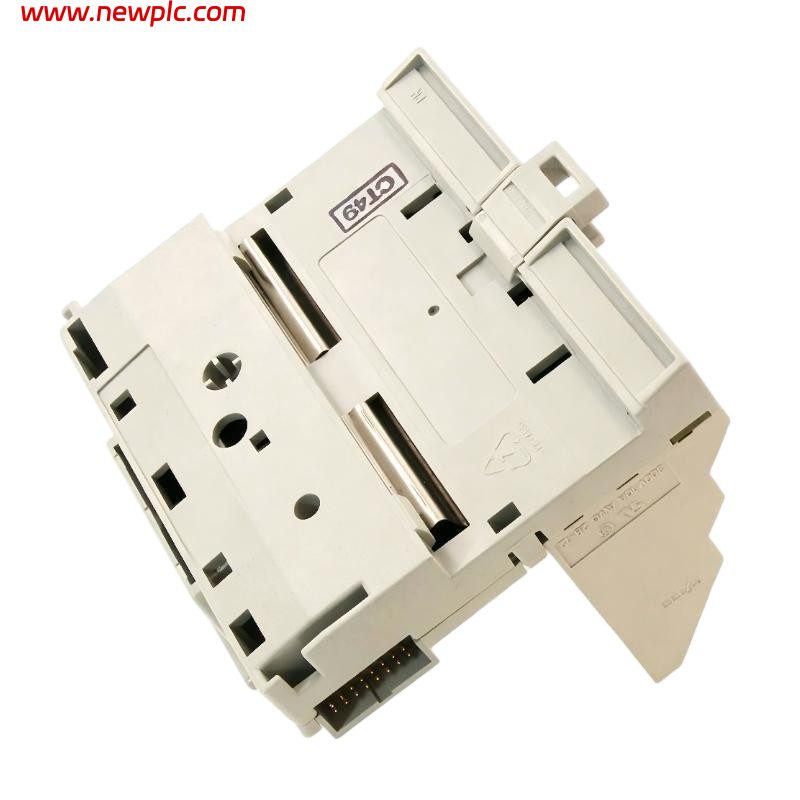

| Model Number | 1794-TB3GS |
| Product Type | FLEX I/O Terminal Base Unit |
| Terminal Base Type | Spring Clamp Terminal Base |
| Wiring Style | Cage Clamp / Spring Clamp |
| Number of Terminals | 36 Terminals |
| Compatible Modules | FLEX I/O Analog and HART Modules |
| Compatible Modules Examples | 1794-OF8IH, 1794-IE8IH, 1794-IF8IH |
| Connector Type | Removable Terminal Block |
| Field Wiring Connection | Spring Clamp |
| Keying Capability | Mechanical Keying Supported |
| Backplane Connection | FLEXBus Backplane |
| Power Distribution | Field Power and FLEXBus Routing |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Wire Size Supported | 0.34 to 2.5 mm² (22 to 12 AWG) |
| Certifications | UL, CE, CSA, KC |
| Lifecycle Status | Active Mature |
| Dimensions | Approx. 94 x 94 x 69 mm |
| Weight | Approx. 0.12 – 0.18 kg |
| Typical Applications | FLEX I/O Analog Wiring, HART Systems, Distributed I/O Installations |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-TB3GS used for?
A1: The 1794-TB3GS is a FLEX I/O spring clamp terminal base unit used for connecting field wiring to compatible FLEX I/O analog and HART modules.
Q2: Which FLEX I/O modules are compatible with the 1794-TB3GS?
A2: The terminal base is commonly used with FLEX I/O HART analog modules such as the 1794-OF8IH, 1794-IE8IH, and 1794-IF8IH.
Q3: What type of wiring connection does the 1794-TB3GS use?
A3: The module uses spring clamp (cage clamp) terminal connections for secure vibration-resistant industrial wiring.
Q4: How many terminals are available on the 1794-TB3GS?
A4: The terminal base provides 36 field wiring terminals.
Q5: Does the 1794-TB3GS support removable terminal blocks?
A5: Yes. The terminal block is removable to simplify installation, maintenance, and module replacement.
Q6: What mounting method is used for the 1794-TB3GS?
A6: The terminal base is designed for DIN rail mounting in industrial automation control panels.
Q7: Does the 1794-TB3GS support mechanical keying?
A7: Yes. Mechanical keying is supported to help prevent incorrect module installation.
Q8: What are the common applications of the 1794-TB3GS?
A8: Common applications include process automation, HART instrumentation systems, distributed analog I/O systems, and industrial process control panels.
