Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX Ex |

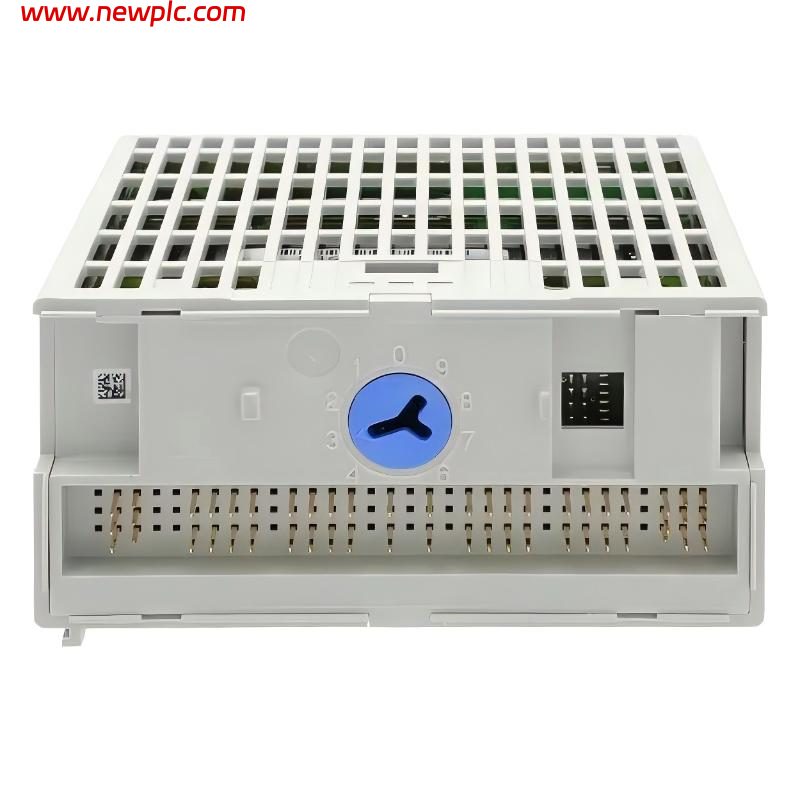

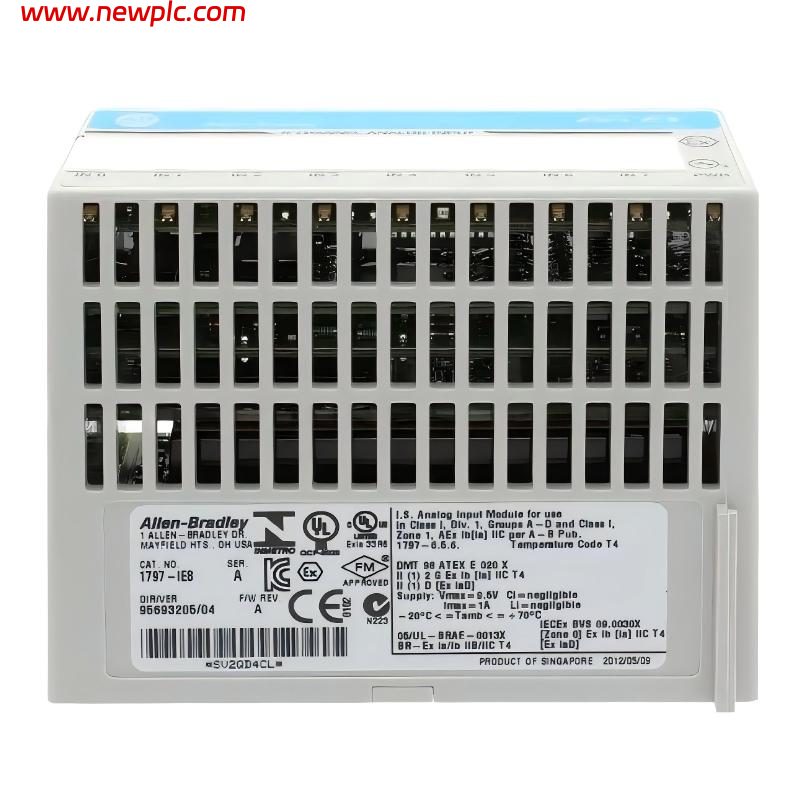

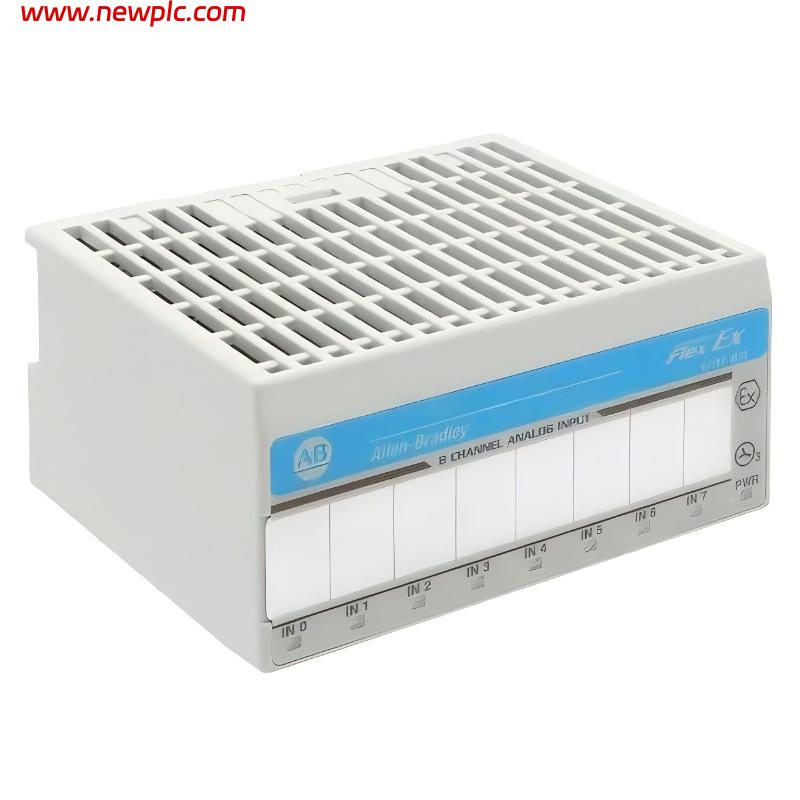

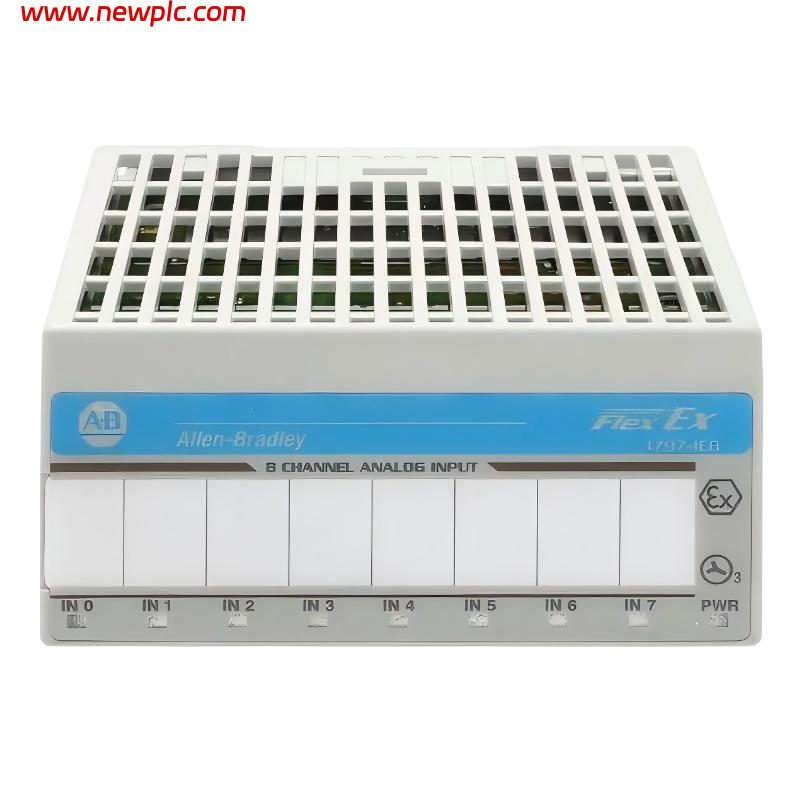

| Model Number | 1797-IE8 |
| Product Type | Intrinsically Safe Analog Input Module |
| Module Type | FLEX Ex 8-Channel Analog Input Module |
| Number of Inputs | 8 Analog Input Channels |
| Input Signal Types | 0…20 mA, 4…20 mA |
| Input Resolution | 16-bit |
| Input Configuration | Single-Ended Current Inputs |
| Isolation | Intrinsically Safe Isolation |
| Data Format | Integer and Engineering Units |
| Conversion Method | Sigma-Delta Conversion |
| Conversion Time | Approx. 25 ms |
| Nominal Supply Voltage | 24V DC |
| Input Voltage Range | 18.5 to 32V DC |
| Current Consumption | Approx. 90 mA |
| Backplane Current | FLEX Ex Backplane Powered |
| Compatible Terminal Bases | FLEX Ex Terminal Base Units |
| Status Indicators | Module Status LED |
| Hazardous Area Support | Intrinsically Safe Applications |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, ATEX, IECEx, FM, CSA |
| Lifecycle Status | Discontinued |
| Dimensions | Approx. 94 x 94 x 87 mm |
| Weight | Approx. 0.24 kg |
| Typical Applications | Hazardous Area Process Control, Analog Monitoring, Oil & Gas Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1797-IE8 used for?
A1: The 1797-IE8 is a FLEX Ex intrinsically safe analog input module designed for monitoring current-based analog signals in hazardous industrial environments.
Q2: How many analog input channels does the 1797-IE8 provide?
A2: The module provides 8 analog current input channels for distributed process automation applications.
Q3: Which signal ranges are supported by the 1797-IE8?
A3: The module supports 0…20 mA and 4…20 mA analog current input signals commonly used in industrial instrumentation.
Q4: Is the 1797-IE8 suitable for hazardous locations?
A4: Yes. The module is designed for intrinsically safe hazardous-area installations and includes ATEX, IECEx, FM, and CSA certifications.
Q5: What is the resolution of the 1797-IE8 analog inputs?
A5: The module provides 16-bit analog resolution for accurate process signal measurement.
Q6: What mounting method is used for the 1797-IE8?
A6: The module is designed for DIN rail mounting inside hazardous-area industrial automation systems.
Q7: Which systems are compatible with the 1797-IE8?
A7: The module is compatible with Allen-Bradley FLEX Ex distributed I/O systems and FLEX Ex communication adapters.
Q8: What are the common applications of the 1797-IE8?
A8: Common applications include oil and gas facilities, chemical plants, refinery automation, offshore platforms, and hazardous-area process control systems.
