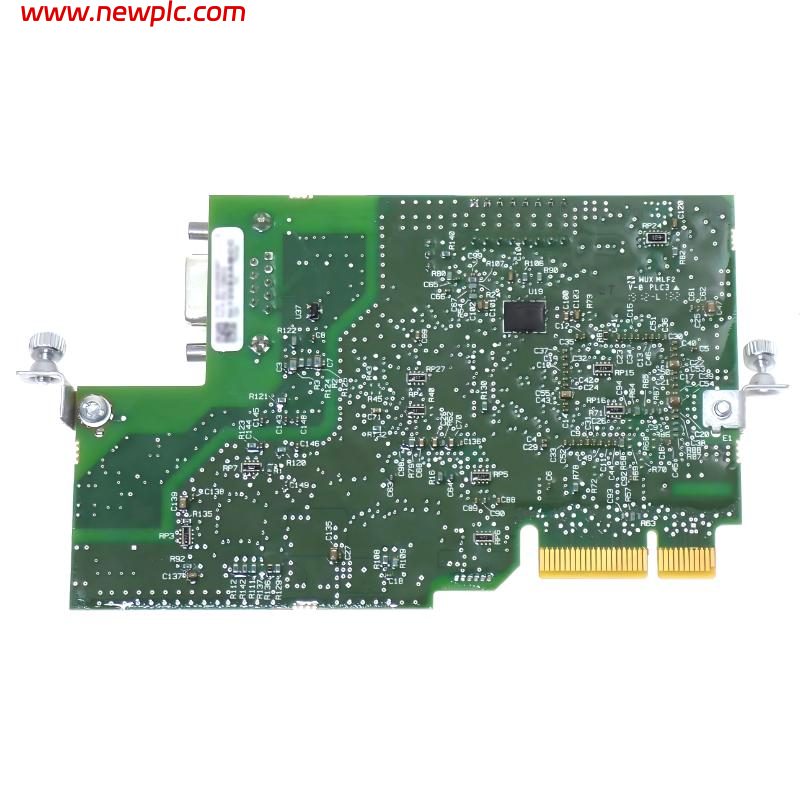

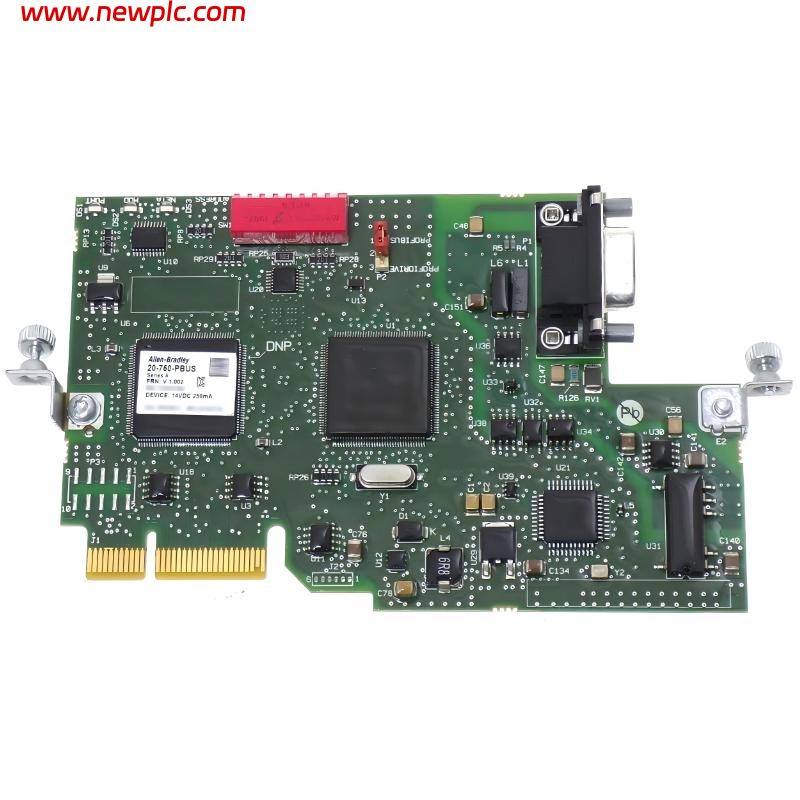

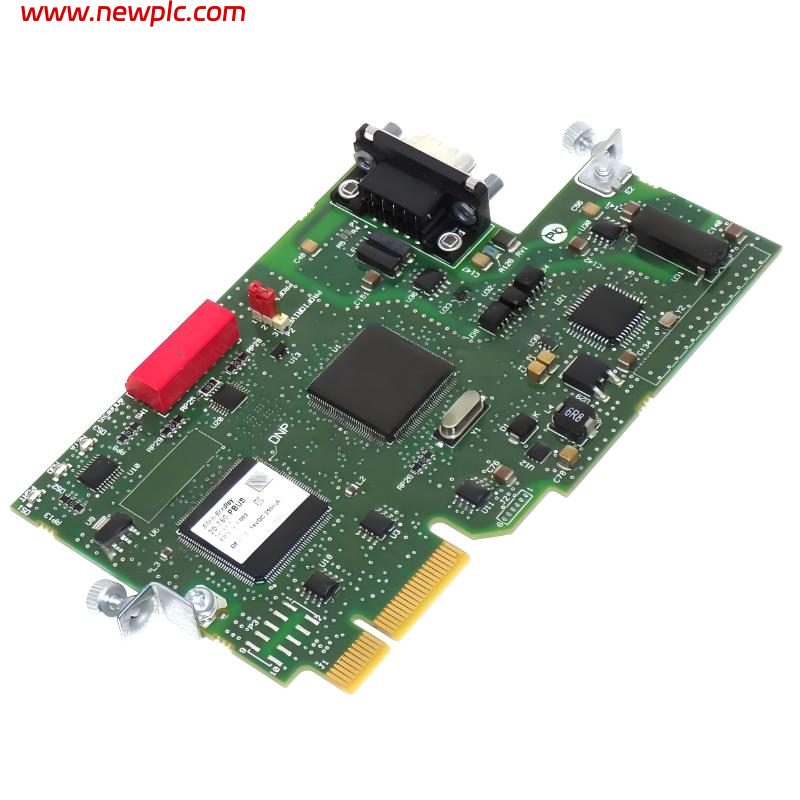

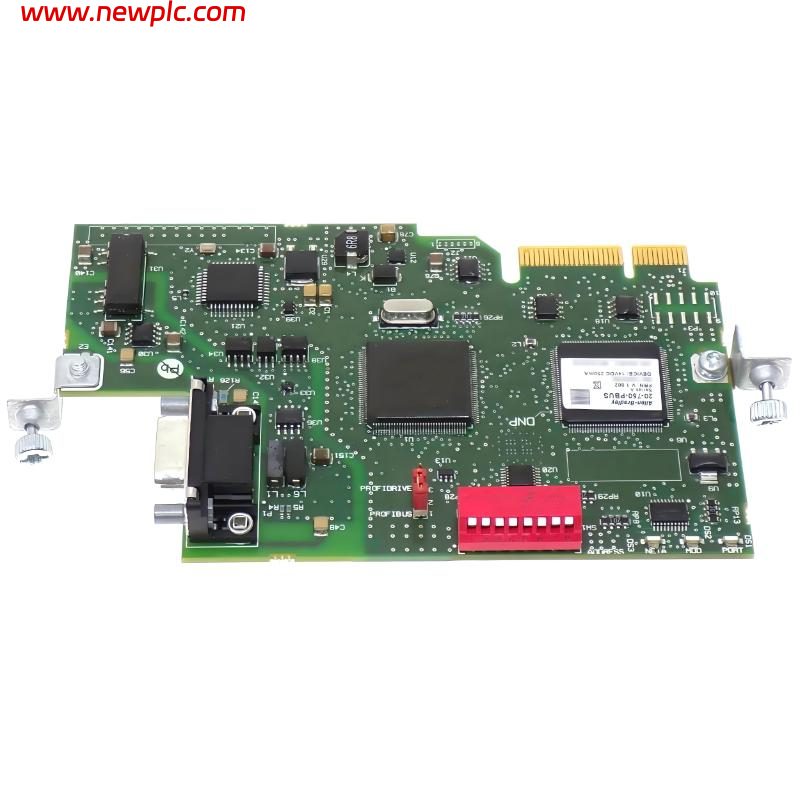

Allen Bradley 20-750-PBUS PROFIBUS DP Communication Module

FAQ

Q1: What is the Allen-Bradley 20-750-PBUS used for?
A1: The 20-750-PBUS is a PROFIBUS DP communication module used to connect PowerFlex 750-series drives to PROFIBUS industrial networks.

Q2: Which PowerFlex drives are compatible with the 20-750-PBUS?
A2: The module is compatible with Allen-Bradley PowerFlex 753 and PowerFlex 755 AC drives.

Q3: What PROFIBUS communication speeds are supported?
A3: The module supports PROFIBUS DP communication rates from 9.6 kbps up to 12 Mbps.

Q4: Which PROFIBUS standards are supported by the 20-750-PBUS?
A4: The module supports PROFIBUS DP-V0 and DP-V1 communication standards.

Q5: What type of connector does the 20-750-PBUS use?
A5: The module uses a standard 9-pin Sub-D (DB9) PROFIBUS connector.

Q6: Does the 20-750-PBUS support diagnostics?
A6: Yes. The module supports PROFIBUS diagnostics and includes module/network status LED indicators.

Q7: What are the dimensions and weight of the 20-750-PBUS?
A7: The module dimensions are approximately 119 × 59 × 23 mm, and the weight is approximately 0.09 kg.

Q8: What are common applications of the 20-750-PBUS?
A8: Common applications include industrial drive systems, conveyor automation, process control, packaging machinery, and PROFIBUS-based distributed motor control networks.
