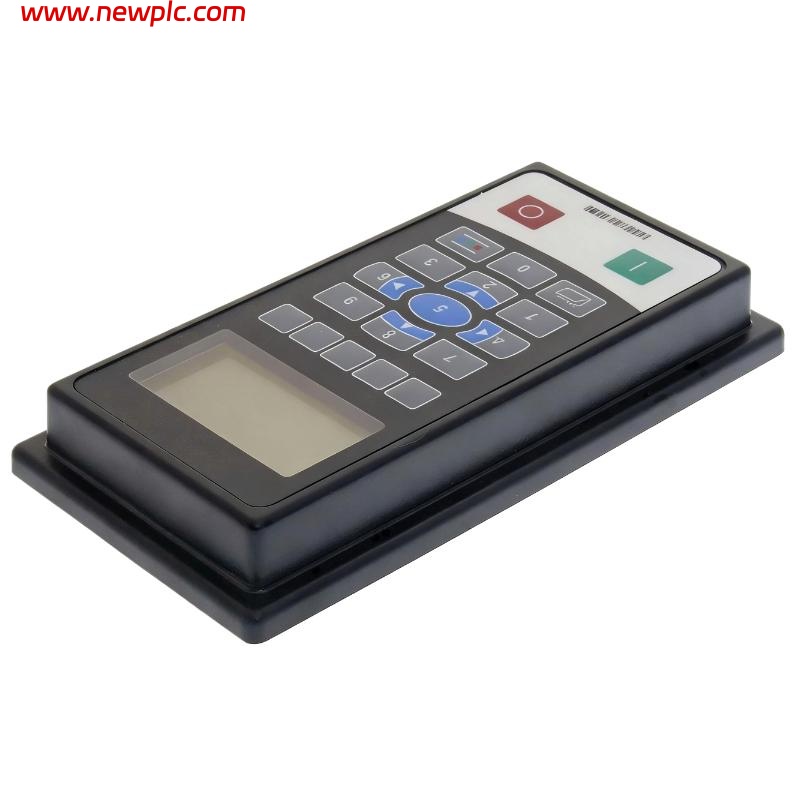

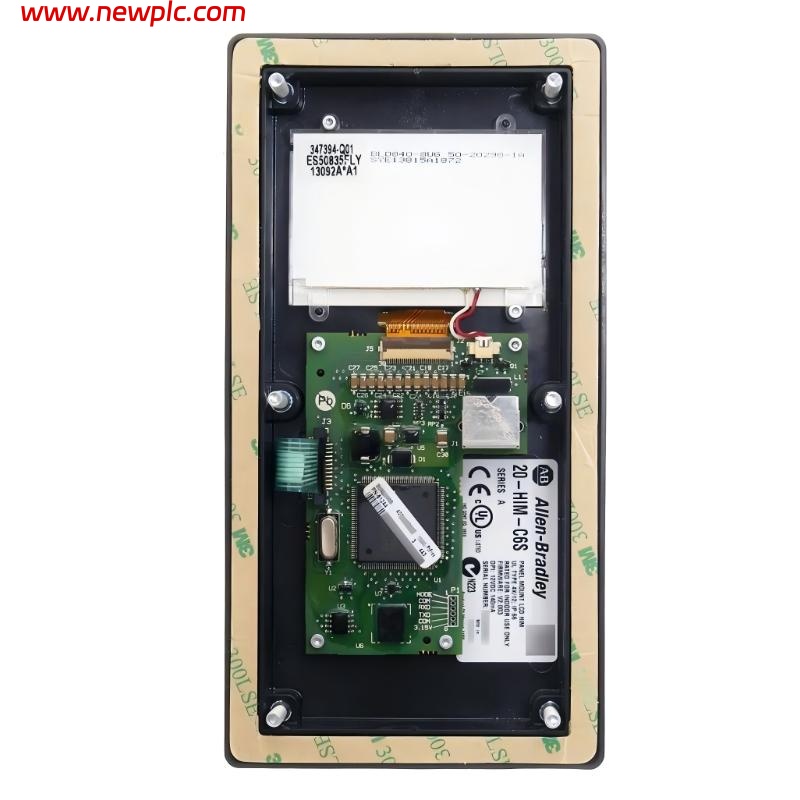

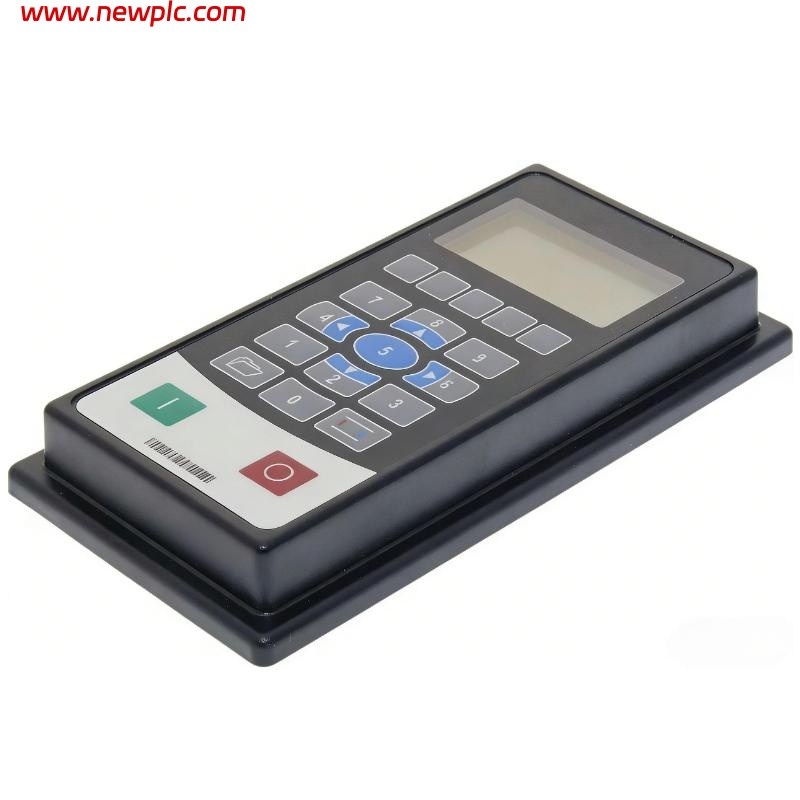

Allen-Bradley 20-HIM-C6S Human Interface Module (HIM)

FAQ

Q1. What is the 20-HIM-C6S used for?
It is a Human Interface Module used for remote operation, monitoring, and configuration of PowerFlex drives in industrial systems.

Q2. Which drives are compatible with 20-HIM-C6S?
It works with PowerFlex 70, 700, 700S, 700H, 700L, 753, 755, and other PowerFlex 7-class drives.

Q3. What makes it different from 20-HIM-A6?
The 20-HIM-C6S is a remote-mount, IP66-rated enhanced HIM, while the A6 is typically a standard handheld/drive-mounted version.

Q4. How does it connect to the drive?
It connects through the DPI (Drive Peripheral Interface) using the included 1202-C30 cable.

Q5. Does it require external power?
No. It is powered directly by the connected drive.

Q6. Is it suitable for harsh environments?
Yes. It has IP66 / NEMA Type 4X protection, making it suitable for dusty and washdown industrial environments (indoor use).

Q7. What type of display does it use?
It uses a full-color LCD with graphical and text-based navigation for easier diagnostics and setup.

Q8. Is the 20-HIM-C6S still in production?
Yes. It is an active PowerFlex accessory and is commonly used in modern drive installations.
