Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | DC-Bus Connector / Link Kit |

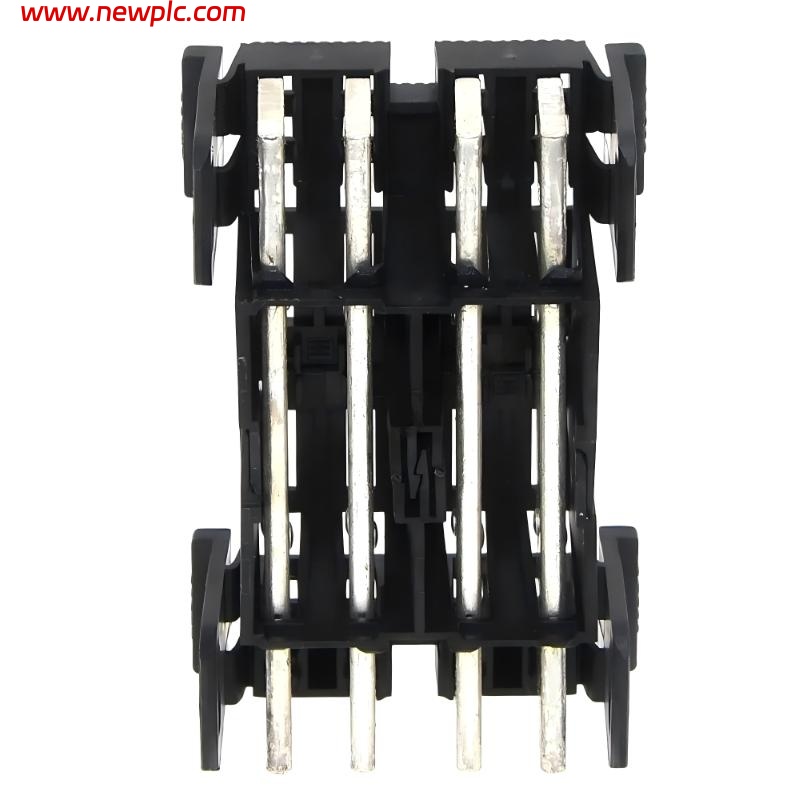

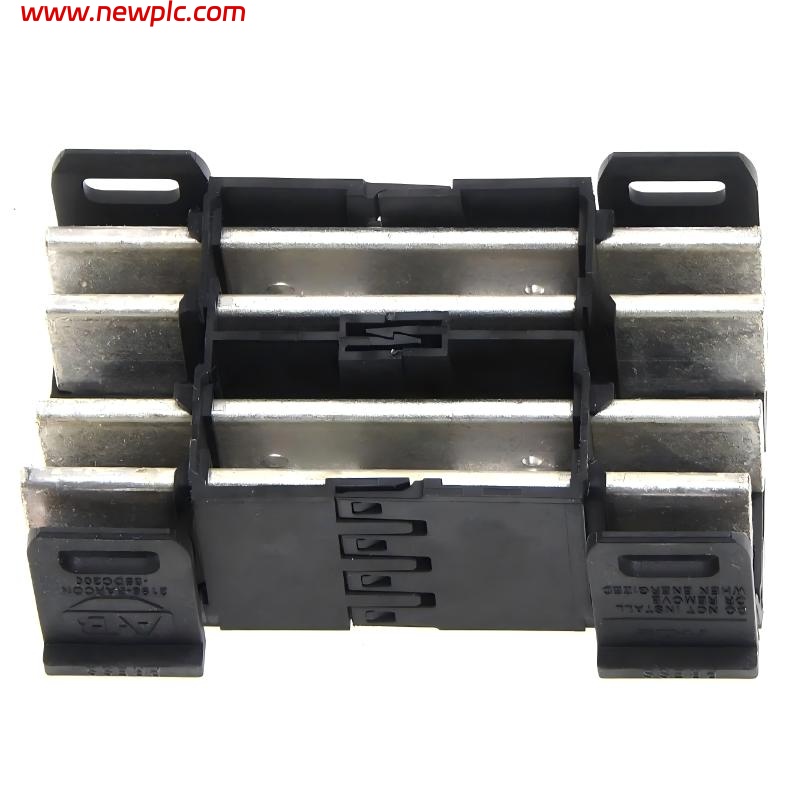

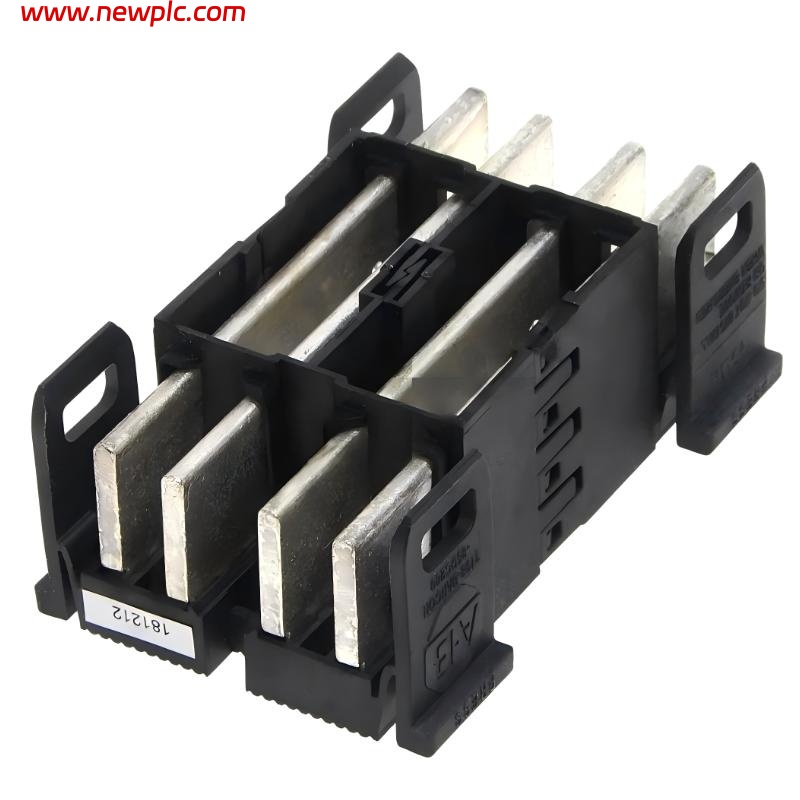

| Model | Allen-Bradley 2198-BARCON-85DC200 |
| Series | Kinetix 5700 Servo Drive Accessories |
| Function | Connects and shares DC-bus power between drive modules |
| Bus Size | 85 mm DC-bus spacing |
| Current Rating | 200 A |
| System Type | Multi-axis servo drive system (Kinetix 5700) |
| Application | DC-bus linking between inverter modules |
| Mounting | Internal drive rail connection (module-to-module) |
| Compatibility | Kinetix 5700 drive modules and power supplies |
| Installation | Mechanical plug-in DC bus bar connection |
| Protection | No electronics (passive power connector only) |
| Operating Environment | Inside drive cabinet only |
FAQ
FAQ
Q1. What is the 2198-BARCON-85DC200 used for?
It is used to connect and share DC-bus power between Kinetix 5700 servo drive modules in multi-axis systems.
Q2. Does it contain any electronic components?
No. It is a passive mechanical connector with no electronics.
Q3. What is its current rating?
It supports up to 200 A DC-bus current.
Q4. Which systems is it compatible with?
It is designed for Allen-Bradley Kinetix 5700 servo drive platforms.
Q5. Where is it installed?
Inside a drive cabinet, directly between adjacent servo drive modules.
Q6. What does the “85 mm spacing” refer to?
It refers to the standardized module spacing used for DC-bus interconnection in the system.
Q7. What is its main role in the system?
It enables shared DC power distribution between multiple servo drives, reducing wiring complexity.
Q8. Is it used in PowerFlex drives?
No. It is only used in Kinetix servo systems, not PowerFlex VFD systems.
