Technical Specifications
| Parameter | Specification |
|---|---|

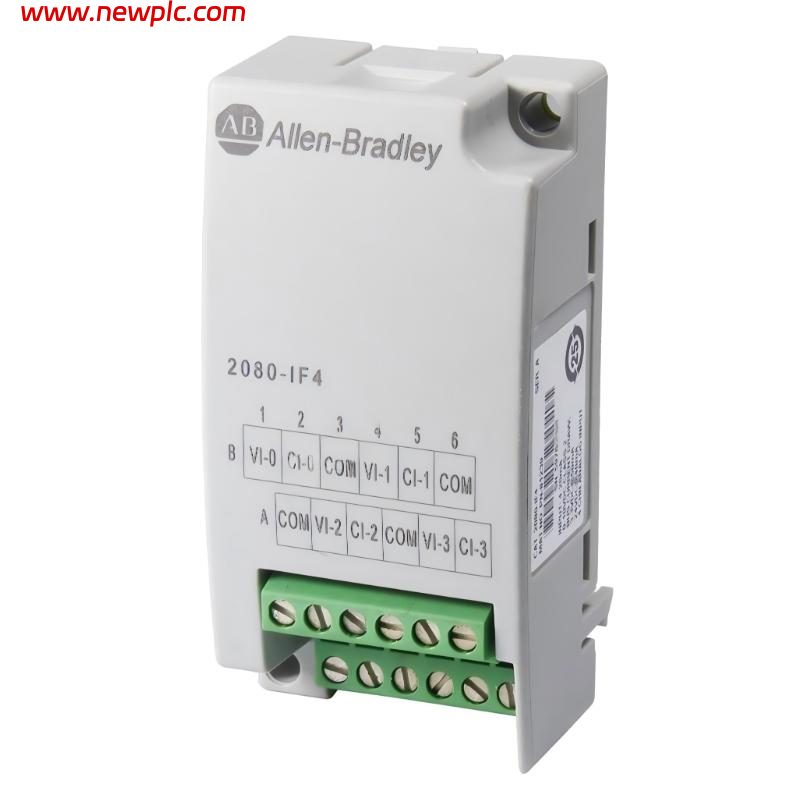

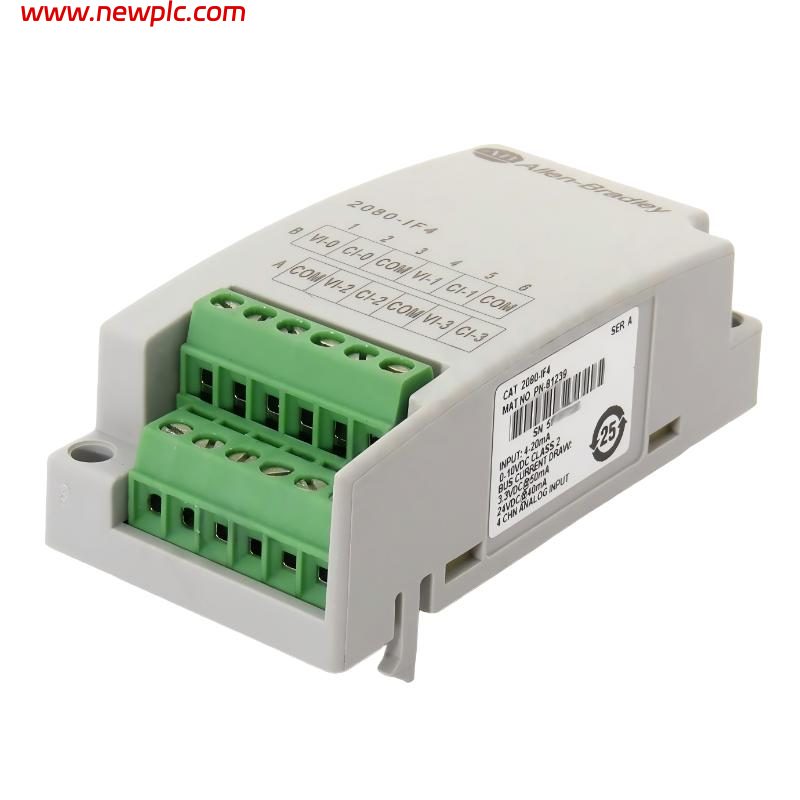

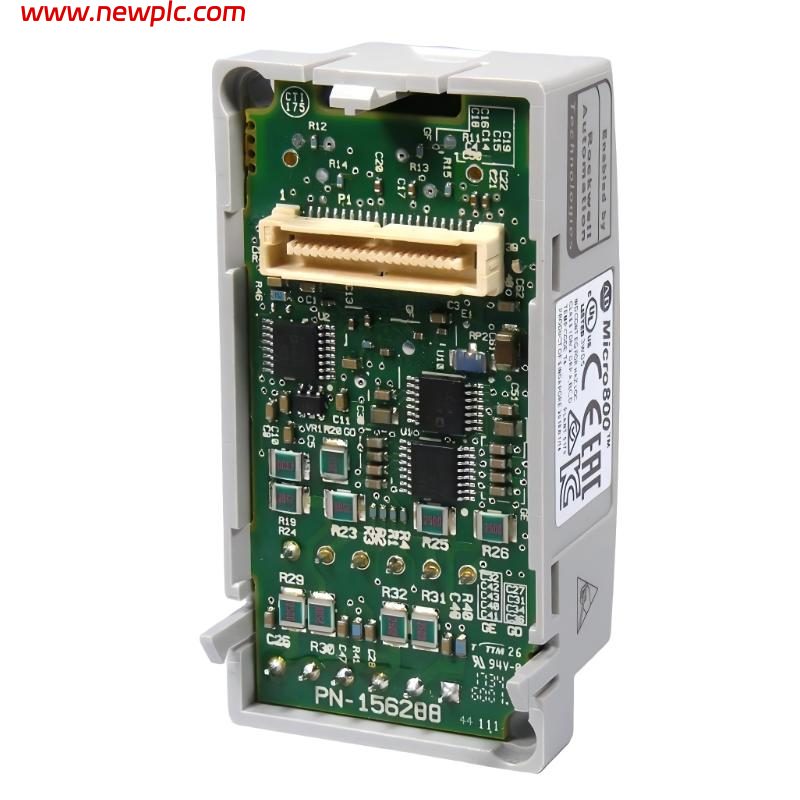

| Product Name | Allen-Bradley 2080-IF4 |
| Product Type | Micro800 Analog Input Plug-in Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Micro800 |
| Module Function | Analog Input (Voltage / Current) |
| Number of Channels | 4 single-ended analog inputs |
| Input Signal Types | 0–10 V DC / 0–20 mA |
| Resolution | 12-bit |
| Data Range | 0 to 65535 |
| Accuracy | ±1% full scale (voltage), ±2% full scale (current) |
| Repeatability | ±0.1% |
| Input Impedance | >100 kΩ (voltage), 250 Ω (current) |
| Update Time | ~180 ms per enabled channel |
| Channel Isolation | Non-isolated (channel-to-channel) |
| Bus Isolation | No isolation |
| Wiring Type | Screw / plug-in terminal connection |
| Cable Length (recommended) | Up to 10 m shielded cable |
| Power Consumption | <60 mA @ 3.3 V DC |
| Mounting Type | Plug-in module for Micro800 controllers |
| Compatible Controllers | Micro820, Micro830, Micro850 |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Operating Altitude | Up to 2000 m |
| Dimensions | Approx. 87 × 90 × 40 mm |
| Weight | Approx. 0.15–0.23 kg |
| Certifications | CE, UL, cULus, KC, RCM |
FAQ
FAQ
Q1: What is the main function of the 2080-IF4 module?
It is a Micro800 plug-in analog input module used to read voltage or current signals from field devices into a PLC system.
Q2: What types of input signals does it support?
It supports unipolar analog signals including 0–10 V DC voltage and 0–20 mA current inputs.
Q3: How many analog input channels does it have?
The module provides four single-ended analog input channels.
Q4: Is the 2080-IF4 isolated?
No, it is a non-isolated module, meaning channels and bus share a common reference.
Q5: What is the resolution of this module?
It has a 12-bit resolution, providing fine measurement accuracy for process signals.
Q6: What PLC families is it compatible with?
It is compatible with Allen-Bradley Micro820, Micro830, and Micro850 controllers.
Q7: What is the typical update time per channel?
Each enabled channel updates approximately every 180 milliseconds.
Q8: Where is this module commonly used?
It is commonly used in small to mid-size automation systems for sensor monitoring, process control, and data acquisition applications in manufacturing and utilities.
