Technical Specifications
| Parameter | Specification |
|---|---|

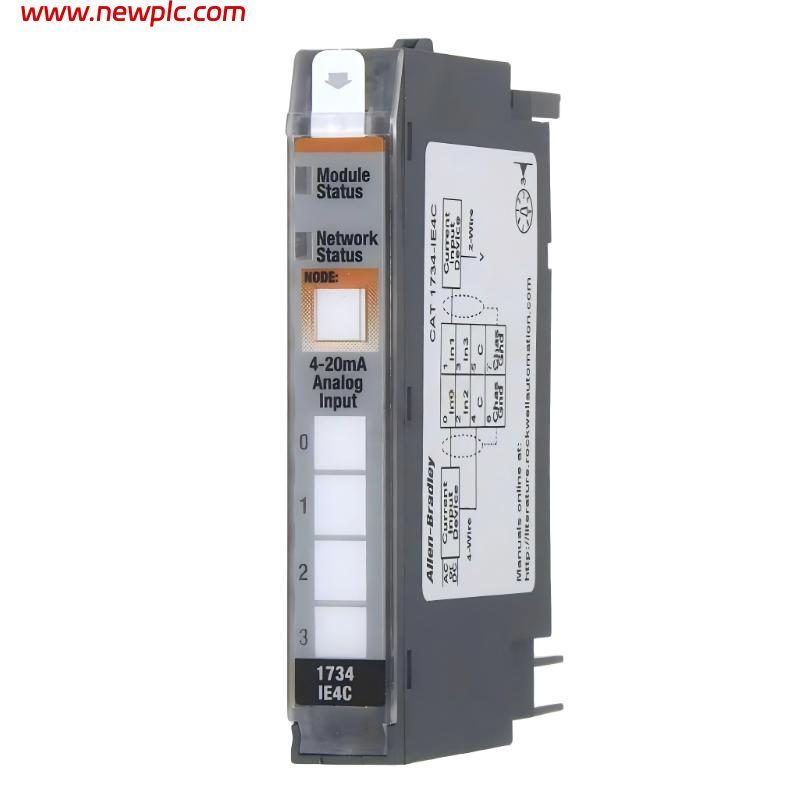

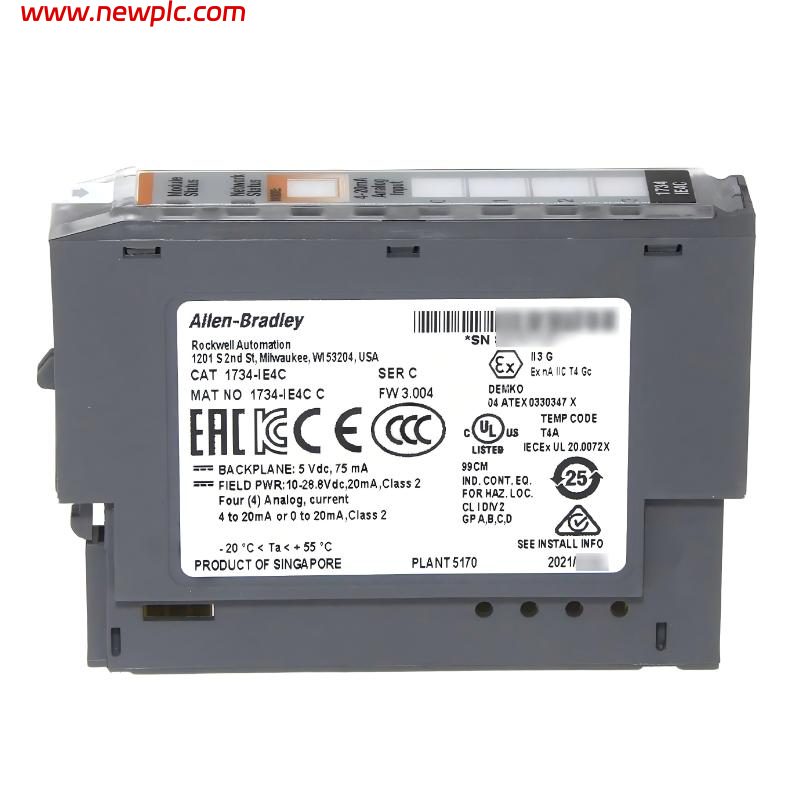

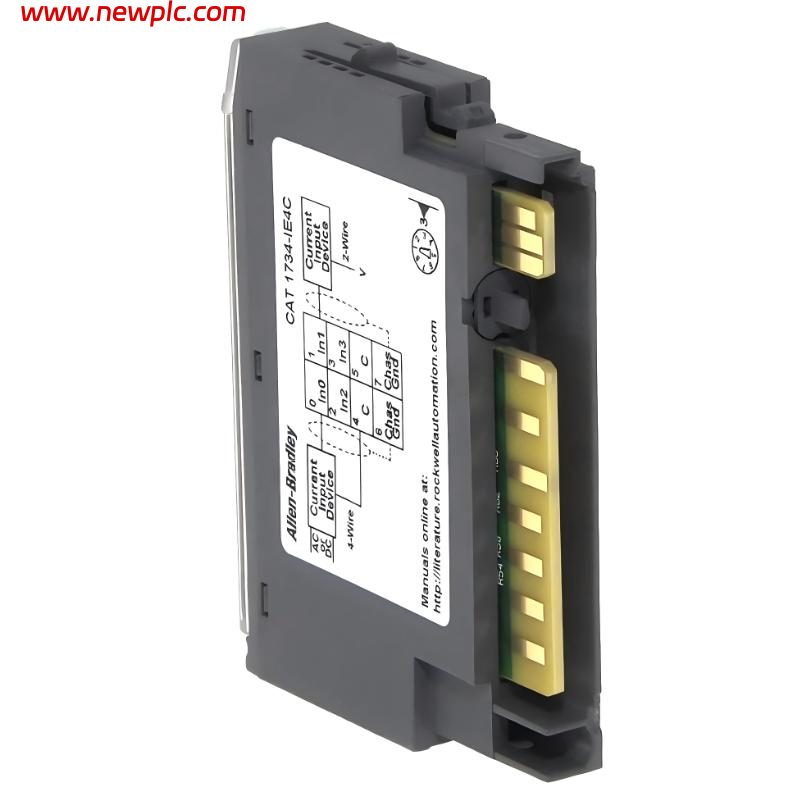

| Product Name | Allen-Bradley 1734-IE4C |
| Product Type | POINT I/O Analog Current Input Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | POINT I/O |
| Module Function | Analog Input (Current) |
| Number of Channels | 4 single-ended, non-isolated channels |
| Input Signal Range | 0–20 mA / 4–20 mA |
| Resolution | 16-bit (0–21 mA range) |
| Conversion Method | Delta-Sigma A/D conversion |
| Accuracy | Approx. ±0.1% full scale @ 25°C |
| Input Impedance | Current input (low impedance design) |
| Data Format | Signed integer |
| Channel Diagnostics | Supported (per-channel diagnostics & alarms) |
| Update Time | Approx. 200–240 ms (depending on filter settings) |
| POINTBus Current | Approx. 75 mA @ 5V DC |
| Power Dissipation | Approx. 0.55–0.75 W @ 28.8V DC |
| Thermal Dissipation | Approx. 2.0–2.5 BTU/hr |
| Isolation | No channel-to-channel isolation |
| Field Power | 24V DC system supply |
| Mounting Base | 1734-TB / 1734-TB3 / 1734-TB3S |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Enclosure Type | Open-style POINT I/O module |
| Dimensions | Approx. 77.5 × 12.1 × 56.6 mm |
| Weight | Approx. 0.036–0.05 kg |
| Certifications | CE, UL, cULus, KC, RCM |
FAQ
FAQ
Q1: What is the main function of the 1734-IE4C?
It is a POINT I/O analog input module used to read up to four current loop signals (0–20 mA or 4–20 mA) into a PLC system.
Q2: What type of signals does it support?
It supports standard industrial current signals, mainly 4–20 mA and 0–20 mA transmitters.
Q3: How many input channels does it have?
The module provides four single-ended analog input channels.
Q4: Does it provide channel isolation?
No, the channels are non-isolated, so all inputs share a common reference.
Q5: What resolution does the module use?
It uses a 16-bit resolution over a 0–21 mA measurement range for high precision.
Q6: What terminal bases are compatible?
It works with POINT I/O bases such as 1734-TB, 1734-TB3, and 1734-TB3S.
Q7: What is the typical update time?
Depending on configuration and filtering, update time is typically around 200–240 ms.
Q8: Where is this module commonly used?
It is widely used in process automation systems such as temperature monitoring, pressure measurement, flow control, and industrial instrumentation loops.
