Technical Specifications
| Parameter | Specification |
|---|---|

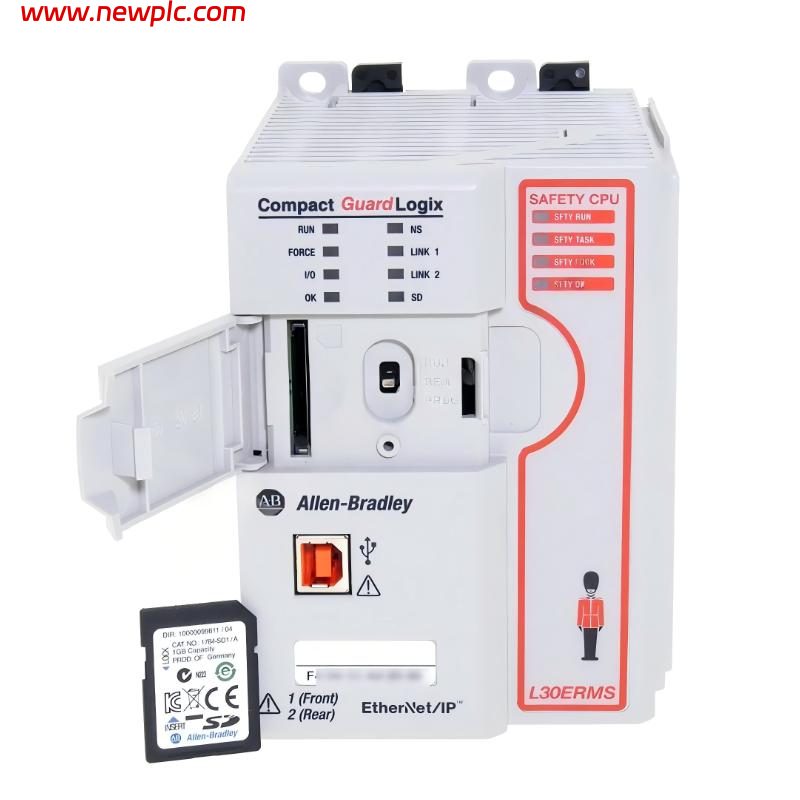

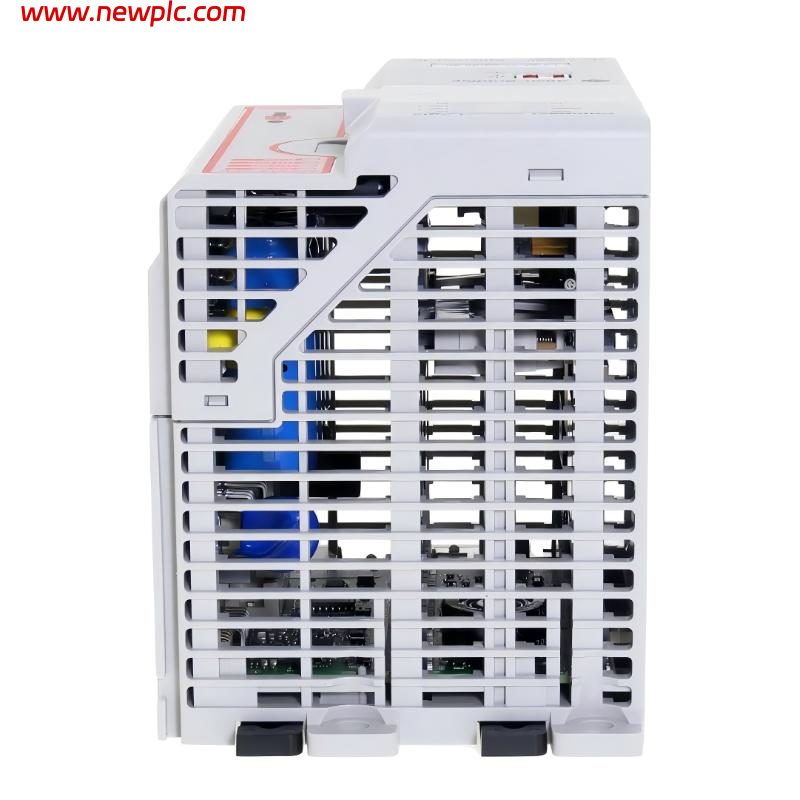

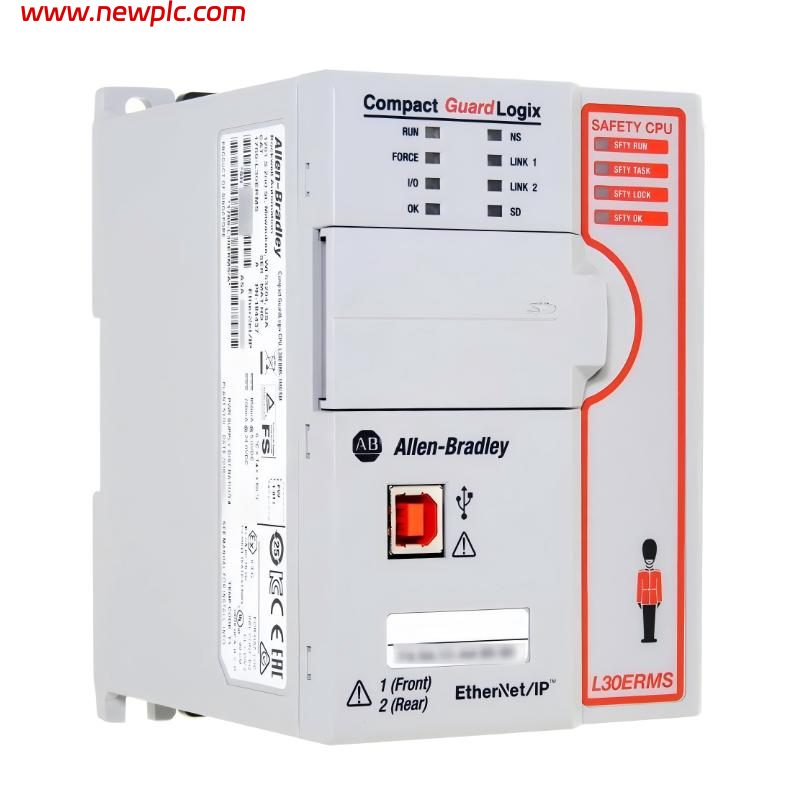

| Product Name | Allen-Bradley 1769-L30ERMS |
| Product Type | Compact GuardLogix Safety Controller |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | CompactLogix 5370 L3 / GuardLogix |
| CPU Type | Safety Integrated PLC / PAC |
| Standard Memory | 1 MB User Memory |
| Safety Memory | 0.5 MB Safety Memory |
| Communication Ports | Dual Ethernet/IP (with DLR support), USB |
| Ethernet Nodes Supported | Up to 16 EtherNet/IP nodes |
| Motion Control | Up to 4 CIP motion axes |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Performance Level | PLe (ISO 13849-1) |
| I/O Expansion | Up to 8 local I/O modules |
| Programming Software | Studio 5000 Logix Designer |
| Mounting Type | DIN rail / CompactLogix chassis system |
| Power Supply | 24 VDC system power (via backplane) |
| Isolation | 30V continuous basic insulation (Ethernet/USB/system) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, cULus, KC, RCM |
| Dimensions | Approx. 118 × 55 × 105 mm |
| Weight | Approx. 0.3 kg |
FAQ
FAQ
Q1: What is the 1769-L30ERMS used for?
The 1769-L30ERMS is a Compact GuardLogix safety PLC used for standard control and integrated safety applications in industrial automation systems.
Q2: Does this controller support safety functions?
Yes, it supports integrated safety with SIL 3 and PLe-rated safety processing for machine safety applications.
Q3: How many Ethernet ports does it have?
It has dual EtherNet/IP ports with Device Level Ring (DLR) capability for redundant network communication.
Q4: What is the memory capacity of this controller?
It provides 1 MB of standard user memory and 0.5 MB of dedicated safety memory.
Q5: How many motion axes can it control?
It supports up to 4 CIP motion axes for coordinated motion control.
Q6: What programming software is required?
It is programmed using Rockwell Studio 5000 Logix Designer.
Q7: Is this controller still in production?
It is listed as End of Life, with discontinuation announced for December 31, 2026, and a recommended replacement is the 5069-L310ERMS3.
Q8: What industries typically use this PLC?
It is commonly used in packaging, material handling, automotive automation, and safety-critical industrial control systems.
