Technical Specifications
| Parameter | Specification |
|---|---|

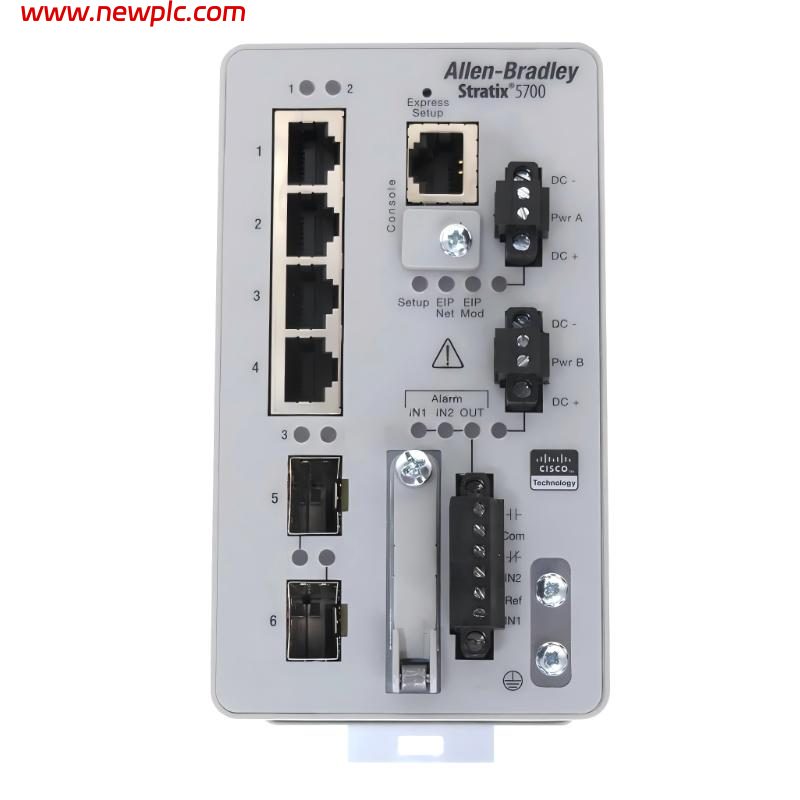

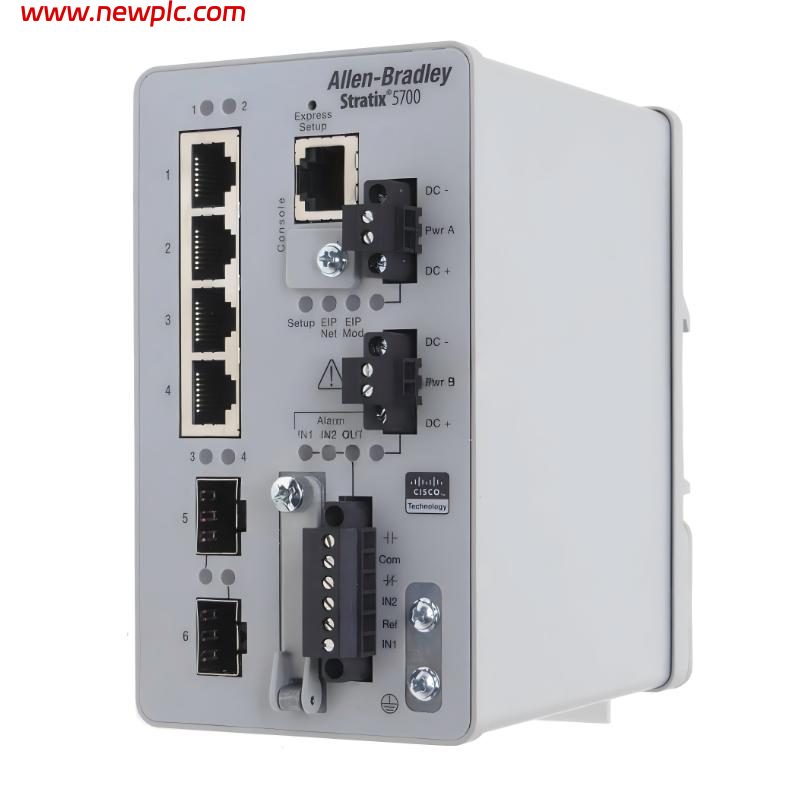

| Product Name | Allen-Bradley 1783-BMS06SA |
| Product Type | Stratix 5700 Managed Ethernet Switch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 5700 |
| Switch Type | Layer 2 Managed Industrial Switch |
| Total Ports | 6 Ports |
| Copper Ports | 4 × 10/100 Mbps RJ45 |
| SFP Ports | 2 × 100 Mbps SFP Slots |
| Communication Protocol | Ethernet / Industrial Ethernet |
| Network Management | Fully Managed |
| Mounting Type | DIN Rail (Top Hat Rail) |
| Power Input | 12–48 VDC |
| Maximum Power Consumption | Approx. 15 W |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Enclosure Rating | IP30 |
| Isolation Voltage | 50 V continuous (basic insulation) |
| Dimensions | Approx. 129.5 × 74.8 × 116.7 mm |
| Weight | Approx. 1.11 kg |
| Wiring Type | RJ45 Cat 5e / fiber via SFP |
| Certifications | CE, UL, KC, RCM |
FAQ
FAQ
Q1: What is the 1783-BMS06SA used for?
The 1783-BMS06SA is an industrial managed Ethernet switch used in Stratix 5700 network systems to connect and manage communication between PLCs, controllers, and industrial devices.
Q2: How many ports does this switch have?
It has a total of 6 ports: 4 copper RJ45 ports and 2 SFP fiber slots.
Q3: Is this switch managed or unmanaged?
It is a fully managed Layer 2 industrial Ethernet switch, supporting advanced network configuration and diagnostics.
Q4: What type of power supply does it require?
It operates on a 12–48 VDC industrial power supply.
Q5: Can it be used in harsh environments?
Yes, it is designed for industrial environments with an operating temperature range from -40°C to 60°C.
Q6: What mounting method is used?

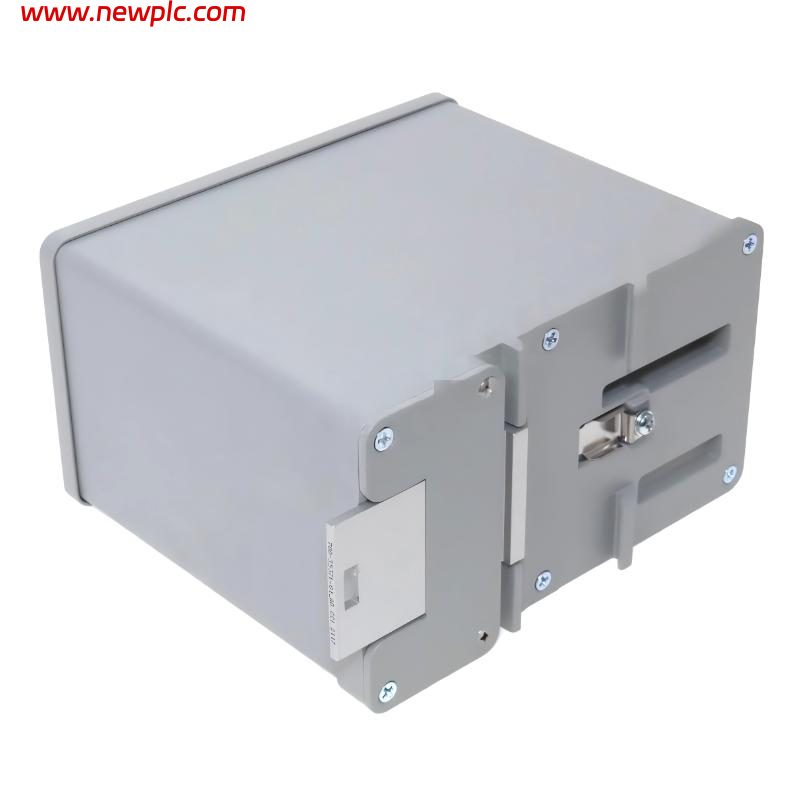

The switch is mounted on a standard DIN rail (top hat rail) inside industrial control cabinets.
Q7: Does it support fiber connections?
Yes, it supports fiber communication through 2 SFP slots.
Q8: What is the protection rating of the device?
The enclosure is rated IP30, suitable for installation inside protected control panels rather than direct harsh exposure.
