Technical Specifications
| Parameter | Specification |
|---|---|

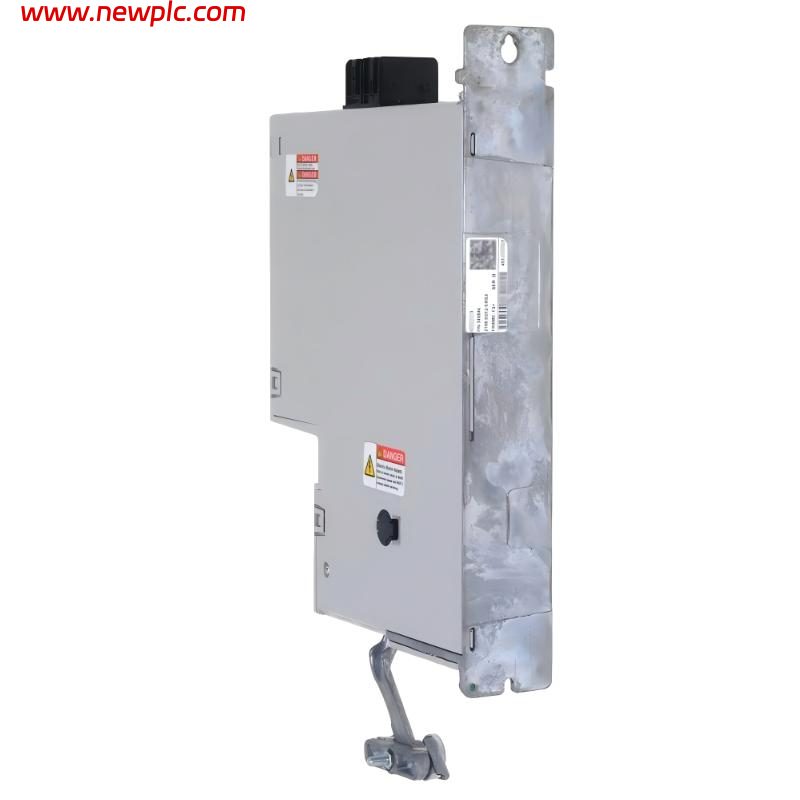

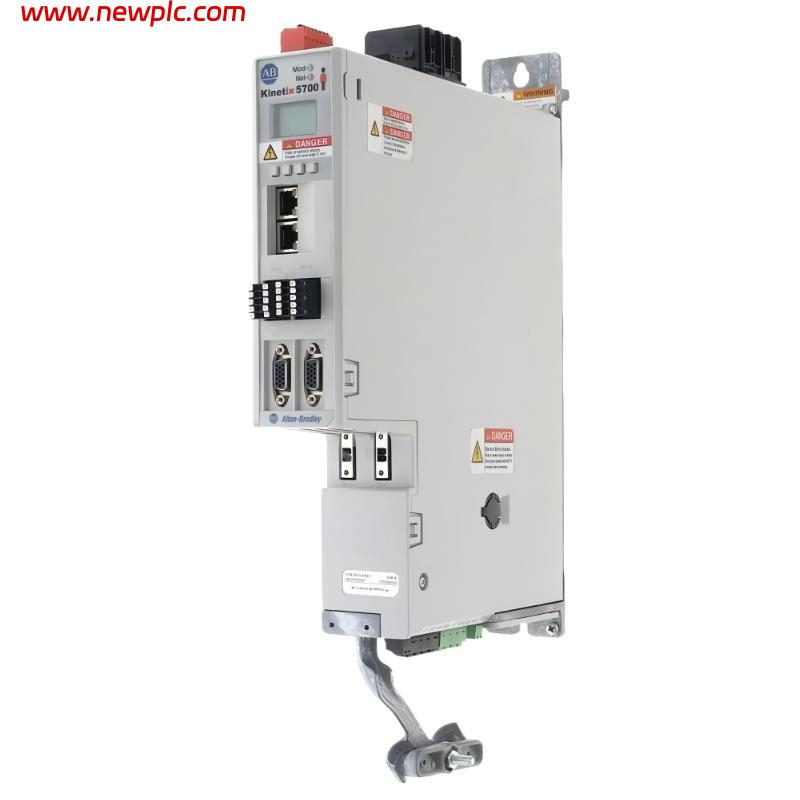

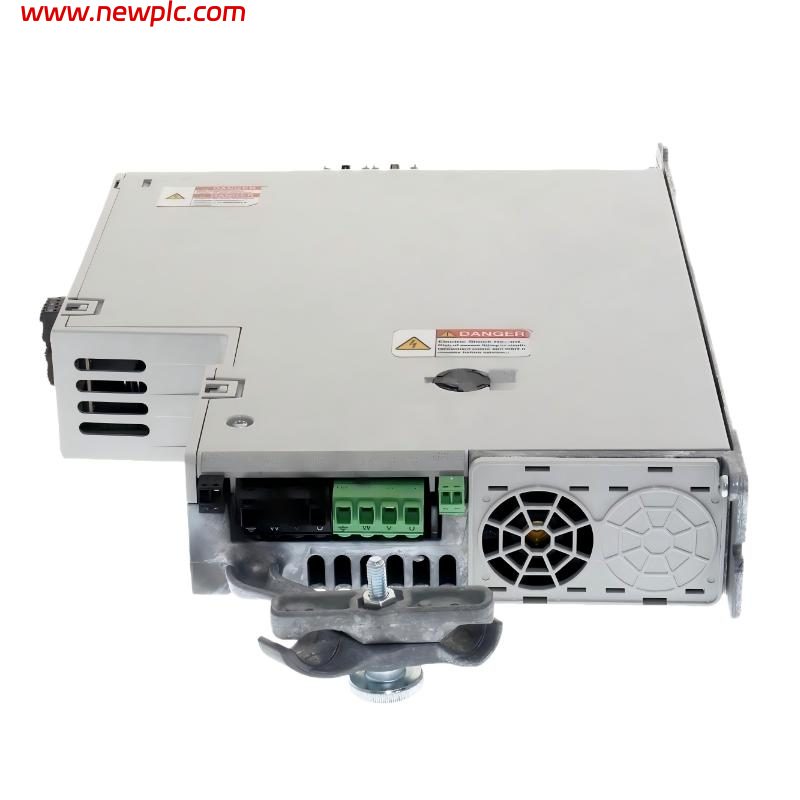

| Product Name | Allen Bradley 2198-D032-ERS3 |
| Product Type | Kinetix 5700 Dual-Axis Servo Drive |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Kinetix 5700 |
| Drive Type | Dual-axis inverter module |
| Input Voltage | 460–480V AC (3-phase) |
| Voltage Range | Approx. 324–528V AC |
| Continuous Output Power | 8.9 kW (480V class) |
| Lower Voltage Power | 4.5 kW (240V equivalent operation) |
| Continuous Output Current | 13 A RMS (18.3 A 0-peak) |
| Peak Output Current | 32.5 A RMS (45.9 A 0-peak) |
| Control Bandwidth (Velocity Loop) | 400 Hz |
| Control Bandwidth (Current Loop) | 1000 Hz |
| PWM Frequency | 4 kHz |
| Communication | EtherNet/IP |
| Safety Functions | Safe Torque-Off (STO), Safe Stop 1 (SS1) |
| Axis Support | 2 axes (dual-axis module) |
| Mounting Type | Panel mount, zero-stack compatible |
| Enclosure Rating | IP20 |
| Internal Capacitance | 390 µF |
| Module Width | 55 mm |
| Dimensions | Approx. 252 × 55 × 358 mm |
| Weight | Approx. 4.16 kg |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, KC, RCM, TUV |
FAQ
FAQ
Q1: What is the main function of the 2198-D032-ERS3?
The 2198-D032-ERS3 is a dual-axis servo drive used in Kinetix 5700 systems to control two servo motors independently from a single module.
Q2: What systems is this drive compatible with?
It is designed for Allen-Bradley Kinetix 5700 platforms and integrates with Logix controllers via EtherNet/IP.
Q3: How many axes can it control?
It controls two independent motion axes within one drive module.
Q4: What is the power rating of this drive?
It supports up to 8.9 kW continuous output power at 480V AC operation.
Q5: Does it support functional safety features?
Yes, it includes integrated safety functions such as Safe Torque-Off (STO) and Safe Stop 1 (SS1).
Q6: What communication protocol does it use?
The drive uses EtherNet/IP for motion control, configuration, and diagnostics.
Q7: What is the typical installation method?
It is installed as a panel-mounted, zero-stack compatible module within a Kinetix 5700 rack system.
Q8: What are the environmental operating limits?
It operates between 0°C and 50°C with up to 95% non-condensing humidity.
