Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Allen-Bradley 2090-K2CK-D15M |

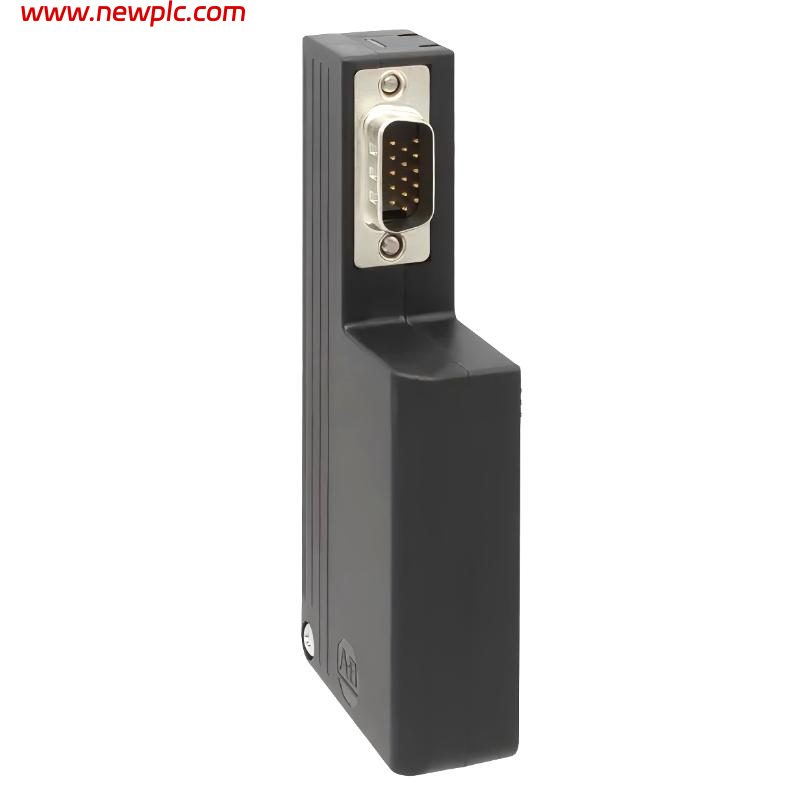

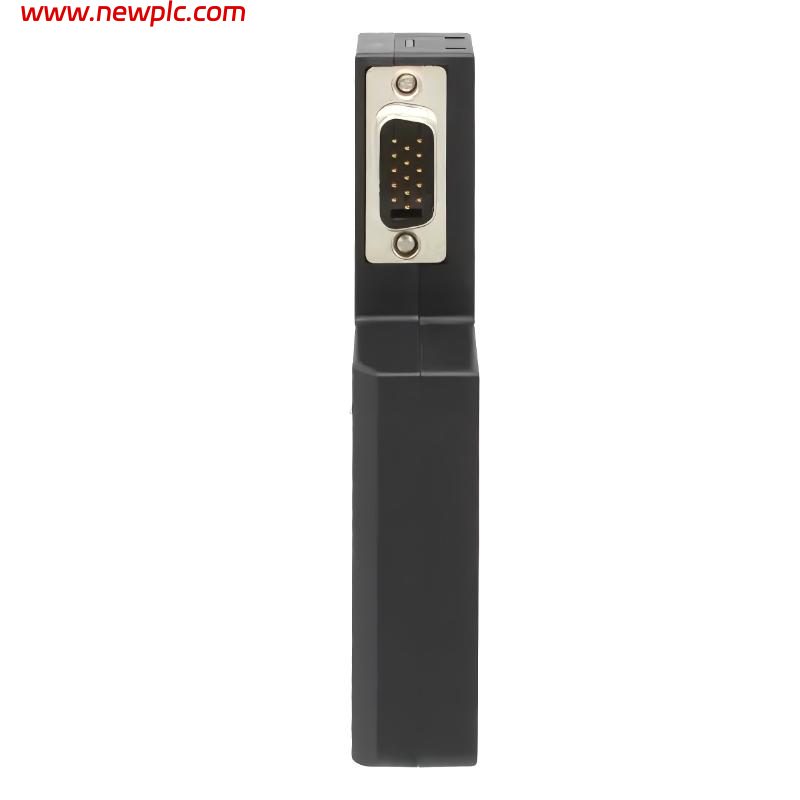

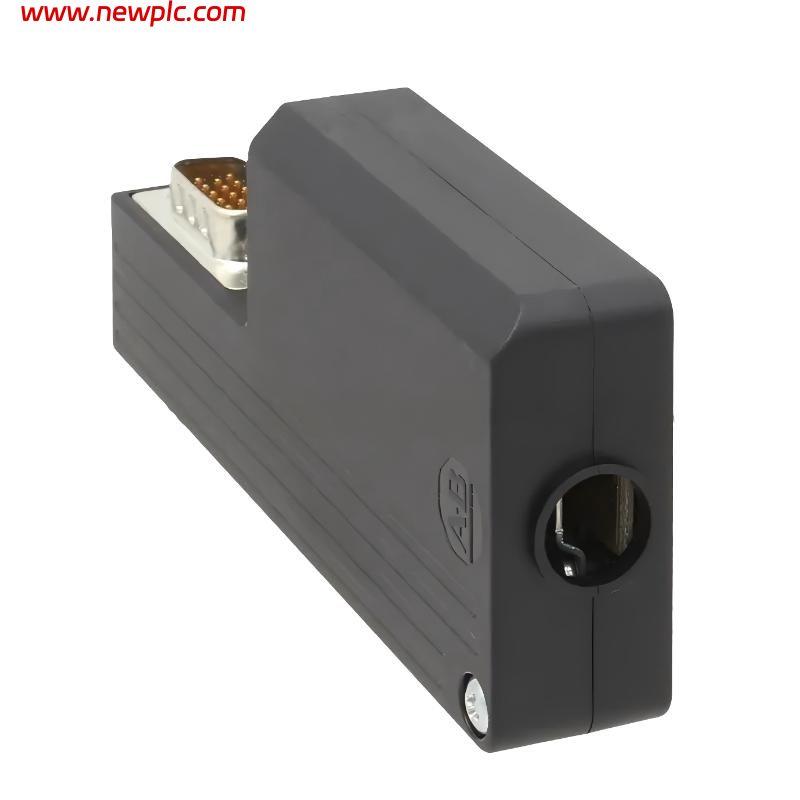

| Product Type | Kinetix 2000 Feedback Connector Kit |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Bulletin 2090 |
| Application | Motor Feedback / Encoder Connection |
| Connector Type | 15-pin Male D-Sub |
| Form Factor | Low-profile connector kit |
| Drive Compatibility | Kinetix 2000, Kinetix 300, Kinetix 350 (typical use) |
| Cable Diameter Range | Approx. 4 mm – 10 mm |
| Wire Gauge Range | 30 – 16 AWG |
| Terminal Type | Screw / Clamp termination |
| Shielding | 360° cable shield grounding supported |
| ESD Protection | ESD-sensitive device |
| Mounting Type | Panel / cable termination assembly |
| Operating Environment | Industrial control cabinet use |
| Material | Shielded metal / thermoplastic housing |
| Pin Count | 15 pins |
| Recommended Wire Strip Length | Approx. 5 mm |
| Dimensions | Approx. 241 × 176 × 26 mm |
| Weight | Approx. 0.07 kg |
FAQ
FAQ
Q1: What is the 2090-K2CK-D15M used for?
It is a low-profile feedback connector kit used to terminate motor encoder or feedback cables in Allen-Bradley Kinetix 2000 and related servo drive systems.
Q2: Which systems is this connector compatible with?
It is primarily used with Kinetix 2000, Kinetix 300, and Kinetix 350 servo drive platforms.
Q3: Is this a complete cable or just a connector?
It is only a connector kit. The motor feedback cable must be purchased separately and terminated using this kit.
Q4: What type of connector does it use?
It uses a 15-pin male D-sub connector for motor feedback signal transmission.
Q5: What wire sizes can be used with this kit?
It supports wire sizes ranging from 30 AWG to 16 AWG, depending on installation requirements.
Q6: Is shielding important for installation?
Yes. Proper 360° shield termination is required to reduce electromagnetic interference and ensure stable feedback signals.
Q7: Is this product still actively manufactured?
No, Rockwell Automation has marked the 2090-K2CK-D15M as discontinued, with official discontinuation effective in 2024.
Q8: What should be considered during installation?
Proper ESD protection, correct wire stripping length, and secure shield grounding are essential to avoid signal issues and connector damage.
