Technical Specifications
| Parameter | Specification |
|---|---|

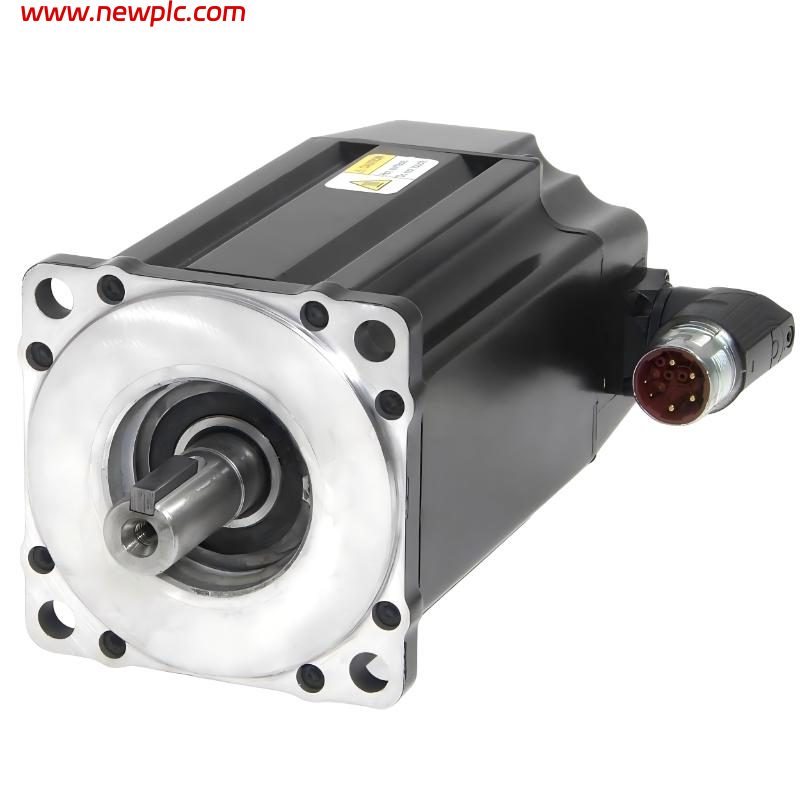

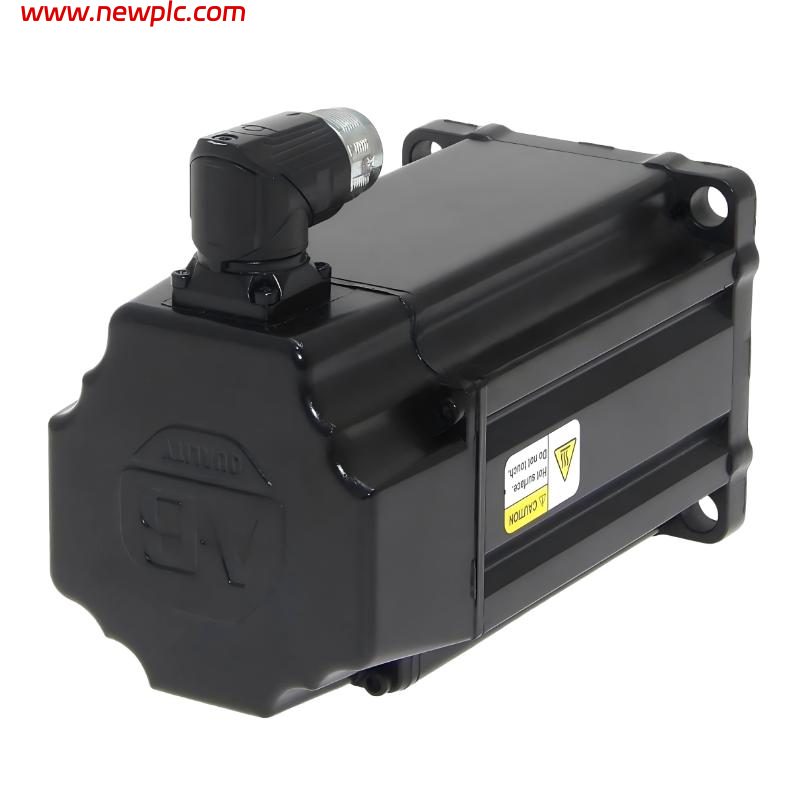

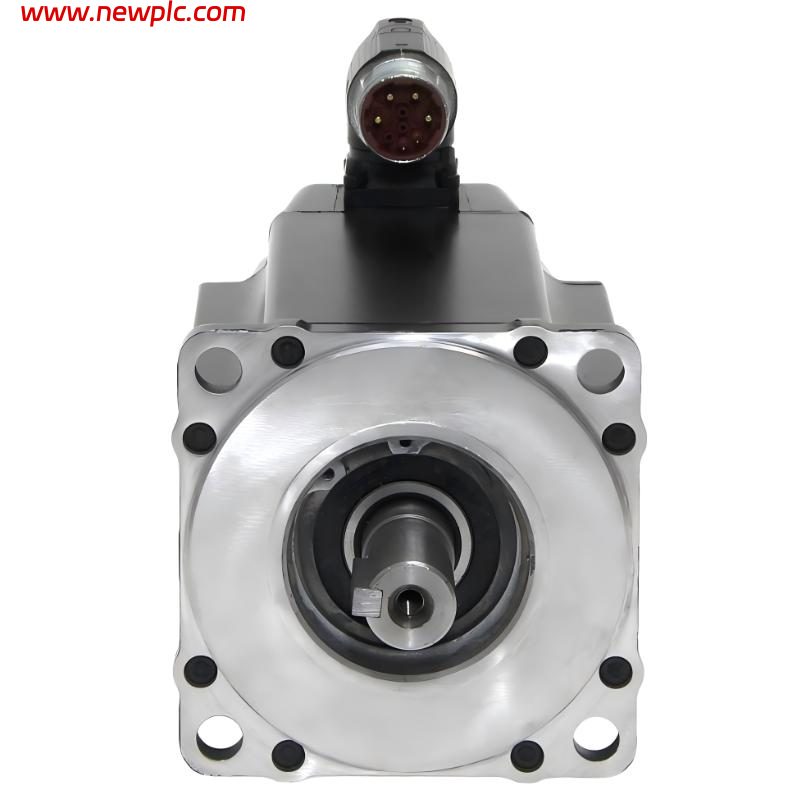

| Product Name | Allen Bradley VPL-B1652C-PJ14AA |
| Product Type | Kinetix VP Low Inertia Servo Motor |
| Manufacturer | Allen Bradley / Rockwell Automation |
| Motor Type | AC Brushless Servo Motor |
| Series | Kinetix VP |
| Voltage Class | 400 / 480V AC |
| Frame Size | 165 mm Bolt Circle |
| Magnet Stack Length | 2 Magnet Stacks |
| Rated Speed | 2500 rpm |
| Maximum Speed | 2700 rpm |
| Continuous Torque | Approx. 19.4 Nm |
| Peak Torque | Approx. 48.6 Nm |
| Rated Power | Approx. 4.18 kW |
| Feedback Type | 18-bit Absolute Multi-turn Encoder |
| Feedback Protocol | Hiperface DSL |
| Shaft Type | Keyed Shaft |
| Shaft Seal | Standard Configuration |
| Brake Option | 24V DC Holding Brake |
| Connector Type | Single SpeedTec Right Angle DIN Connector |
| Mounting Type | IEC Metric Flange Mount |
| Enclosure Rating | IP66 |
| Cooling Method | Natural Cooling |
| Number of Phases | 3-Phase |
| Rated Frequency | 0–400 Hz |
| Operating Temperature | 0°C to 40°C |
| Duty Cycle | S1 Continuous Duty |
| Rotor Inertia | Approx. 0.00153 kg·m² |
| Insulation Class | Class H (typical VP series) |
| Dimensions | Approx. 165 mm frame size |
| Weight | Approx. 14.5 kg |
FAQ
FAQ
Q1: What is the VPL-B1652C-PJ14AA used for?
The VPL-B1652C-PJ14AA is used in high-performance motion control systems such as robotics, packaging machines, material handling equipment, and precision automation lines.
Q2: Does this motor include a holding brake?
Yes, this model is equipped with a 24V DC holding brake for maintaining position when the motor is at rest.
Q3: What type of encoder is used in this servo motor?
It uses an 18-bit absolute multi-turn encoder with Hiperface DSL feedback for precise positioning and speed control.
Q4: What is the rated speed of this motor?
The rated speed is 2500 rpm, with a maximum speed of approximately 2700 rpm.
Q5: What shaft configuration does this model use?
The motor uses a keyed shaft design for secure mechanical coupling and torque transmission.
Q6: Which drives are compatible with this servo motor?
It is commonly used with Allen Bradley Kinetix 5500 and Kinetix 5700 servo drive systems.
Q7: What protection rating does this motor provide?
The motor has an IP66 enclosure rating, offering strong protection against dust and water ingress in industrial environments.
Q8: What is the main difference between this and PJ12AA variants?
The PJ14AA variant includes a 24V holding brake, while PJ12AA versions typically do not include a brake and may use different shaft/feedback configurations.
