Technical Specifications
| Parameter | Specification |
|---|---|

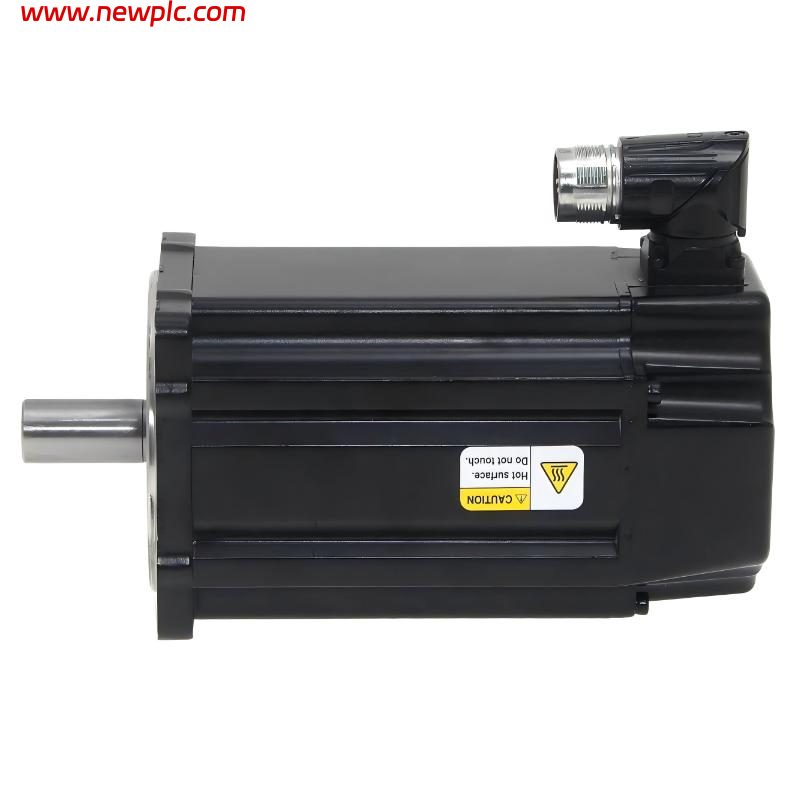

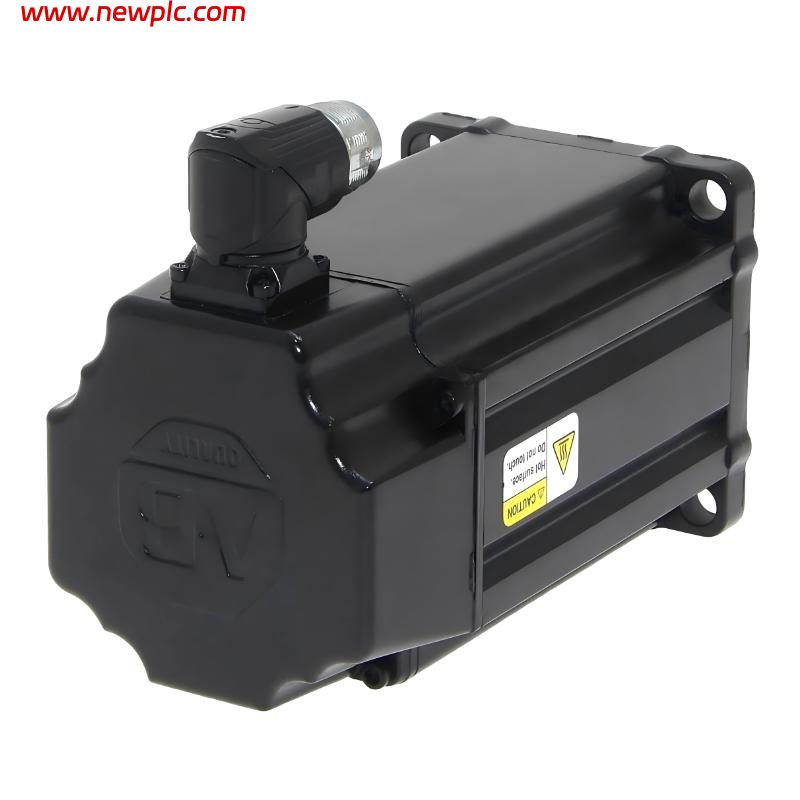

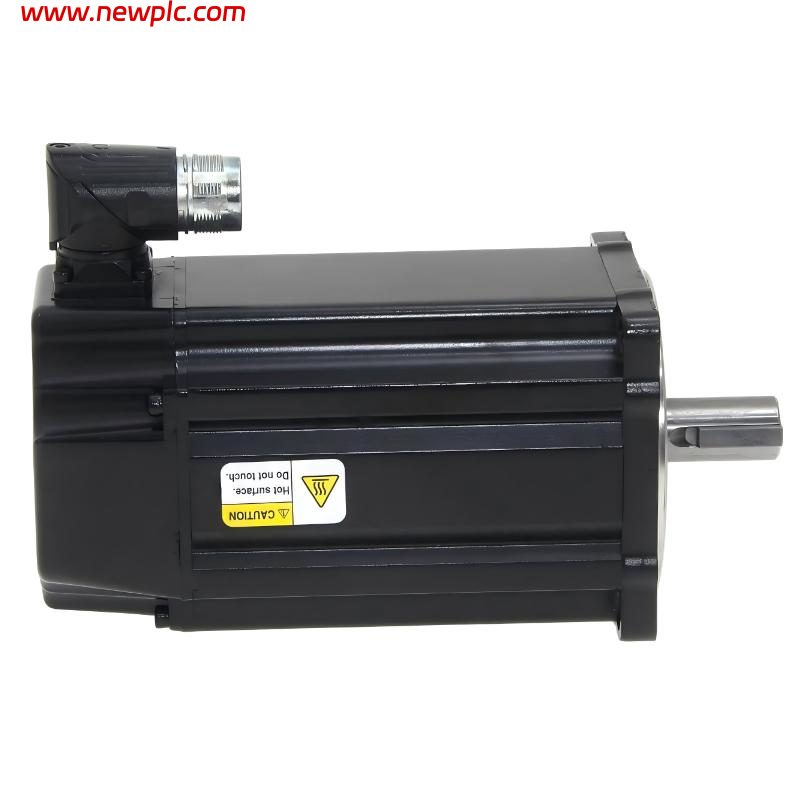

| Product Name | Allen Bradley VPL-B1651F-CK12AA |
| Product Type | Kinetix VP Low Inertia Servo Motor |
| Manufacturer | Allen Bradley / Rockwell Automation |
| Motor Type | AC Brushless Servo Motor |
| Series | Kinetix VP |
| Voltage Class | 400/480V AC |
| Frame Size | 165 mm Bolt Circle |
| Magnet Stack Length | 1 Magnet Stack |
| Rated Speed | 4500 rpm |
| Maximum Speed | Up to 6600 rpm |
| Continuous Torque | Approx. 11.43 Nm |
| Peak Torque | Approx. 22.45 Nm |
| Rated Power | Approx. 4.38 kW |
| Feedback Type | 18-bit Absolute Single-turn Digital Encoder |
| Feedback Protocol | Hiperface DSL |
| Shaft Type | Smooth / Keyless Shaft |
| Shaft Seal | Standard Configuration |
| Brake Option | No Holding Brake |
| Connector Type | Single SpeedTec Right Angle DIN Connector |
| Mounting Type | IEC Metric Mounting Flange |
| Enclosure Rating | IP50 standard, IP66 supported with proper installation |
| Cooling Method | Natural Cooling |
| Number of Phases | 3-Phase |
| Rated Frequency | 0–400 Hz |
| Operating Temperature | 0°C to 40°C |
| Rotor Type | Low Inertia |
| Rotor Inertia | Approx. 7.83E-04 kg·m² |
| Dimensions | Approx. 165 mm frame size |
| Weight | Approx. 15.3 kg |
FAQ
FAQ
Q1: What is the VPL-B1651F-CK12AA servo motor designed for?
The VPL-B1651F-CK12AA is designed for high-performance motion control applications such as robotics, packaging machinery, automated assembly systems, and material handling equipment.
Q2: What type of encoder does this motor use?
This model uses an 18-bit absolute single-turn digital encoder with Hiperface DSL feedback technology for accurate positioning and motion control.
Q3: Does the motor include a holding brake?
No, the VPL-B1651F-CK12AA is supplied without a holding brake.
Q4: What shaft configuration is included with this motor?
The motor features a smooth keyless shaft designed for precise coupling and reduced backlash in servo applications.
Q5: What is the rated operating speed of the motor?
The rated operating speed is 4500 rpm, while the motor can achieve speeds up to approximately 6600 rpm depending on the application setup.
Q6: Which Allen Bradley drives are compatible with this servo motor?
The motor is commonly paired with Allen Bradley Kinetix 5500 and Kinetix 5700 servo drive systems.
Q7: Is the motor suitable for industrial environments?
Yes, the motor is engineered for demanding industrial environments and supports IP50 protection as standard, with IP66 capability under appropriate installation conditions.
Q8: What connector style does the motor use?
The motor is equipped with a Single SpeedTec right-angle DIN connector that simplifies installation and provides reliable industrial connectivity.
