Technical Specifications
| Parameter | Specification |
|---|---|

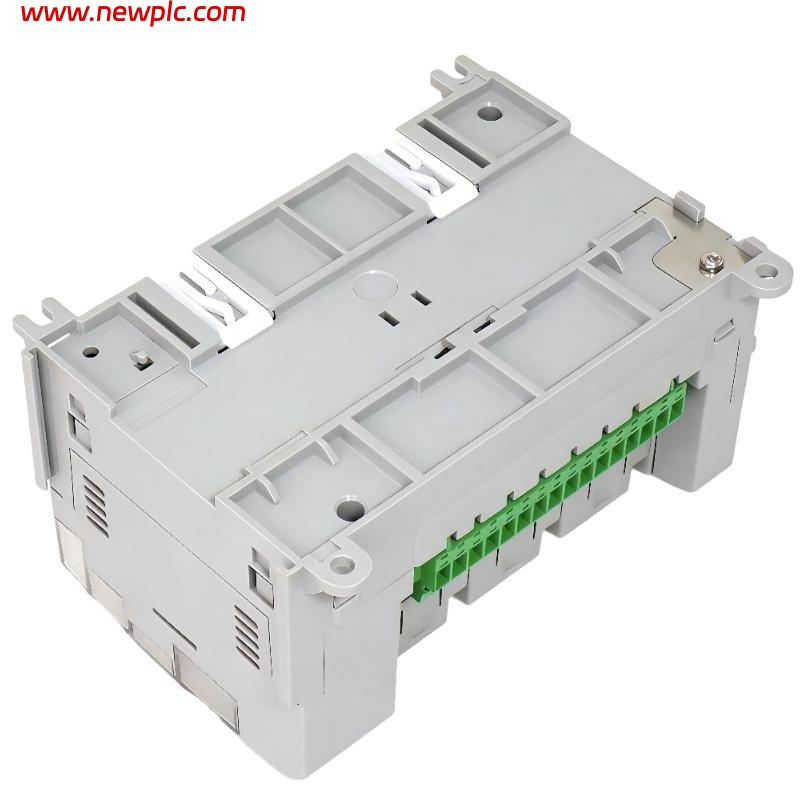

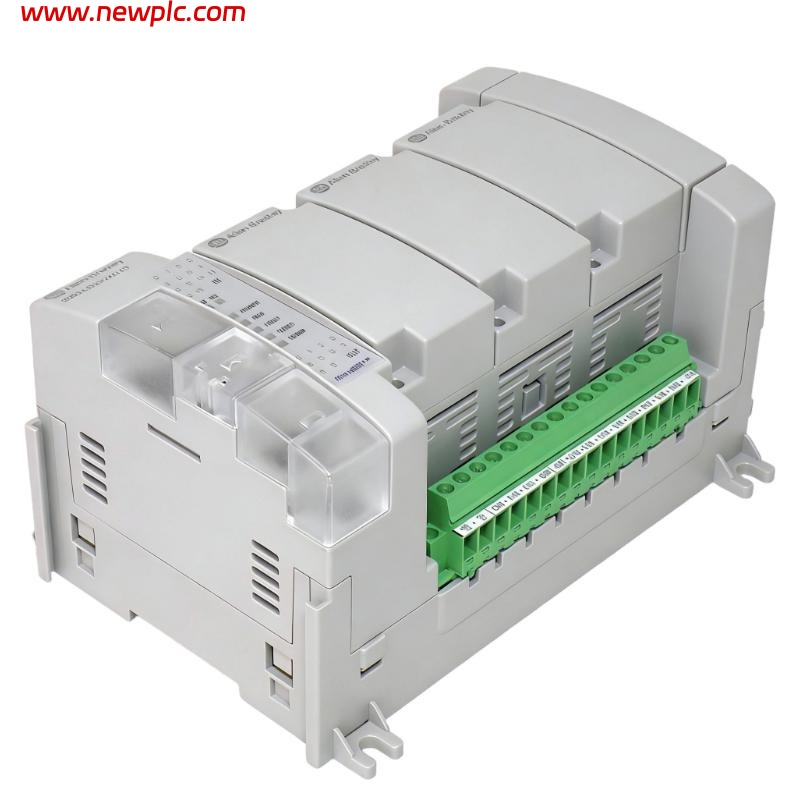

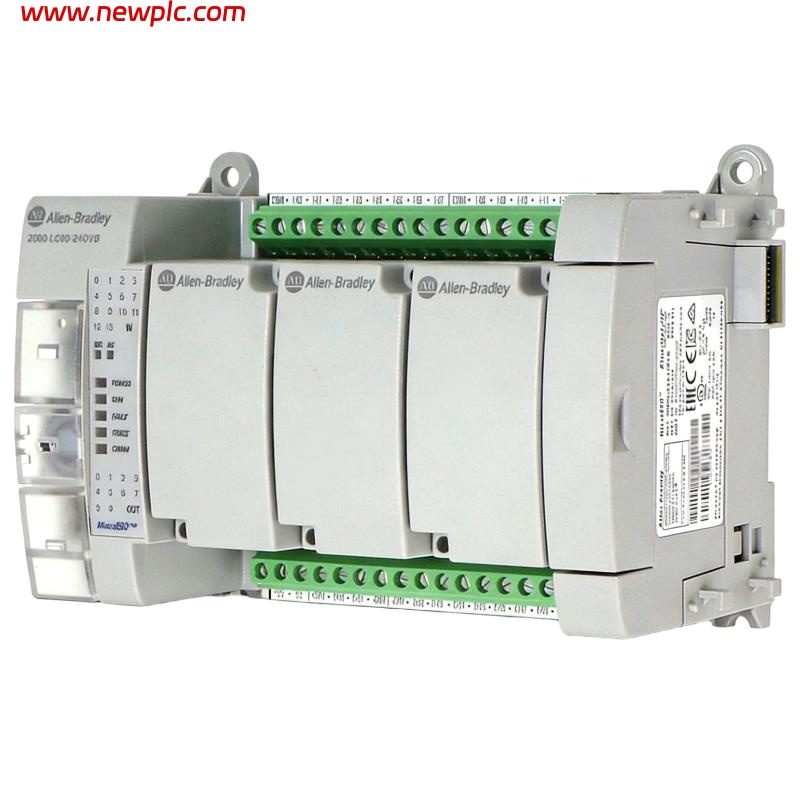

| Product Type | Micro850 Programmable Logic Controller (PLC) |
| Model | Allen-Bradley 2080-LC50-24QVB |
| Series | Micro800 / Micro850 |
| Function | Compact industrial machine controller |
| Input Voltage | 24 V DC / 24 V AC |
| Operating Voltage Range | 20.4–26.4 V DC |
| Digital Inputs | 14 (24 V AC/DC) |
| Digital Outputs | 10 (24 V DC sink / transistor type) |
| Total I/O Points | 24 built-in (expandable up to 132 I/O) |
| High-Speed Counters | 4 (up to 100 kHz) |
| Pulse Train Outputs (PTO) | 2 channels |
| Communication Ports | Ethernet/IP, USB programming port, RS-232/RS-485 serial |
| Expansion Capability | Up to 4 expansion I/O modules + plug-in modules |
| Memory | ~140 KB user/project memory |
| Programming Software | Connected Components Workbench (CCW) |
| Mounting Type | DIN rail / panel mount |
| Protection Class | IP20 |
| Operating Temperature | -20 to 65 °C |
| Dimensions (H × W × D) | 90 × 145 × 80 mm |
| Weight | ~0.44–1.25 kg |
FAQ
FAQ
Q1. What is the 2080-LC50-24QVB used for?
It is a Micro850 PLC used for compact machine control and small industrial automation systems.
Q2. How many I/O points does it have?
It has 24 built-in I/O points, including 14 inputs and 10 outputs.
Q3. What type of outputs does it use?
It uses 24 V DC sinking transistor outputs for fast switching applications.
Q4. Can this PLC be expanded?
Yes, it supports up to 4 expansion I/O modules and multiple plug-in modules, reaching up to 132 I/O points.
Q5. What communication interfaces are included?
It includes Ethernet/IP, USB programming port, and RS-232/RS-485 serial communication.
Q6. Does it support motion control?
Yes, it supports 2 pulse train outputs (PTO) and 4 high-speed counters.
Q7. What software is used for programming?
It is programmed using Connected Components Workbench (CCW).
Q8. What are its size and weight?
Its dimensions are 90 × 145 × 80 mm, and its weight is approximately 0.44–1.25 kg.
