Technical Specifications
| Parameter | Specification |
|---|---|

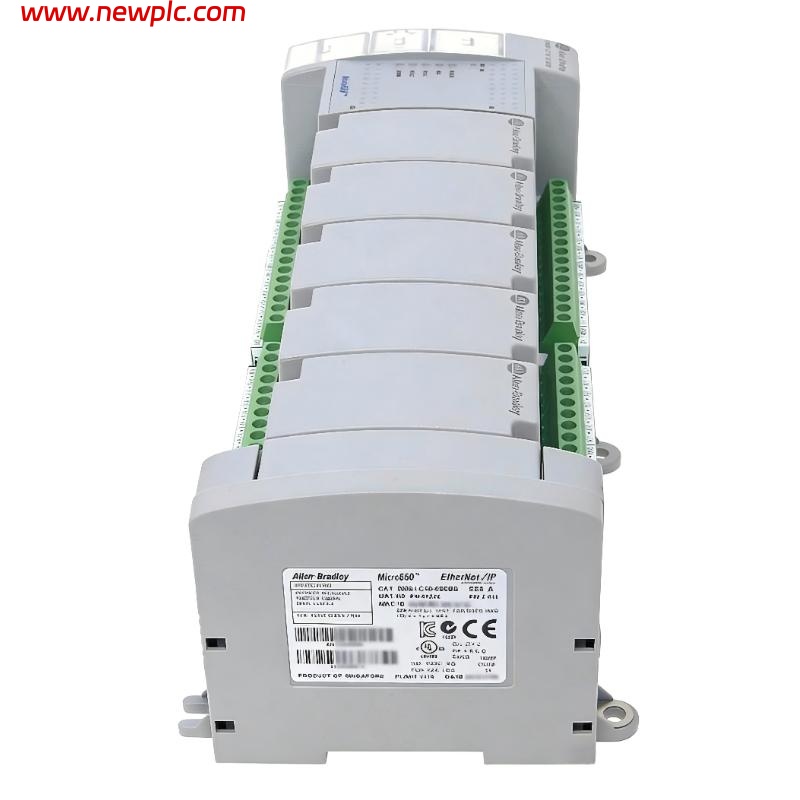

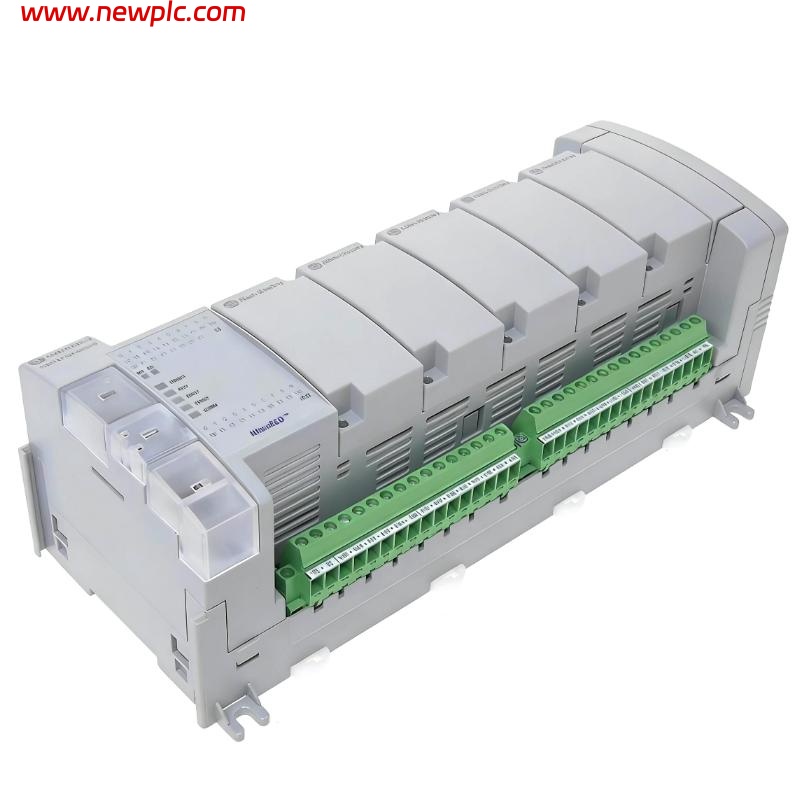

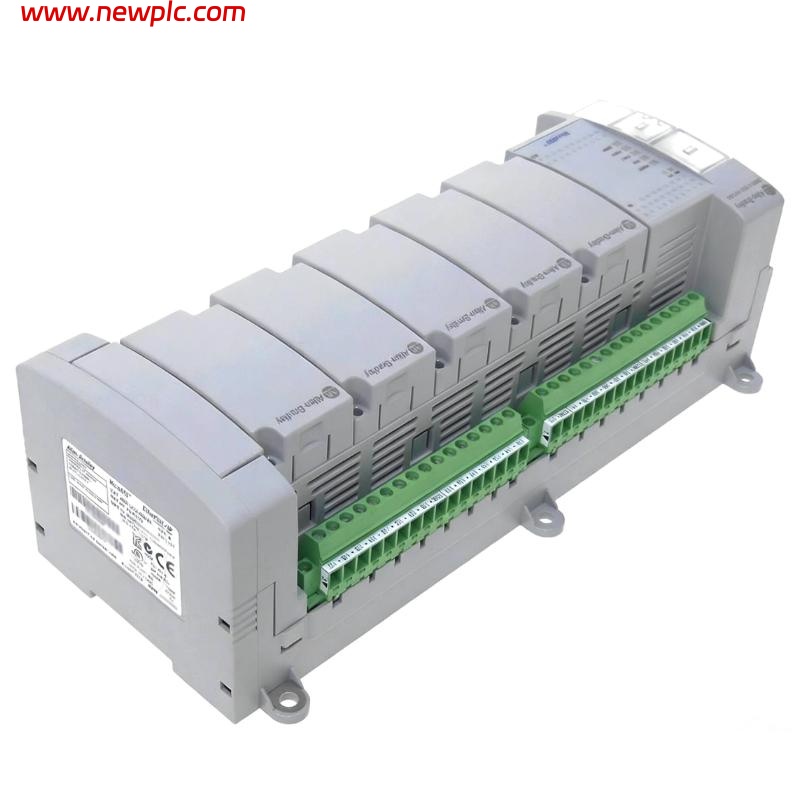

| Product Type | Micro850 Programmable Logic Controller (PLC) |
| Model | Allen-Bradley 2080-LC50-48QBB |
| Series | Micro800 / Micro850 |
| Function | Compact Ethernet-enabled machine controller |
| Input Voltage | 24 V DC / 24 V AC |
| Operating Voltage Range | 20.4–26.4 V DC |
| Digital Inputs | 28 (24 V AC/DC, mix of high-speed and standard) |
| Digital Outputs | 20 (24 V DC source outputs) |
| Total I/O Points | 48 built-in I/O |
| High-Speed Inputs | 12 channels |
| High-Speed Outputs | 4 channels |
| Pulse Train Outputs (PTO) | Up to 3 channels |
| High-Speed Counter Support | Up to 6 channels |
| Communication Ports | Ethernet/IP, USB programming port, RS-232/RS-485 |
| Programming Software | Connected Components Workbench (CCW) |
| Expansion Capability | Up to 5 plug-in modules |
| Mounting Type | DIN rail |
| Protection Class | IP20 |
| Operating Temperature | -20 to 65 °C |
| Dimensions (H × W × D) | 90 × 145 × 80 mm |
| Weight | ~0.88 kg |
FAQ
FAQ
Q1. What is the 2080-LC50-48QBB used for?
It is a Micro850 PLC designed for mid-level industrial machine control and automation systems requiring higher I/O capacity.
Q2. How many inputs and outputs does it have?
It provides 28 inputs and 20 outputs, totaling 48 I/O points.
Q3. Does it support Ethernet communication?
Yes, it includes built-in EtherNet/IP communication for industrial networking.
Q4. Can it handle motion control tasks?
Yes, it supports up to 3 pulse train outputs and multiple high-speed counters.
Q5. What software is used to program it?
It is programmed using Connected Components Workbench (CCW).
Q6. Is the PLC expandable?
Yes, it supports up to 5 plug-in expansion modules for additional functionality.
Q7. What is the operating temperature range?
It operates between -20 °C and 65 °C.
Q8. What are its size and weight?
Its dimensions are 90 × 145 × 80 mm, and its weight is approximately 0.88 kg.
