Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Micro800 |

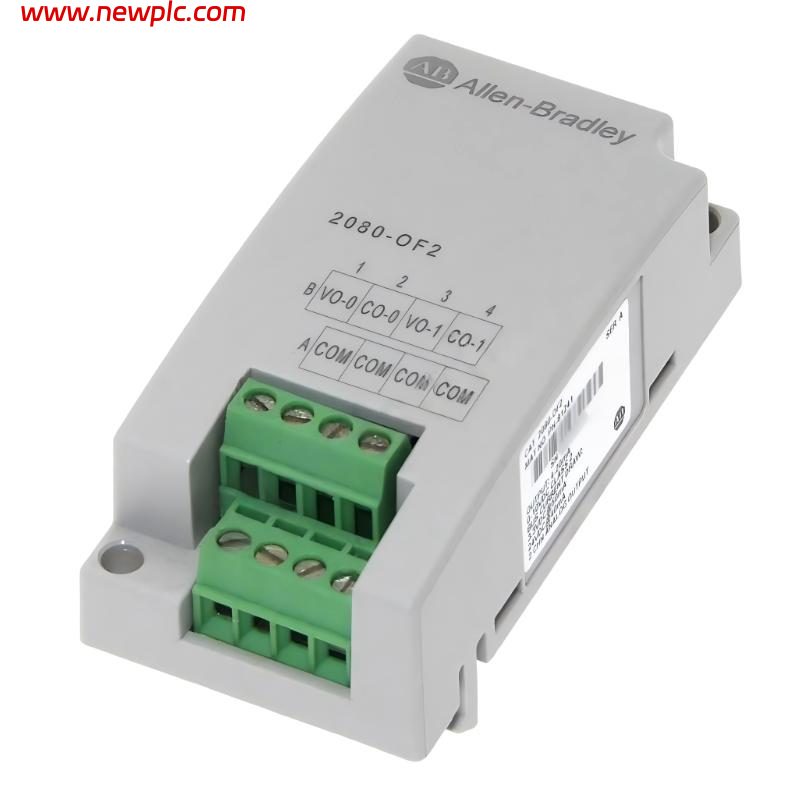

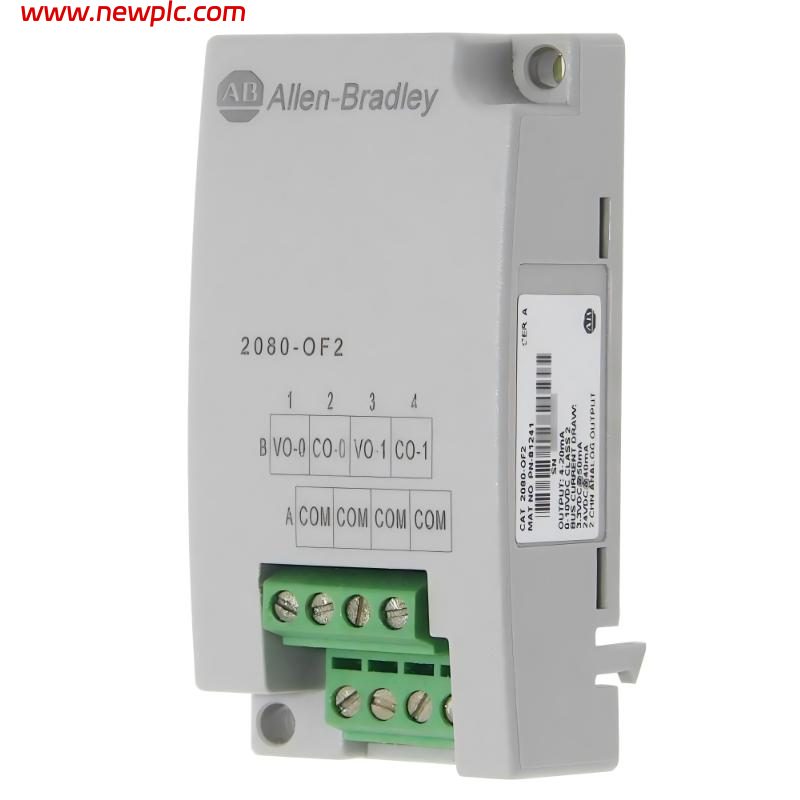

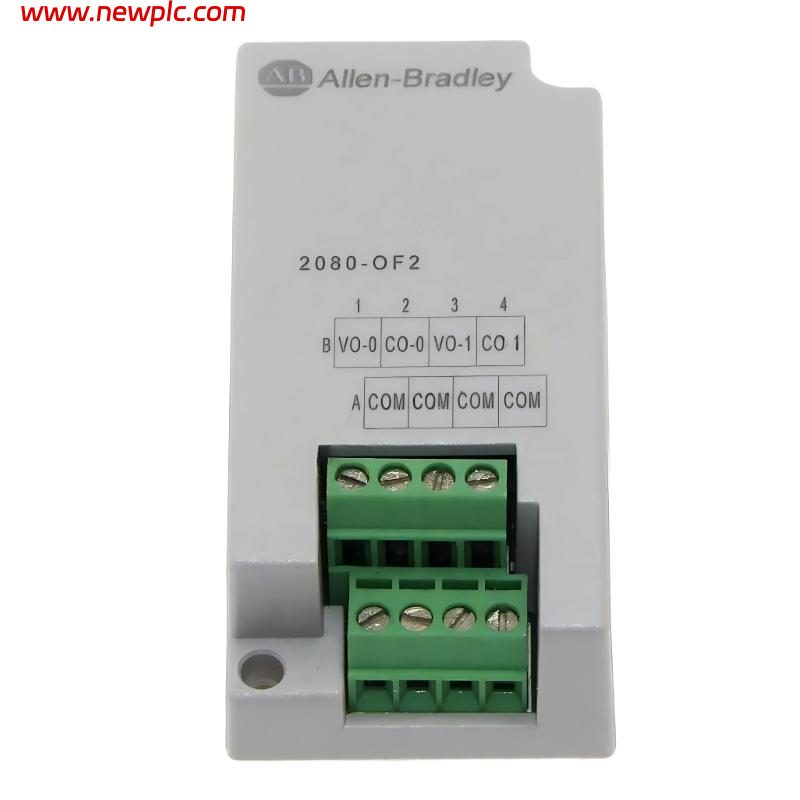

| Model Number | 2080-OF2 |
| Product Type | Analog Output Plug-in Module |
| Module Compatibility | Micro810, Micro820, Micro830, Micro850 PLCs |
| Number of Outputs | 2 Analog Outputs |
| Output Signal Types | Voltage / Current |
| Voltage Output Range | 0…10V DC |
| Current Output Range | 0…20 mA, 4…20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.5% Full Scale |
| Conversion Time | Approx. 2 ms |
| Isolation | Non-isolated |
| Power Supply | Powered by Controller |
| Current Consumption | Approx. 50 mA |
| Connector Type | Plug-in Terminal Connector |
| Mounting Method | Plug-in Module Installation |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, CSA, KC |
| Protection Rating | IP20 |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | 51 × 28 × 27 mm |
| Actual Weight | Approx. 0.04 kg |
| Typical Applications | Analog Signal Control, VFD Speed Reference, Valve Control, Process Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 2080-OF2 used for?
A1: The 2080-OF2 is a Micro800 analog output plug-in module used to provide additional analog output channels for PLC-based automation systems.
Q2: How many analog outputs does the 2080-OF2 provide?
A2: The module provides 2 configurable analog output channels.
Q3: What output signal types are supported by the 2080-OF2?
A3: The module supports voltage outputs (0…10V DC) and current outputs (0…20 mA and 4…20 mA).
Q4: Which controllers are compatible with the 2080-OF2?
A4: The module is compatible with Allen-Bradley Micro810, Micro820, Micro830, and Micro850 controllers.
Q5: What is the analog output resolution of the 2080-OF2?
A5: The module provides 12-bit analog output resolution.
Q6: What are the actual dimensions of the 2080-OF2?
A6: The module dimensions are approximately 51 × 28 × 27 mm.
Q7: What is the actual weight of the 2080-OF2?
A7: The module weighs approximately 0.04 kg.
Q8: What are common applications for the 2080-OF2?
A8: Common applications include variable frequency drive speed control, proportional valve control, process automation, analog signal generation, and industrial machine control.
