Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Micro800 Expansion I/O |

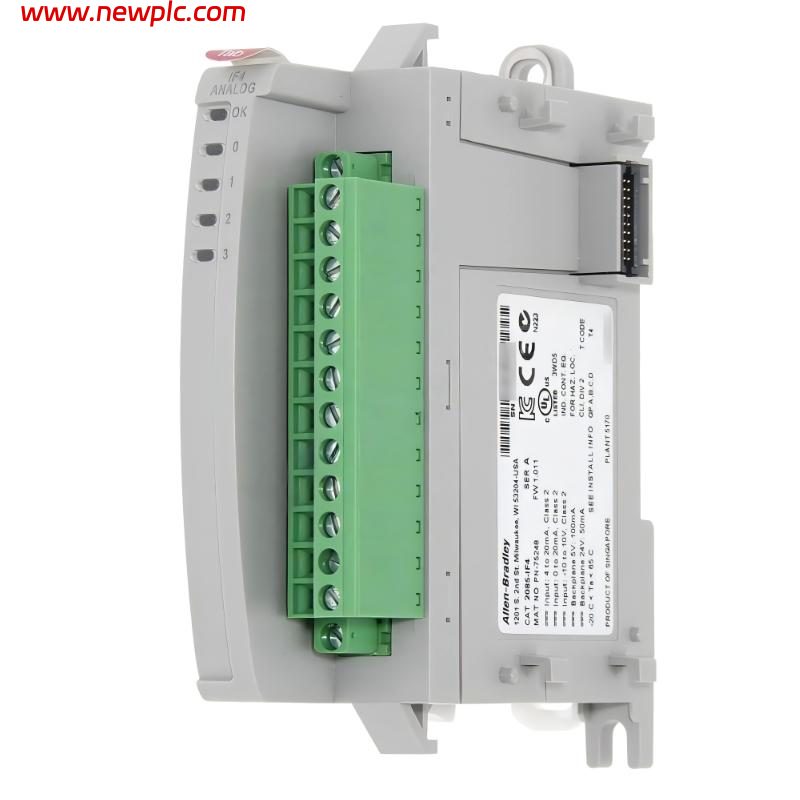

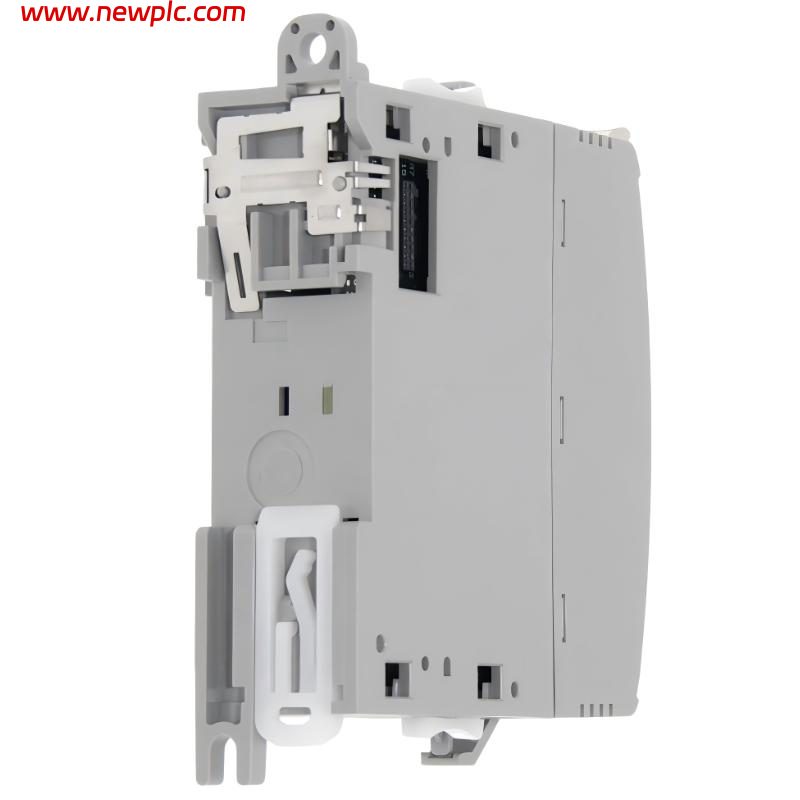

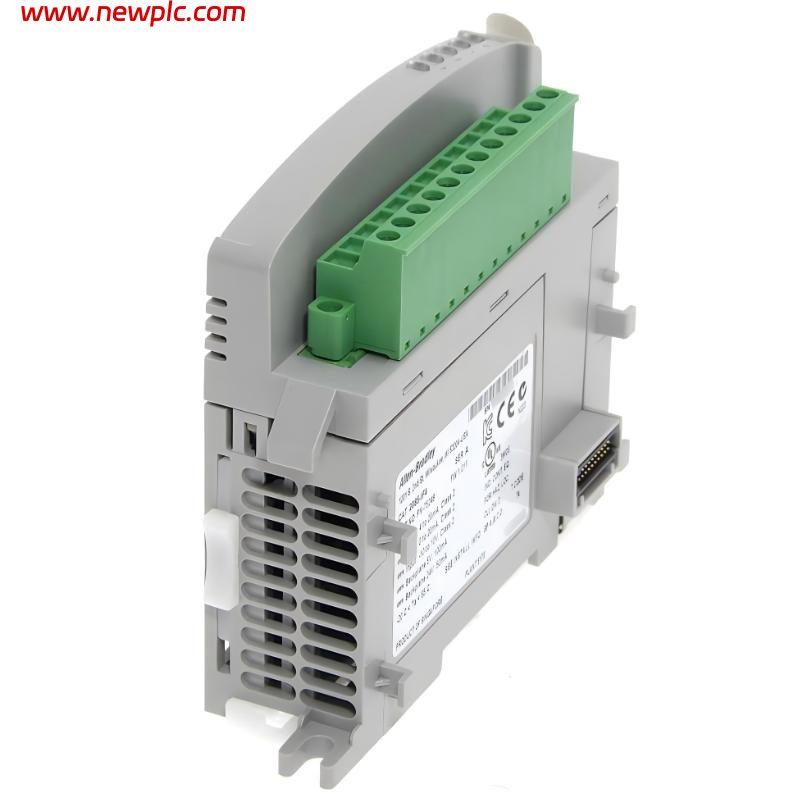

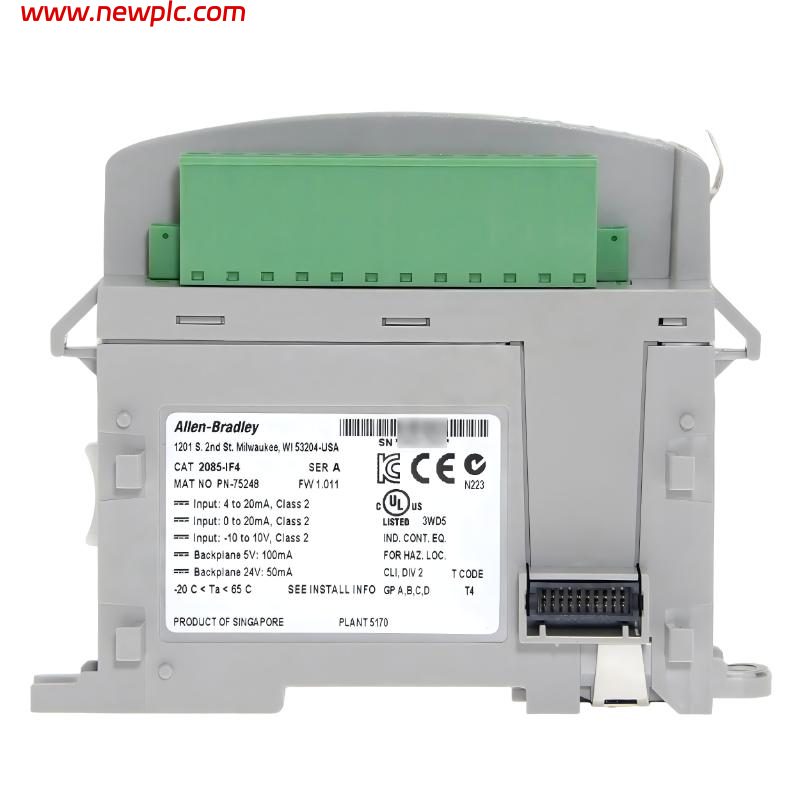

| Model Number | 2085-IF4 |
| Product Type | Analog Input Expansion Module |
| Compatible Controllers | Micro850, Micro870 |
| Number of Inputs | 4 Analog Inputs |
| Input Signal Types | Voltage / Current |
| Voltage Input Ranges | 0…10V DC, ±10V DC |
| Current Input Ranges | 0…20 mA, 4…20 mA |
| Resolution | 15-bit |
| Input Type | Single-Ended Non-isolated |
| Conversion Time | Approx. 2.5 ms per Channel |
| Accuracy | ±0.3% Full Scale |
| Backplane Power Consumption | Approx. 75 mA @ 5V DC |
| External Power Supply | 24V DC |
| Wiring Connection | Removable Terminal Block |
| Status Indicators | Module Status LED |
| Mounting Type | DIN Rail or Panel Mount |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G |
| Vibration Resistance | 5 G at 10…500 Hz |
| Certifications | UL, CE, CSA, KC |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | 90 × 40 × 87 mm |
| Actual Weight | Approx. 0.13 kg |
| Typical Applications | Analog Signal Monitoring, Process Control, Sensor Interface, Industrial Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 2085-IF4 used for?
A1: The 2085-IF4 is a Micro800 analog input expansion module used to add analog signal monitoring capability to Micro850 and Micro870 PLC systems.
Q2: How many analog inputs does the 2085-IF4 provide?
A2: The module provides 4 analog input channels.
Q3: What signal types are supported by the 2085-IF4?
A3: The module supports voltage inputs (0…10V DC, ±10V DC) and current inputs (0…20 mA, 4…20 mA).
Q4: Which controllers are compatible with the 2085-IF4?
A4: The module is compatible with Allen-Bradley Micro850 and Micro870 controllers.
Q5: What is the input resolution of the 2085-IF4?
A5: The module provides 15-bit analog input resolution for accurate process signal measurement.
Q6: What are the actual dimensions of the 2085-IF4?
A6: The module dimensions are approximately 90 × 40 × 87 mm (H × W × D).
Q7: What is the actual weight of the 2085-IF4?
A7: The approximate weight is 0.13 kg.
Q8: What are common applications for the 2085-IF4?
A8: Common applications include process monitoring, pressure sensors, flow transmitters, temperature transmitters, and industrial analog signal acquisition systems.
