Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix Cable System |

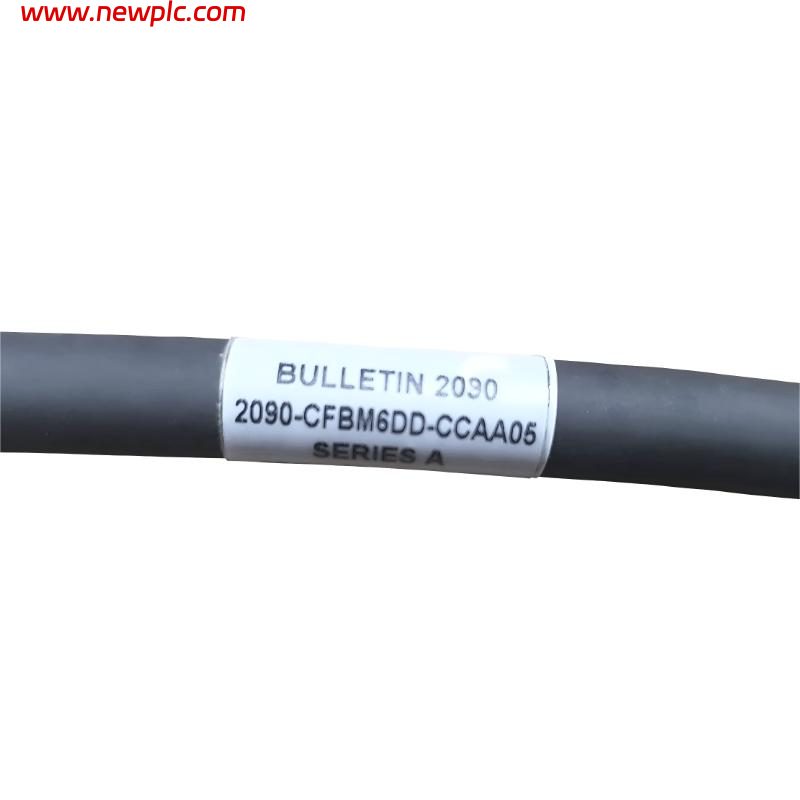

| Model Number | 2090-CFBM6DD-CCAA05 |

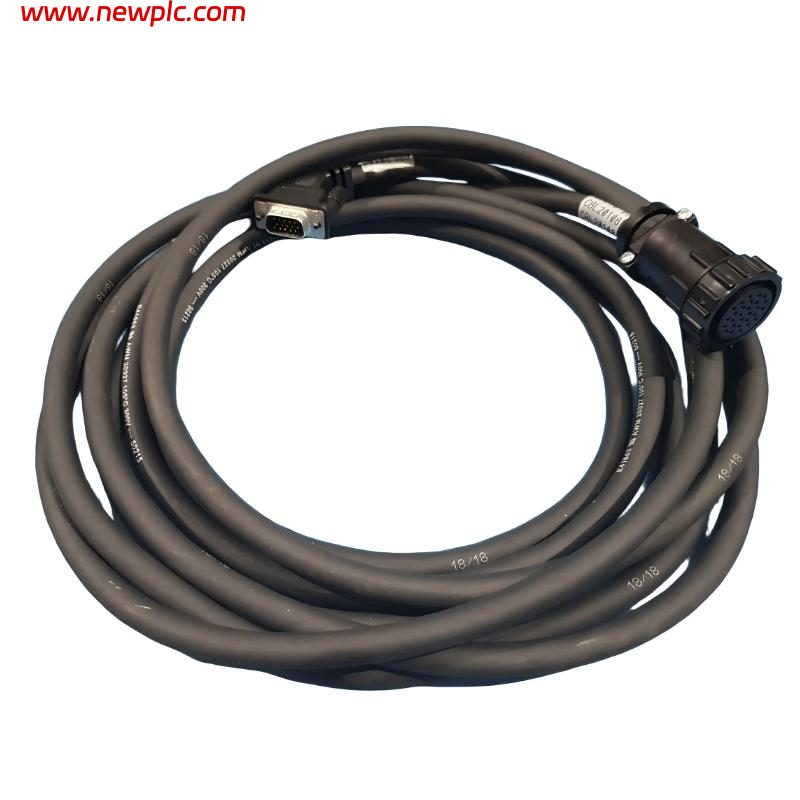

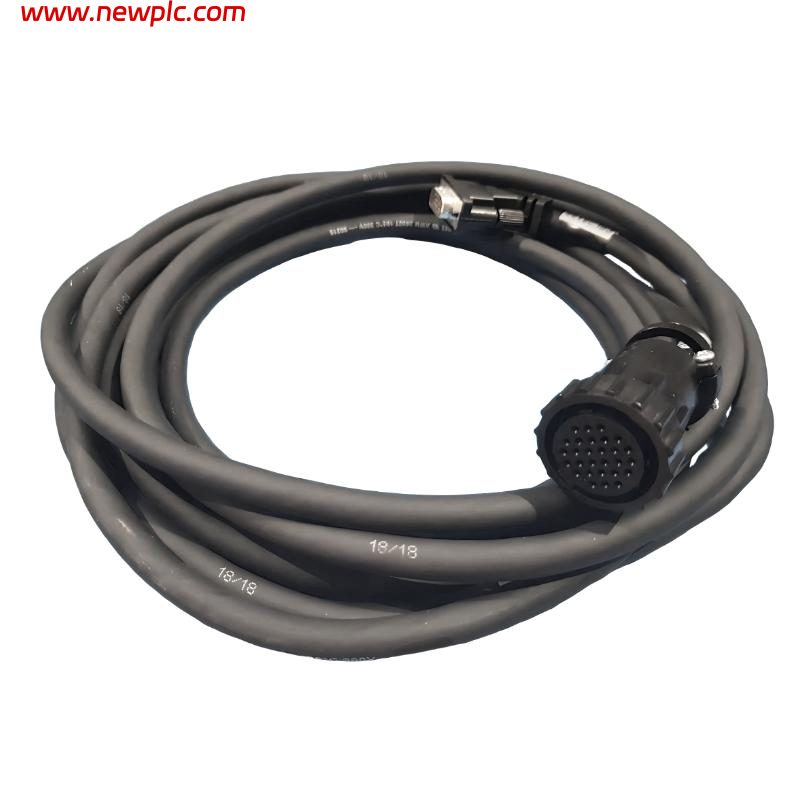

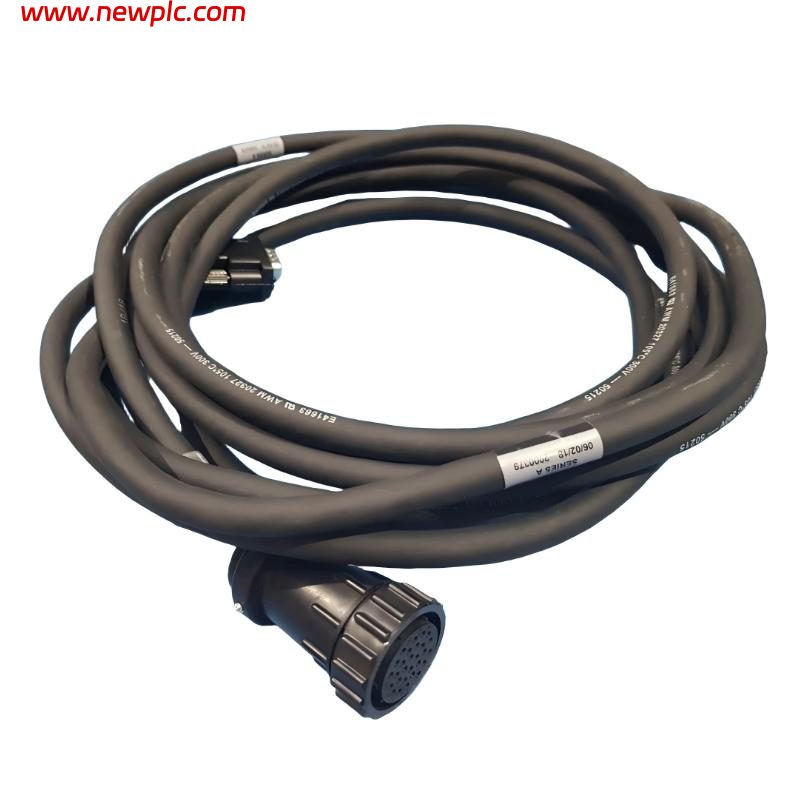

| Product Type | Feedback Cable |
| Cable Function | Motor Feedback / Encoder Cable |
| Cable Length | 5 m |
| Compatible Servo Systems | Kinetix Servo Drives and Motors |
| Compatible Motor Families | MPL, MPM, MP-Series, VPL (model dependent) |
| Feedback Type Supported | Digital Feedback |
| Connector End 1 | Drive-side Connector |
| Connector End 2 | Motor-side Circular Connector |
| Cable Construction | Continuous Flex Rated |
| Conductor Type | Industrial Shielded Conductors |
| Shielding | Overall Shielded |
| Wire Gauge | 26 AWG (typical feedback conductors) |
| Jacket Material | Industrial PVC / TPE |
| Cable Color | Orange |
| Flex Rating | Continuous Motion / Flex Applications |
| Minimum Bend Radius | Approx. 12× Cable Diameter |
| Voltage Rating | 300V |
| Operating Temperature | -20°C to 80°C |
| Storage Temperature | -40°C to 85°C |
| Protection Features | Noise Immunity / EMI Shielding |
| Certifications | UL, CE, CSA |
| Lifecycle Status | Active |
| Actual Cable Diameter | Approx. 11 mm |
| Actual Weight | Approx. 0.9 kg |
| Typical Applications | Servo Motor Feedback, Motion Control Systems, Packaging Machines, Robotics |
FAQ
FAQ
Q1: What is the Allen-Bradley 2090-CFBM6DD-CCAA05 used for?
A1: The 2090-CFBM6DD-CCAA05 is a servo motor feedback cable used to connect Kinetix servo drives with compatible Allen-Bradley servo motors for encoder and feedback communication.
Q2: What is the cable length of the 2090-CFBM6DD-CCAA05?
A2: The cable length is 5 meters.
Q3: Is the 2090-CFBM6DD-CCAA05 suitable for continuous flex applications?
A3: Yes. The cable is designed for continuous flex and dynamic motion applications commonly found in servo systems and robotics.
Q4: Which Allen-Bradley servo systems are compatible with this cable?
A4: The cable is commonly used with Kinetix servo drives and compatible MPL, MPM, MP-Series, and VPL servo motors depending on connector configuration.
Q5: Does the cable include shielding?
A5: Yes. The cable includes overall shielding to improve EMI resistance and signal integrity in industrial environments.
Q6: What is the actual cable diameter of the 2090-CFBM6DD-CCAA05?
A6: The cable diameter is approximately 11 mm.
Q7: What is the actual weight of the 2090-CFBM6DD-CCAA05?
A7: The approximate weight is 0.9 kg.
Q8: What are common applications for the 2090-CFBM6DD-CCAA05?
A8: Common applications include industrial motion control systems, robotics, CNC equipment, packaging machinery, and automated production systems.
