Technical Specifications
| Parameter | Description |
|---|---|

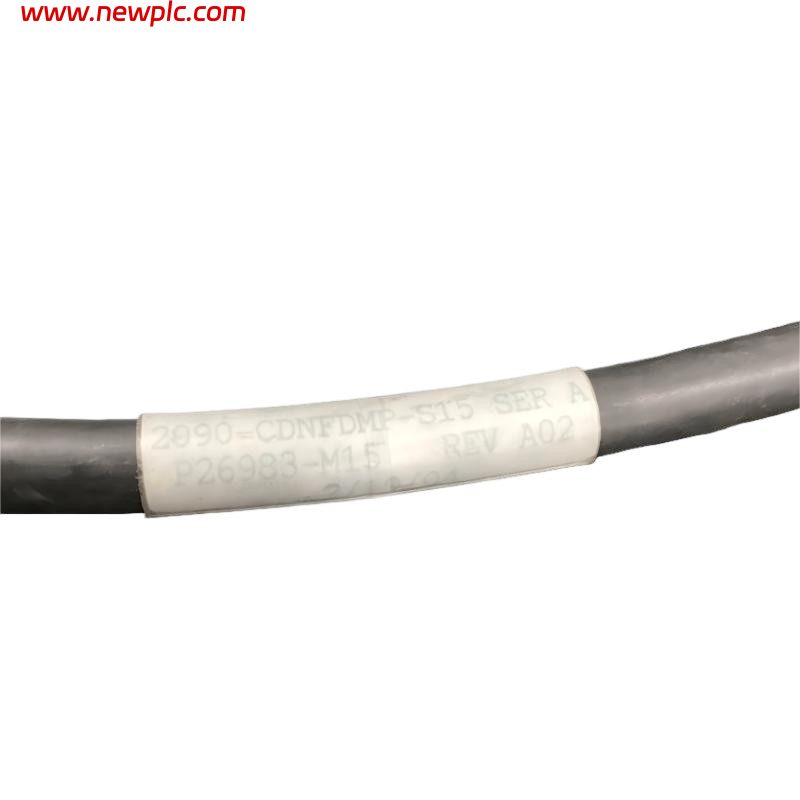

| Product Model | Allen-Bradley 2090-CDNFDMP-S15 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | MP-Series Servo Cable |
| Product Type | Resolver Feedback Cable |
| Function | Provides resolver feedback communication between MP-Series servo motors and 1394 motion control systems |
| Application | Servo motion control, CNC machinery, packaging equipment, material handling systems, and industrial automation |
| Cable Purpose | Motor resolver feedback transmission |
| Compatible Motor Series | Allen-Bradley MP-Series Servo Motors |
| Compatible Drive | 1394 Motion Control System |

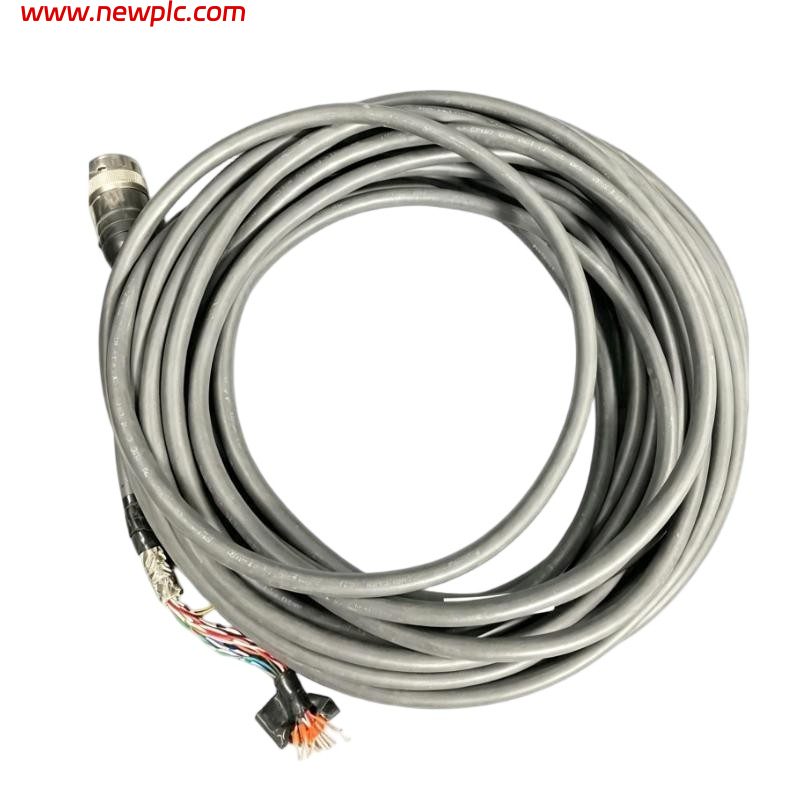

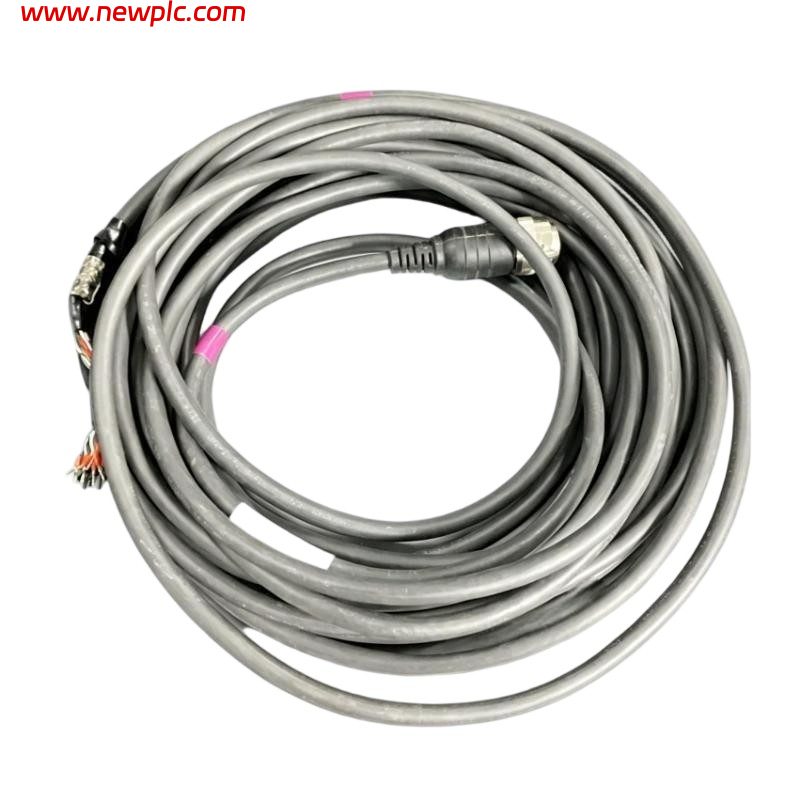

| Connector – Motor End | Type E2 Bayonet Connector |
| Connector – Drive End | Flying Leads (No Connector) |
| Cable Length | 15 m (49.2 ft) |
| Rated Voltage | 300 VAC |
| Flex Rating | Non-flex |
| Cable Jacket Diameter | Approx. 9.65 mm |
| Minimum Bend Radius | 96.52 mm |
| Shielding | Industrial shielded feedback cable |
| Installation | Fixed installation |
| Operating Environment | Industrial indoor applications |
| Lifecycle Status | Discontinued |
| Dimensions | Cable length: 15 m; Jacket diameter: 9.65 mm |
| Weight | Approx. 2.27 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 2090-CDNFDMP-S15 used for?
A: The 2090-CDNFDMP-S15 is used to transmit resolver feedback signals between Allen-Bradley MP-Series servo motors and 1394 motion control systems, ensuring accurate motor position and speed feedback.
Q2: Which motors and drives are compatible with the 2090-CDNFDMP-S15?
A: It is designed for MP-Series servo motors with a Type E2 bayonet connector and is intended for use with 1394 motion control systems.
Q3: What type of connectors does the cable use?
A: The motor end features a Type E2 bayonet connector, while the drive end is supplied with flying leads, allowing direct wiring to compatible motion controllers.
Q4: Is the 2090-CDNFDMP-S15 suitable for continuous flex applications?
A: No. This model is a non-flex cable and is intended for fixed installations where continuous cable movement is not required.
Q5: What is the rated voltage of the 2090-CDNFDMP-S15?
A: The cable has a 300 V voltage rating, making it suitable for industrial servo feedback applications within the specified system requirements.
Q6: What are the dimensions and weight of the 2090-CDNFDMP-S15?
A: The cable has a 15 m overall length, an approximate 9.65 mm jacket diameter, a minimum bend radius of 96.52 mm, and an approximate weight of 2.27 kg.
Q7: Is the 2090-CDNFDMP-S15 still available?
A: No. Rockwell Automation has discontinued the 2090-CDNFDMP-S15. It was officially withdrawn from sale in October 2016, although surplus and refurbished units may still be available through aftermarket suppliers.
Q8: What should be checked before installing the 2090-CDNFDMP-S15?
A: Verify the motor model, connector type, cable length, routing path, bend radius, shielding integrity, and compatibility with the 1394 motion control system. Avoid excessive bending or mechanical stress during installation to maintain reliable feedback performance.
