Allen Bradley 2090-XXNPMF-16S15 Standard Motor Power Cable

FAQ

Q1: What is the Allen-Bradley 2090-XXNPMF-16S15 used for?
A: The 2090-XXNPMF-16S15 is used to connect Kinetix servo drives to compatible servo motors, providing motor power transmission for industrial motion control applications.

Q2: What type of cable is the 2090-XXNPMF-16S15?
A: It is a standard non-flex motor power cable with 16 AWG conductors, designed for permanent, fixed installations where continuous cable movement is not required.

Q3: What connectors are used on the 2090-XXNPMF-16S15?

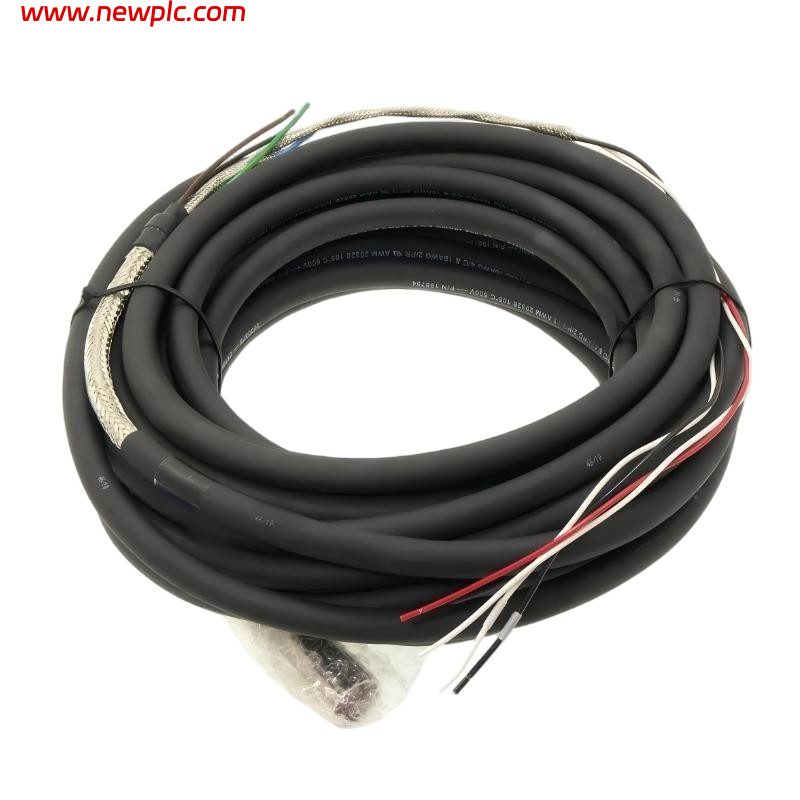

A: The motor end is equipped with a threaded DIN M23 Type 4 connector, while the drive end is supplied with flying leads for direct wiring to compatible Kinetix drives.

Q4: What is the voltage rating of the 2090-XXNPMF-16S15?
A: The cable is rated for 600 V, making it suitable for industrial servo motor power applications within Rockwell Automation Kinetix systems.

Q5: Does the 2090-XXNPMF-16S15 include shielding?

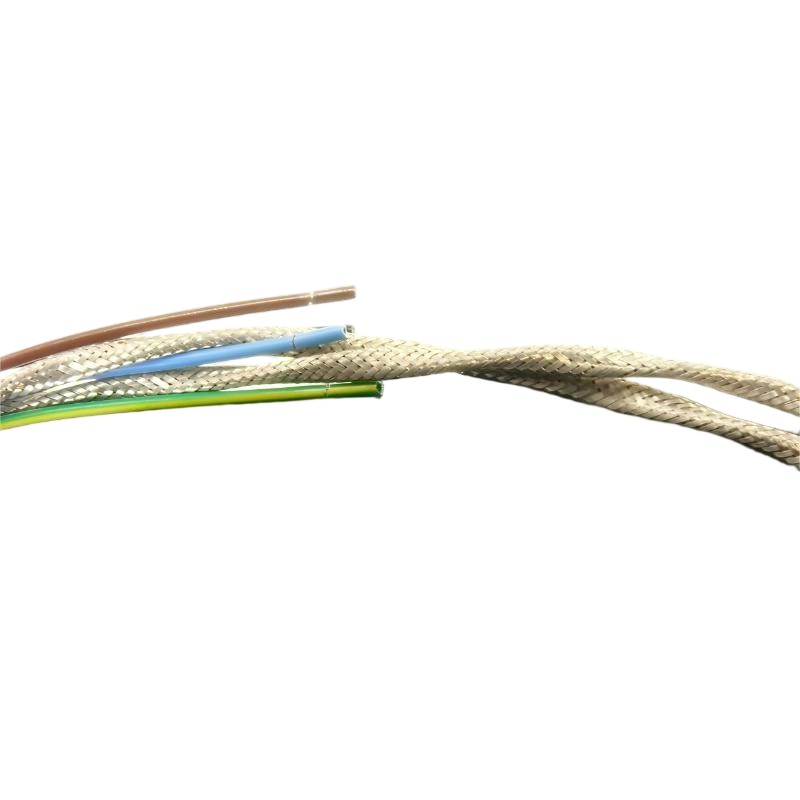

A: Yes. The cable features 360-degree shielding with a grounded connector backshell to reduce electromagnetic interference (EMI) and improve signal integrity in industrial environments.

Q6: What are the dimensions and weight of the 2090-XXNPMF-16S15?

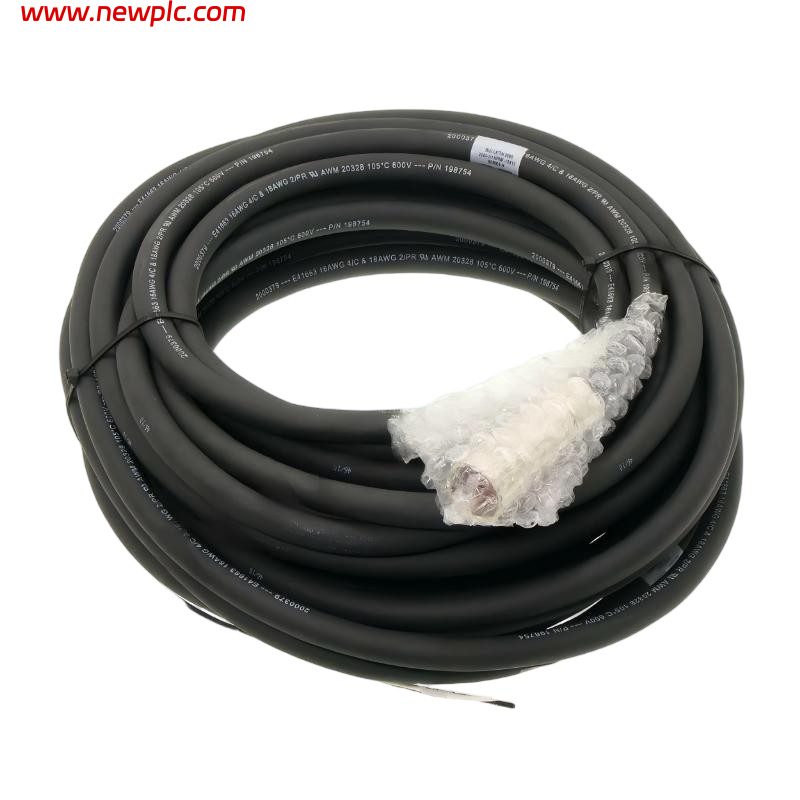

A: The cable has an overall length of 15 m (49.2 ft) with 16 AWG conductors, and the approximate weight is 3.2 kg. Actual shipping weight may vary depending on packaging.

Q7: Which servo systems are compatible with the 2090-XXNPMF-16S15?
A: The cable is designed for Allen-Bradley Kinetix servo systems using threaded DIN M23 motor connectors, providing reliable power connections between compatible drives and motors.

Q8: What should be checked before installing the 2090-XXNPMF-16S15?
A: Verify the cable length, conductor size, connector type, drive and motor compatibility, routing path, grounding, minimum bend radius, and installation environment. Ensure the cable is not subjected to continuous flexing, as it is intended for fixed installations.
