Technical Specifications
| Parameter | Description |
|---|---|

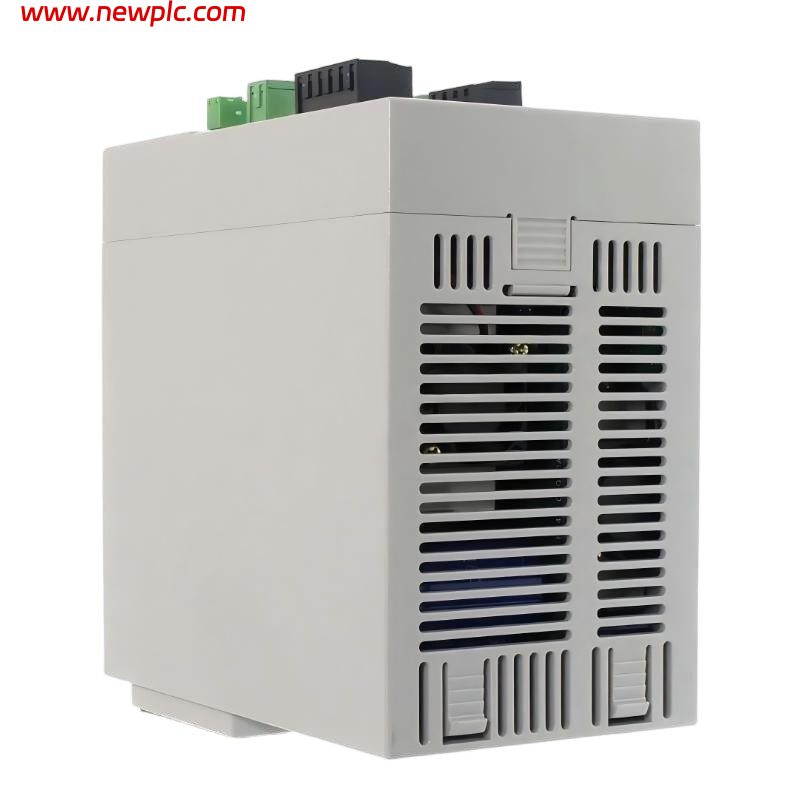

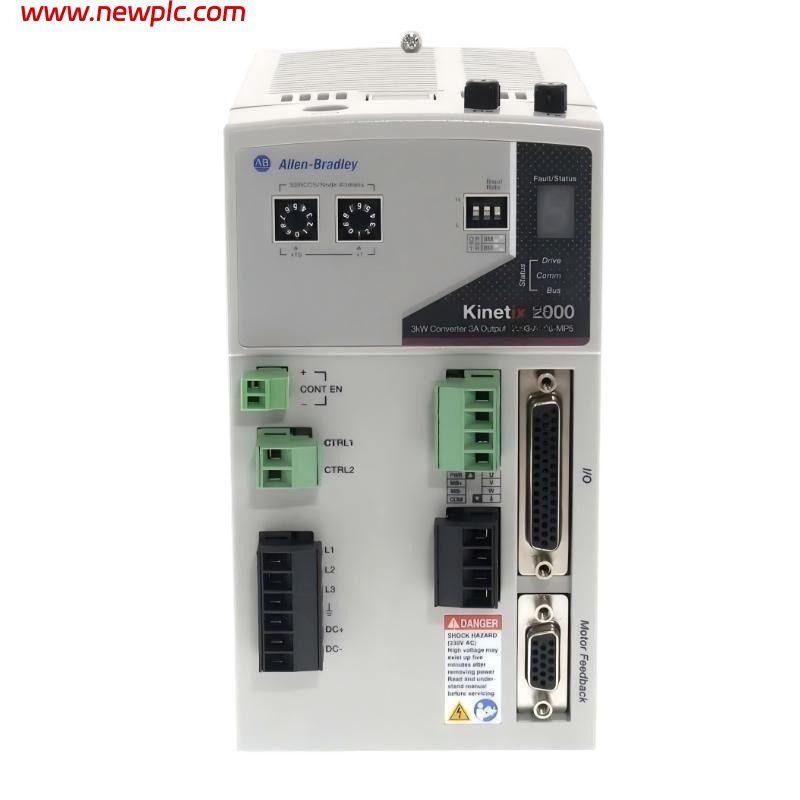

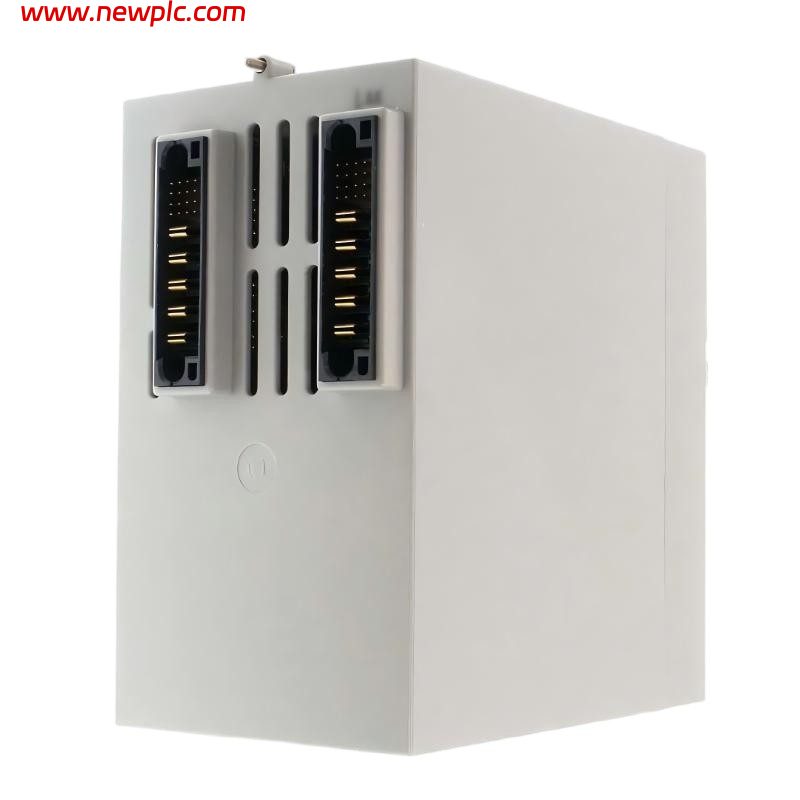

| Product Model | Allen-Bradley 2093-AC05-MP5 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | Kinetix® 2000 (Bulletin 2093) |
| Product Type | Integrated Axis Module (IAM) |
| Function | Provides integrated servo axis control, power conversion, and motion control for Kinetix 2000 multi-axis servo systems |
| Application | CNC machinery, packaging equipment, robotics, material handling, printing, and industrial automation |
| Control Interface | SERCOS Interface |
| Continuous Output Power | 0.9 kW |
| Bus Power Rating | 3 kW |
| Input Voltage | 230 VAC, Single-phase or Three-phase |
| Input Voltage Range | 170–264 VAC |
| Input Frequency | 47–63 Hz (50/60 Hz nominal) |
| Continuous Output Current | 3.0 A RMS |
| Peak Output Current | 9.0 A RMS (12.7 A peak) |
| PWM Frequency | 8 kHz |
| Bus Power (Peak) | 6 kW |
| Internal Shunt Power | 15 W continuous, 3000 W peak |
| Efficiency | Up to 95% |
| Mounting Type | Panel mounting |
| Cooling Method | Natural convection |
| Operating Altitude | Up to 1,000 m without derating |
| Lifecycle Status | Discontinued (Recommended replacement: 2198-C1007-ERS) |
| Country of Origin | Republic of Korea |
| Dimensions | Approx. 256 × 237 × 163 mm |
| Weight | Approx. 1.86 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 2093-AC05-MP5 used for?
A: The 2093-AC05-MP5 is an integrated axis module used in Kinetix 2000 multi-axis servo systems to provide servo drive functionality, DC bus power distribution, and precise motion control for industrial automation equipment.
Q2: What is the continuous output power of the 2093-AC05-MP5?
A: The module delivers 0.9 kW continuous servo output power while operating from a 3 kW integrated DC bus power module, making it suitable for low- to medium-power servo applications.
Q3: What input power does the 2093-AC05-MP5 require?
A: It accepts 170–264 VAC, either single-phase or three-phase, with a nominal operating voltage of 230 VAC and an input frequency of 50/60 Hz.
Q4: Which communication interface does the 2093-AC05-MP5 support?
A: The module uses the SERCOS interface, providing deterministic, high-speed communication between the motion controller and servo axes for synchronized machine operation.
Q5: What are the current ratings of the 2093-AC05-MP5?
A: The module provides 3.0 A RMS continuous output current and 9.0 A RMS peak output current (12.7 A peak), supporting demanding acceleration and deceleration requirements.
Q6: What are the dimensions and weight of the 2093-AC05-MP5?
A: The module measures approximately 256 × 237 × 163 mm and weighs approximately 1.86 kg, allowing installation in standard industrial control cabinets.
Q7: Is the 2093-AC05-MP5 still available?
A: No. Rockwell Automation officially discontinued the 2093-AC05-MP5 on December 31, 2022. The recommended engineering replacement is the 2198-C1007-ERS.
Q8: What should be checked before installing the 2093-AC05-MP5?
A: Before installation, verify the input voltage, controller compatibility, SERCOS network configuration, motor sizing, grounding, cabinet ventilation, and wiring integrity. After installation, confirm communication, DC bus status, and servo tuning before commissioning the system.
