Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 300 |

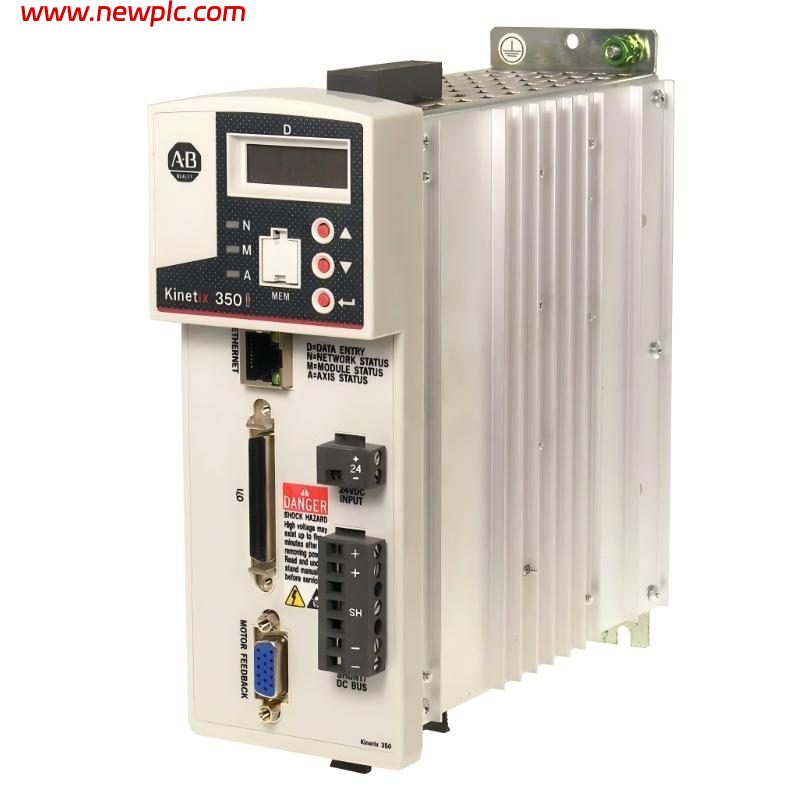

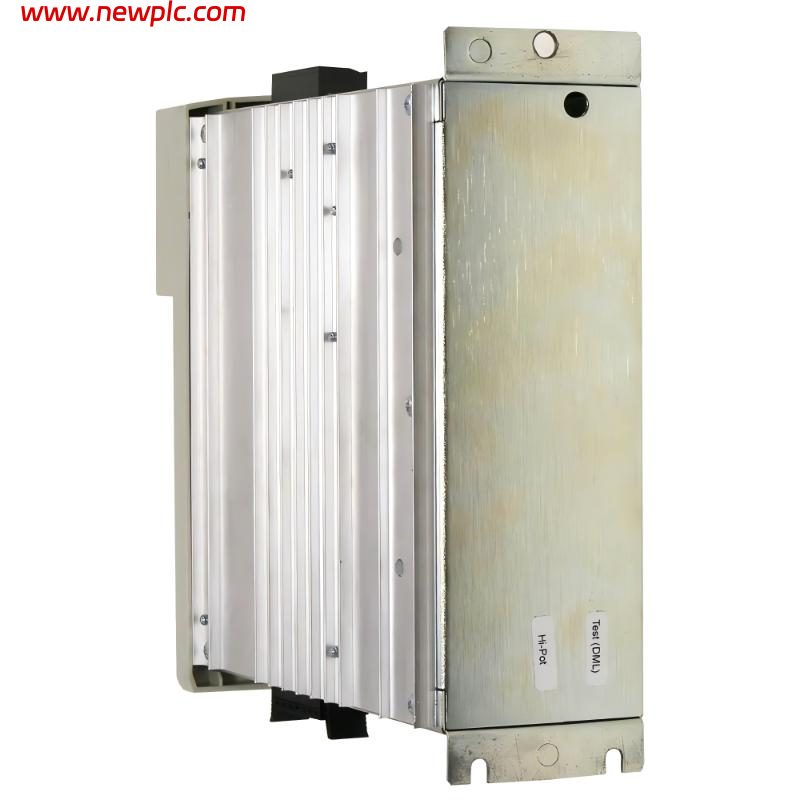

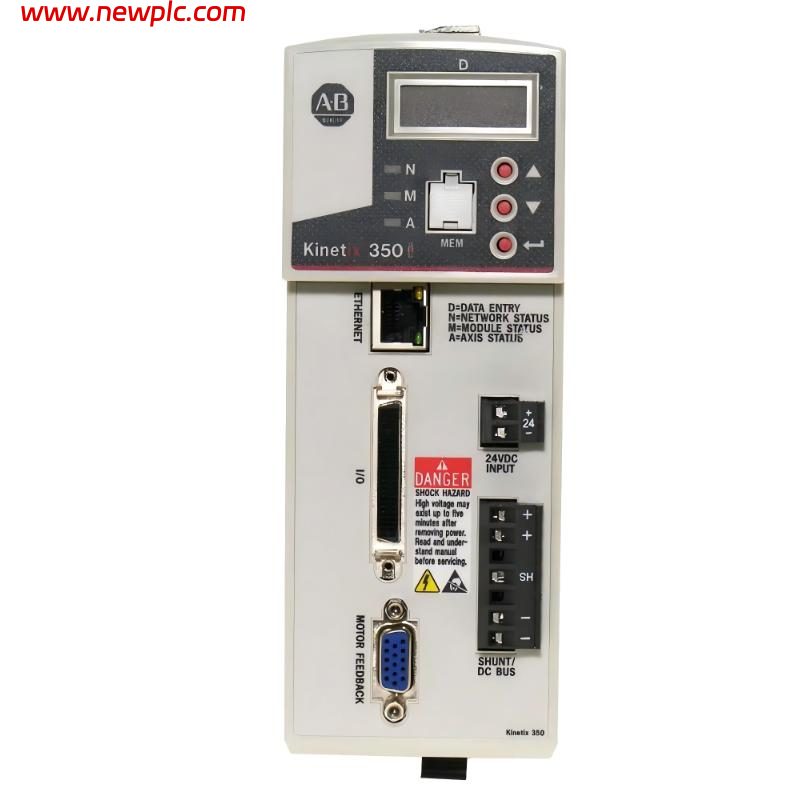

| Model Number | 2097-V33PR5 |
| Product Type | EtherNet/IP Indexing Servo Drive |
| Drive Function | Single-axis Servo Drive |
| Input Voltage | 80…264V AC |
| Nominal Voltage Class | 240V AC |
| Input Phase | 1-Phase or 3-Phase |
| Input Frequency | 48…62 Hz |
| Continuous Output Current | 9.5 A |
| Continuous Output Power | 2.0 kW |
| Peak Output Current | 28.6 A (0-pk) |
| Communication Protocol | EtherNet/IP |
| Motion Control Type | Indexing Motion |
| Safe Torque Off (STO) | Yes |
| Compatible Motors | MP-Series, TL-Series Servo Motors |
| Integrated Ethernet Port | RJ45 EtherNet/IP |
| Control Modes | Indexing, Analog Velocity/Torque, Pulse Train |
| Dynamic Brake Resistor | Internal Shunt Resistor Included |
| Mounting Type | Panel Mount |
| Cooling Method | Forced Air Cooling |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, cUL, KC, ODVA EtherNet/IP |
| Lifecycle Status | Discontinued |
| Recommended Replacement | 2198-E1015-ERS |
| Actual Dimensions (H × W × D) | Approx. 190 × 93 × 185 mm |
| Actual Weight | Approx. 2.0 kg |
| Typical Applications | Packaging Machines, Servo Conveyors, Material Handling, Positioning Systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 2097-V33PR5 used for?
A1: The 2097-V33PR5 is a Kinetix 300 EtherNet/IP indexing servo drive used for precise single-axis motion control in industrial automation systems.
Q2: What is the output power rating of the 2097-V33PR5?
A2: The drive provides 2.0 kW continuous output power with a continuous output current of 9.5 A.
Q3: What input voltage does the 2097-V33PR5 require?
A3: The servo drive operates on 80…264V AC input power and supports both single-phase and three-phase input.
Q4: Does the 2097-V33PR5 support EtherNet/IP communication?
A4: Yes. The drive includes an integrated EtherNet/IP communication port for Logix and industrial Ethernet motion control systems.
Q5: Does the 2097-V33PR5 include Safe Torque Off (STO)?
A5: Yes. The drive includes integrated Safe Torque Off functionality for machine safety applications.
Q6: What are the actual dimensions and weight of the 2097-V33PR5?
A6: The approximate dimensions are 190 × 93 × 185 mm (H × W × D), and the approximate weight is approximately 2.0 kg.
Q7: Is the 2097-V33PR5 still manufactured?
A7: No. The Kinetix 300 series has been discontinued by Rockwell Automation, with the recommended replacement being the Kinetix 5100 or 5500 series depending on the application.
Q8: What are common applications for the 2097-V33PR5?
A8: Common applications include indexing systems, packaging machinery, material handling systems, servo conveyors, and automated positioning equipment.
