Technical Specifications
| Parameter | Specification |
|---|---|

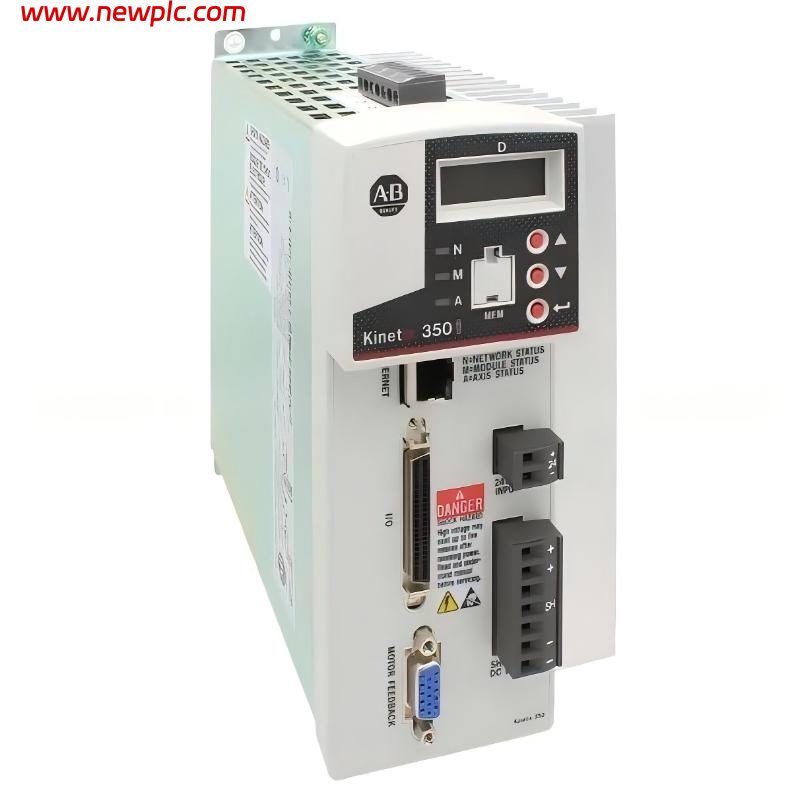

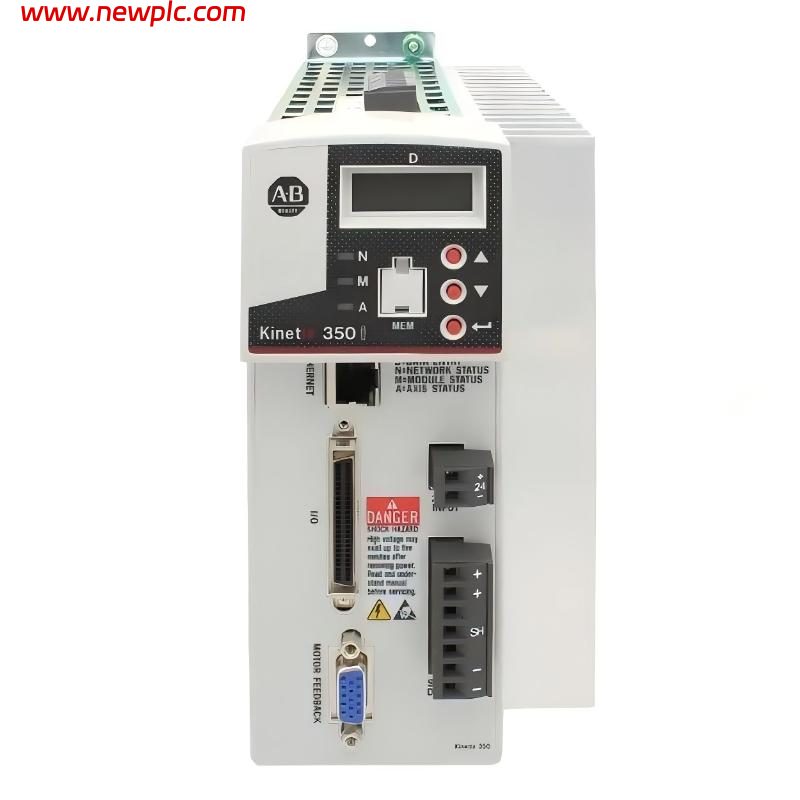

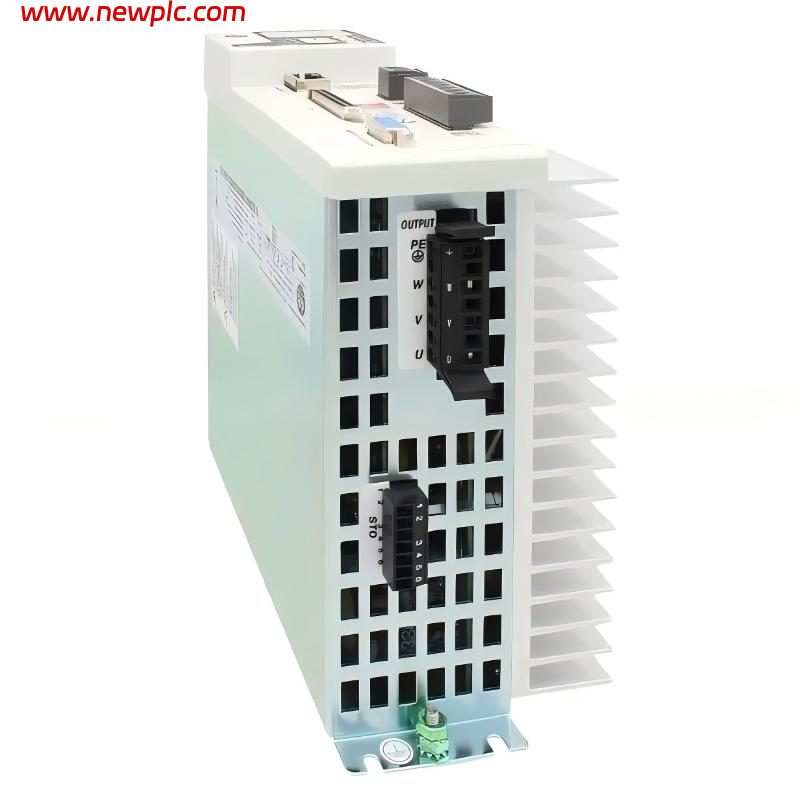

| Product Name | Allen-Bradley Kinetix 350 Single-Axis EtherNet/IP Servo Drive |
| Model Number | 2097-V34PR5-LM |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 350 |
| Product Type | Servo Drive |
| Drive Type | Single-Axis EtherNet/IP Servo Drive |
| Input Voltage | 320–528V AC Three-Phase (480V nominal) |
| Input Frequency | 48–62 Hz |
| Continuous Output Power | 2.0 kW |
| Continuous Output Current (RMS) | 4.0 A |
| Peak Output Current (RMS) | 12.0 A |
| Peak Output Current (0-pk) | 17.0 A |
| Main AC Input Current (RMS) | 5.5 A |
| Communication Protocol | EtherNet/IP |
| Safe Torque-Off (STO) | Supported |
| Control Backup Input Voltage | 20–26V DC |
| Control Backup Current | 500 mA nominal |
| Integrated AC Line Filter | No |
| Cooling Method | Natural / Forced Convection |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 85°C |
| Relative Humidity | Up to 95% non-condensing |
| Certifications | CE, UL, C-Tick, KC, ODVA EtherNet/IP |
| Dimensions | Approx. 238 × 185 × 94 mm |
| Weight | Approx. 2.0 kg |
| Lifecycle Status | Discontinued |
| Recommended Replacement | 2198-C4015-ERS |
| Application | Industrial servo motion control and machine automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 2097-V34PR5-LM used for?
The 2097-V34PR5-LM is a Kinetix 350 single-axis EtherNet/IP servo drive used for precision motion control in industrial automation systems such as conveyors, packaging machines, indexing systems, and robotics.
Q2: What is the power rating of the 2097-V34PR5-LM?
This servo drive provides a continuous output power rating of 2.0 kW with a continuous RMS output current of 4.0 A.
Q3: What input voltage does the 2097-V34PR5-LM require?
The drive operates from a 320–528V AC three-phase power supply, with 480V AC as the nominal input voltage.
Q4: Does the 2097-V34PR5-LM support EtherNet/IP communication?
Yes, the drive includes integrated EtherNet/IP communication for seamless integration with CompactLogix and ControlLogix systems.
Q5: Is Safe Torque-Off (STO) available on the 2097-V34PR5-LM?
Yes, the drive includes integrated Safe Torque-Off functionality to support machine safety applications.
Q6: Is the 2097-V34PR5-LM still available from Rockwell Automation?
No, Rockwell Automation discontinued the 2097-V34PR5-LM on August 4, 2023. The recommended replacement is the 2198-C4015-ERS servo drive.
Q7: What are the dimensions and weight of the 2097-V34PR5-LM?
The approximate dimensions are 238 × 185 × 94 mm, and the unit weighs about 2.0 kg.
Q8: What motors are compatible with the 2097-V34PR5-LM?
The drive is commonly used with Allen-Bradley MPL and MP-Series servo motors designed for Kinetix motion systems.
