Technical Specifications
| Parameter | Specification |
|---|---|

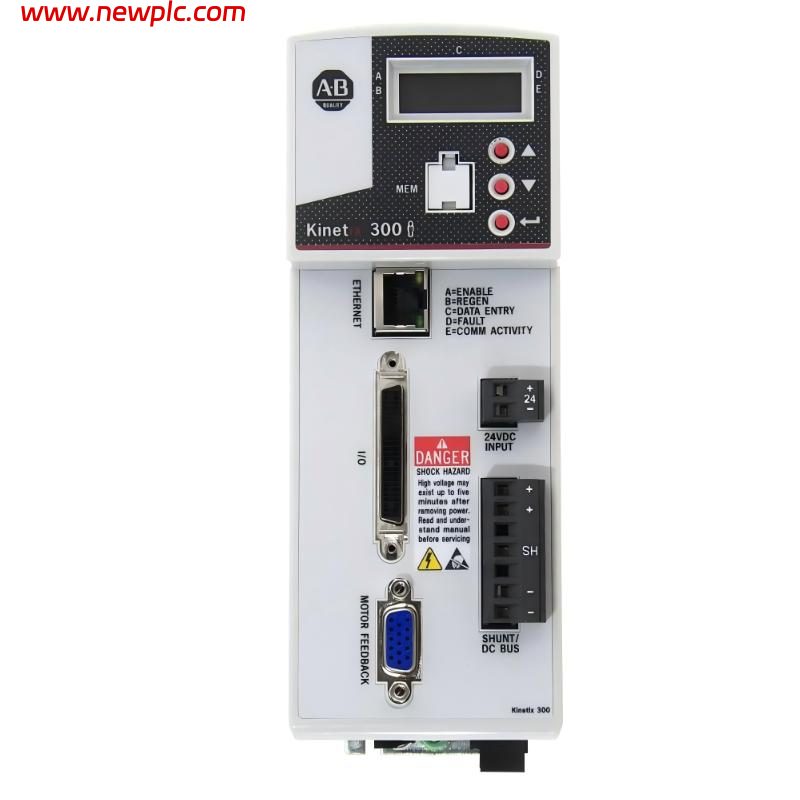

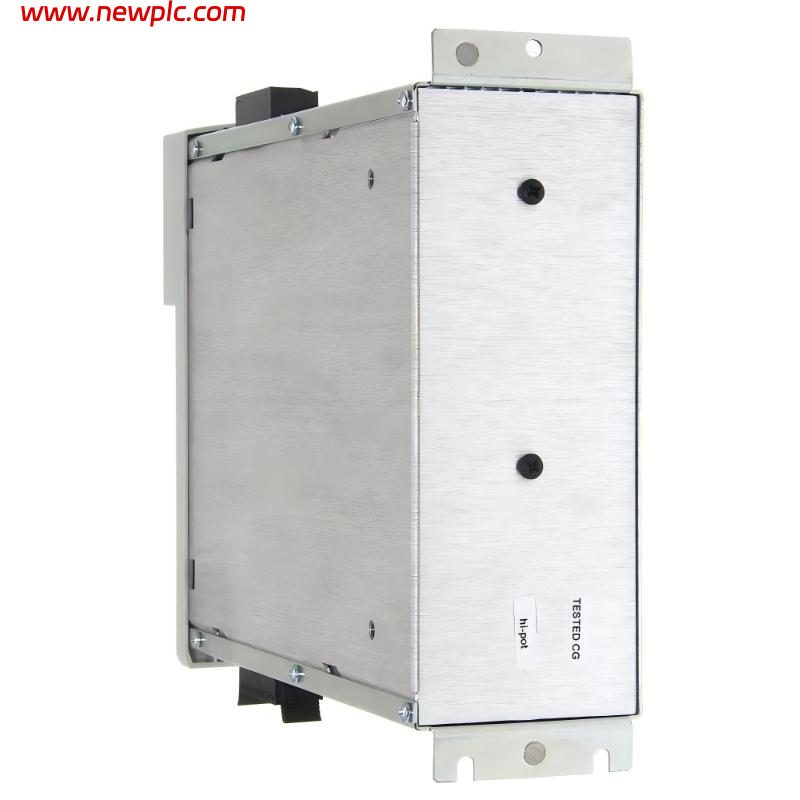

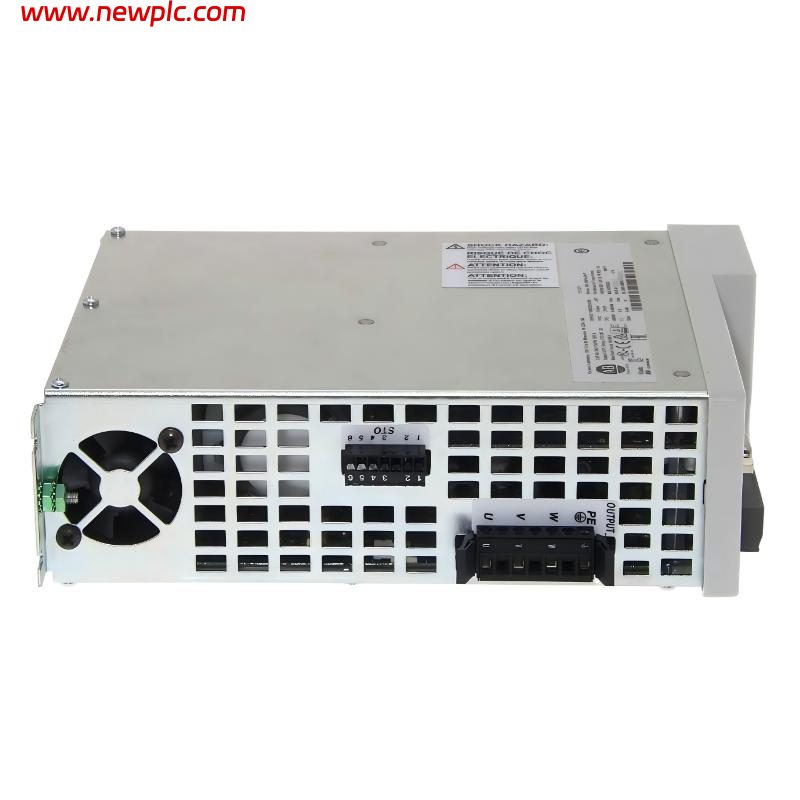

| Product Name | Allen-Bradley Kinetix 350 Single-Axis EtherNet/IP Servo Drive |
| Model Number | 2097-V34PR6 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 350 |
| Product Type | Servo Drive |
| Drive Type | Single-Axis EtherNet/IP Servo Drive |
| Input Voltage | 320–528V AC Three-Phase |
| Nominal Input Voltage | 480V AC |
| Input Frequency | 48–62 Hz |
| Continuous Output Power | 3.0 kW |
| Continuous Output Current (RMS) | 6.0 A |
| Peak Output Current (RMS) | 18.0 A |
| Peak Output Current (0-pk) | 25.5 A |
| Main AC Input Current | Approx. 8.0 A |
| Communication Protocol | EtherNet/IP |
| Safe Torque-Off (STO) | Integrated |
| Control Power Input | 20–26V DC |
| Control Backup Current | Approx. 500 mA |
| Integrated AC Line Filter | No |
| Cooling Method | Natural / Forced Convection |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 85°C |
| Relative Humidity | Up to 95% non-condensing |
| Certifications | CE, UL, KC, C-Tick, ODVA |
| Dimensions | Approx. 238 × 185 × 94 mm |
| Weight | Approx. 2.1 kg |
| Lifecycle Status | Discontinued |
| Recommended Replacement | 2198-C4015-ERS |
| Application | Precision servo motion control systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 2097-V34PR6 used for?
The 2097-V34PR6 is a Kinetix 350 EtherNet/IP servo drive designed for high-performance industrial motion control applications such as packaging machines, indexing tables, conveyors, and automated assembly systems.
Q2: What is the power output of the 2097-V34PR6?
The drive delivers 3.0 kW continuous output power with a continuous RMS output current of 6.0 A.
Q3: What input voltage is required for the 2097-V34PR6?
It operates on a 320–528V AC three-phase power supply, with 480V AC as the nominal operating voltage.
Q4: Does the 2097-V34PR6 support EtherNet/IP communication?
Yes, it includes integrated EtherNet/IP networking for direct integration with Logix controllers and Studio 5000 environments.
Q5: Is Safe Torque-Off (STO) included on the drive?
Yes, the drive includes integrated Safe Torque-Off functionality to support industrial machine safety requirements.
Q6: Is the 2097-V34PR6 still an active product?
No, the 2097-V34PR6 has been discontinued by Rockwell Automation, and newer Kinetix 5700 or Kinetix 5300 series products are commonly recommended as migration options.
Q7: What are the dimensions and weight of the 2097-V34PR6?
The approximate dimensions are 238 × 185 × 94 mm, and the drive weighs about 2.1 kg.
Q8: What motors are typically paired with the 2097-V34PR6?
The drive is commonly used with Allen-Bradley MPL and MP-Series servo motors designed for Kinetix motion control systems.
