Technical Specifications
| Parameter | Specification |
|---|---|

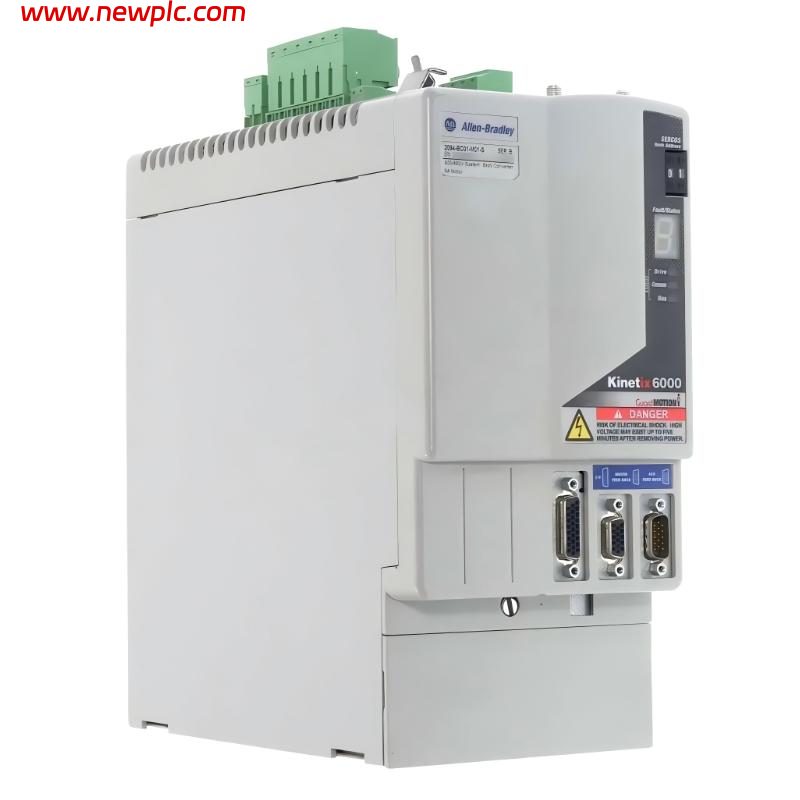

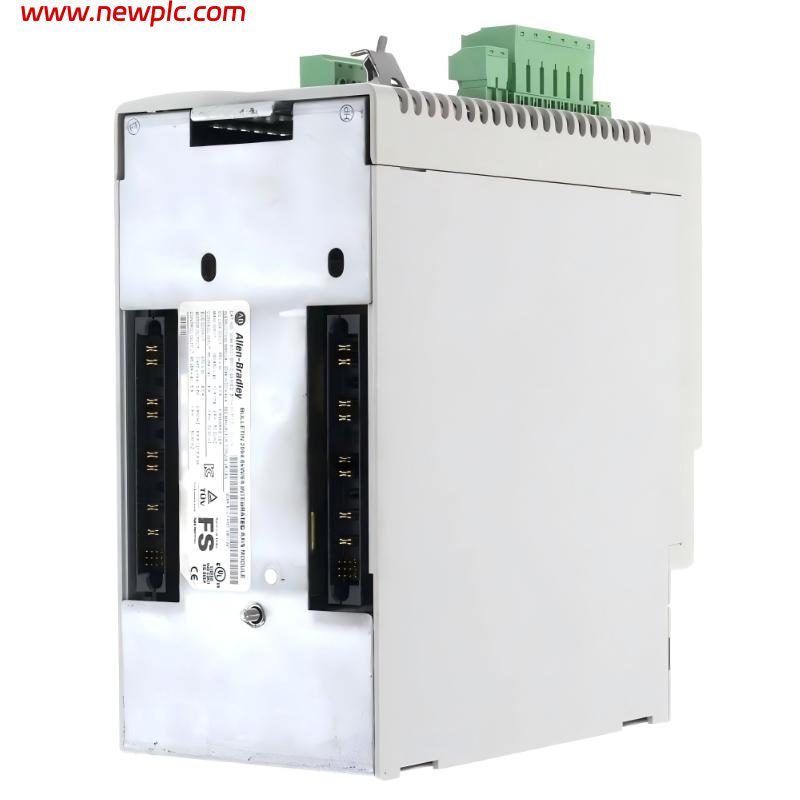

| Product Name | Allen-Bradley Integrated Axis Module |
| Model Number | 2094-BC01-M01-S |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 6000 |
| Product Type | Integrated Axis Module (IAM) |
| Drive Type | Servo Drive Power and Control Module |
| Input Voltage | 324–528V AC Three-Phase |
| Nominal Input Voltage | 400/480V AC |
| Input Frequency | 47–63 Hz |
| Continuous Output Current | 9.0 A RMS |
| Peak Output Current | 18.0 A RMS |
| Continuous Power Output | Approx. 4.5 kW |
| Bus Regulator | Integrated Shunt Regulator |
| Control Power Requirement | 20–32V DC |
| Communication Interface | SERCOS Interface |
| Compatible Motors | Allen-Bradley MP-Series Servo Motors |
| Safe Torque-Off | Supported through system architecture |

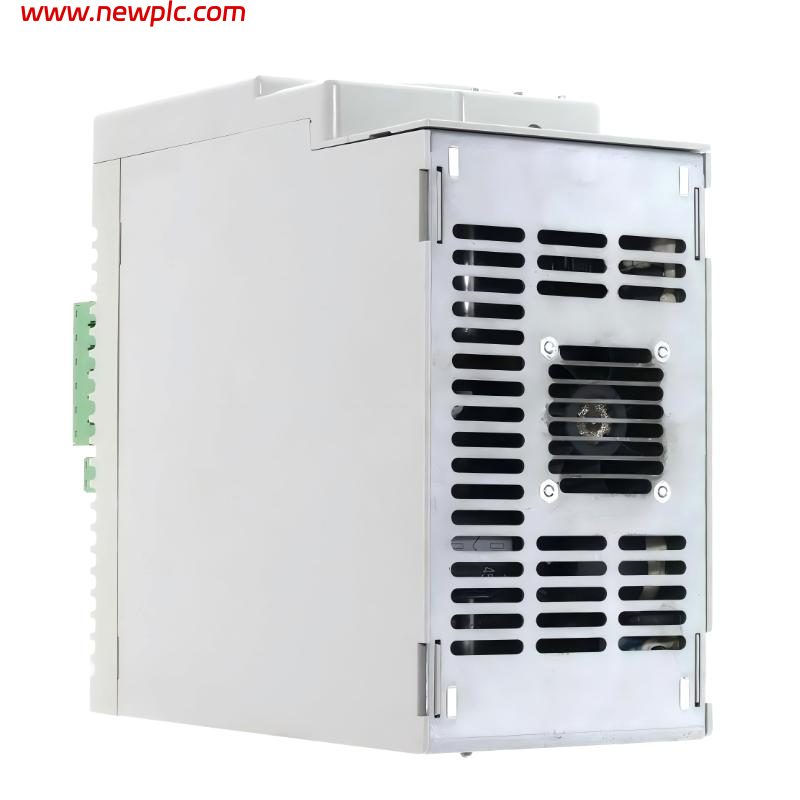

| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA |
| Dimensions | Approx. 362 × 50 × 219 mm |
| Weight | Approx. 3.2–3.6 kg |
| Application | Multi-axis industrial servo motion control |
FAQ
FAQ
Q1: What is the Allen-Bradley 2094-BC01-M01-S used for?
The 2094-BC01-M01-S is a Kinetix 6000 Integrated Axis Module used for controlling servo motors in high-performance industrial motion control systems.
Q2: What type of communication does the 2094-BC01-M01-S use?
The module communicates through the SERCOS interface, which is commonly used in Kinetix 6000 multi-axis motion systems.
Q3: What input voltage is required for the 2094-BC01-M01-S?
It operates on a 324–528V AC three-phase power supply, with 400/480V AC nominal input voltage.
Q4: What is the continuous output current of the module?
The module provides approximately 9.0 A RMS continuous output current.
Q5: Does the 2094-BC01-M01-S include a shunt regulator?
Yes, the module includes an integrated shunt regulator for regenerative energy management.
Q6: Which motors are compatible with the 2094-BC01-M01-S?
It is commonly paired with Allen-Bradley MP-Series servo motors used in Kinetix motion applications.
Q7: What are the dimensions and weight of the 2094-BC01-M01-S?
The approximate dimensions are 362 × 50 × 219 mm, and the module weighs about 3.2–3.6 kg.
Q8: What industrial applications commonly use the 2094-BC01-M01-S?
The module is widely used in packaging machinery, printing systems, converting equipment, material handling, robotics, and synchronized motion control systems.
