Technical Specifications
| Parameter | Specification |
|---|---|

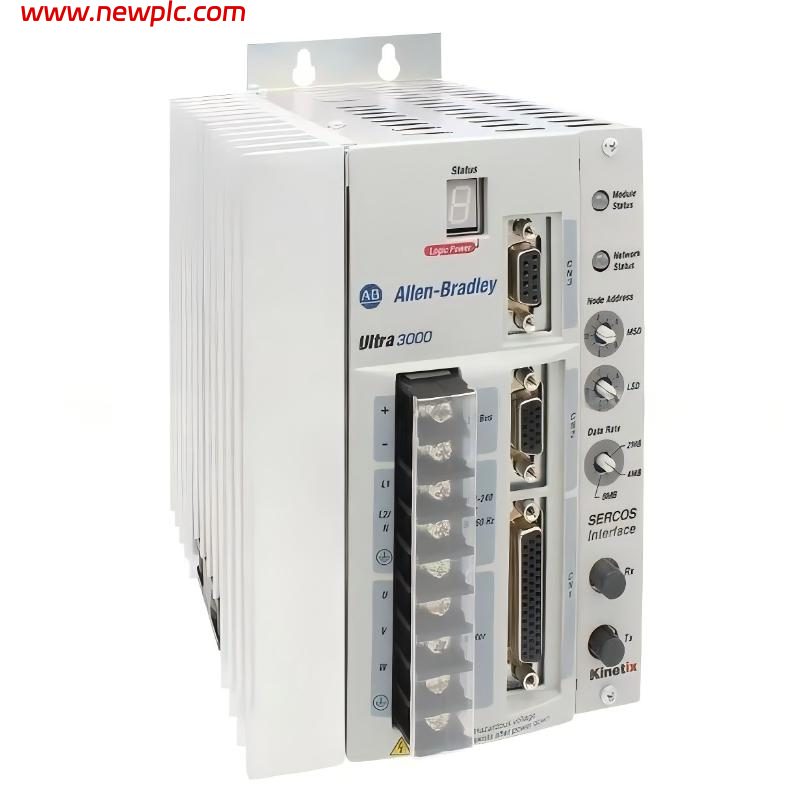

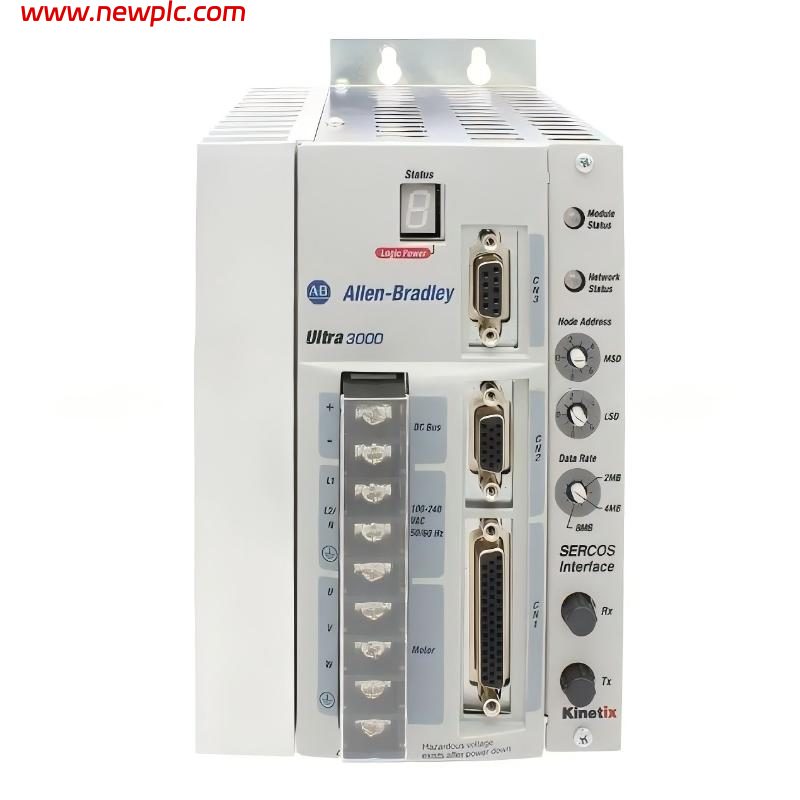

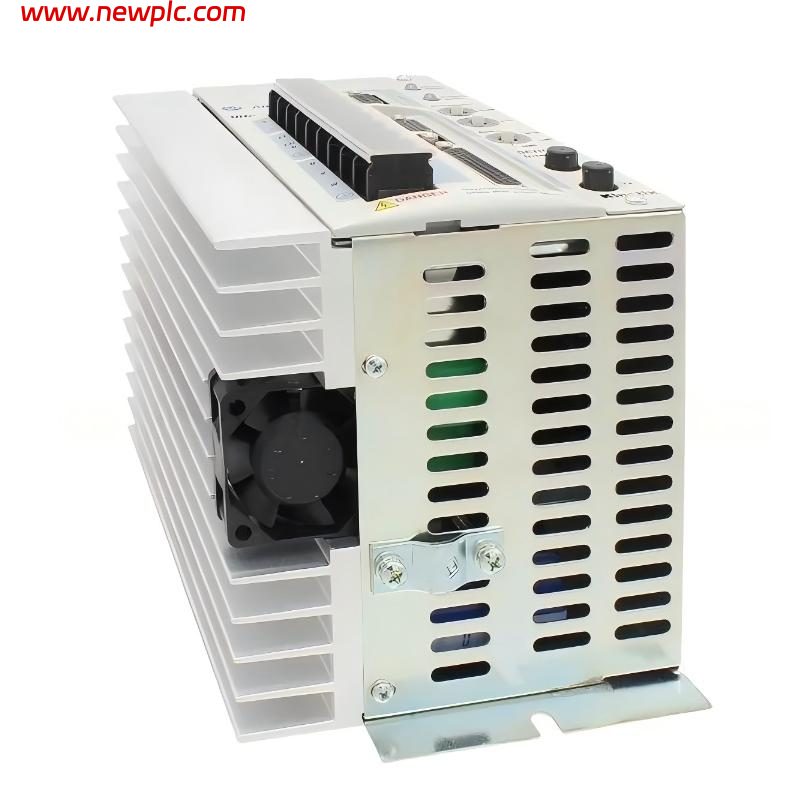

| Product Name | Allen-Bradley Ultra 3000 Digital Servo Drive |
| Model Number | 2098-DSD-020-SE |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Ultra 3000 |
| Product Type | Digital Servo Drive |
| Drive Type | Indexing Servo Drive |
| Input Voltage | 100–240V AC Single-Phase |
| Input Frequency | 47–63 Hz |
| Continuous Output Current | 10 A RMS |
| Peak Output Current | 20 A RMS |
| Continuous Power Output | Approx. 2.0 kW |
| Control Method | Digital Servo Control |
| Feedback Support | Incremental Encoder |
| Communication Interface | Serial Interface / Indexing Capability |
| Indexing Functions | Built-in indexing and point-to-point positioning |
| Internal Memory | Non-volatile parameter storage |
| Safe Torque-Off | Not integrated |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | Approx. 260 × 80 × 200 mm |
| Weight | Approx. 2.5–3.0 kg |
| Lifecycle Status | Discontinued |
| Application | Precision servo motor control and indexing systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 2098-DSD-020-SE used for?
The 2098-DSD-020-SE is an Ultra 3000 digital servo drive used for precision motion control, indexing, positioning, and automated machine applications.
Q2: What input voltage does the 2098-DSD-020-SE require?
The drive operates on a 100–240V AC single-phase power supply.
Q3: What is the output capability of the 2098-DSD-020-SE?
It provides 10 A RMS continuous output current and up to 20 A RMS peak output current.
Q4: Does the 2098-DSD-020-SE support indexing functions?
Yes, the drive includes built-in indexing capability for point-to-point motion control applications.
Q5: What type of motor feedback is supported?
The drive supports incremental encoder feedback for accurate motor positioning and speed control.
Q6: Is the 2098-DSD-020-SE still an active product?
No, the Ultra 3000 series has been discontinued by Rockwell Automation, with newer Kinetix servo systems recommended for migration.
Q7: What are the dimensions and weight of the 2098-DSD-020-SE?
The approximate dimensions are 260 × 80 × 200 mm, and the drive weighs about 2.5–3.0 kg.
Q8: What applications commonly use the 2098-DSD-020-SE?
It is commonly used in packaging equipment, labeling systems, indexing tables, conveyors, assembly machinery, and automated positioning systems.
